Removal Procedure

  1. Remove the inside door handle bezel. Refer to HANDLE BEZEL REPLACEMENT - INSIDE  .
  2. Remove the power door lock switch by releasing the lock tabs on the door handle bezel with a small flat bladed tool.

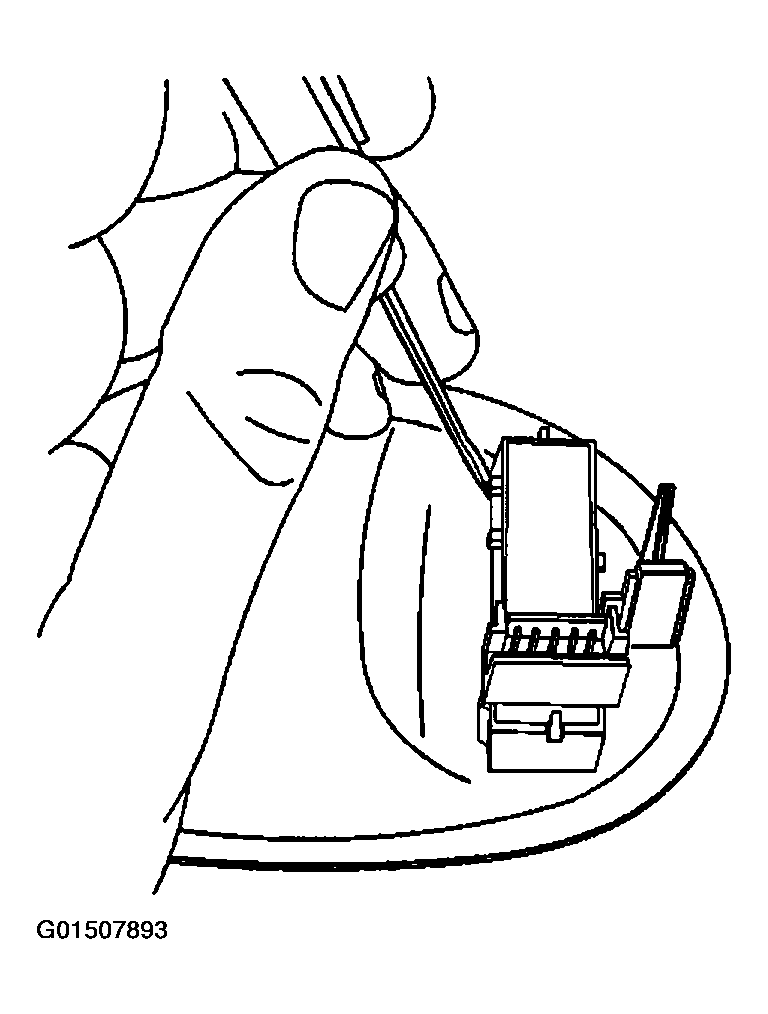

    3. Fig 1: Releasing Door Handle Bezel Lock Tabs To Remove Power Door Lock Switch
    G01507893Courtesy of GENERAL MOTORS CORP.
