Removal Procedure

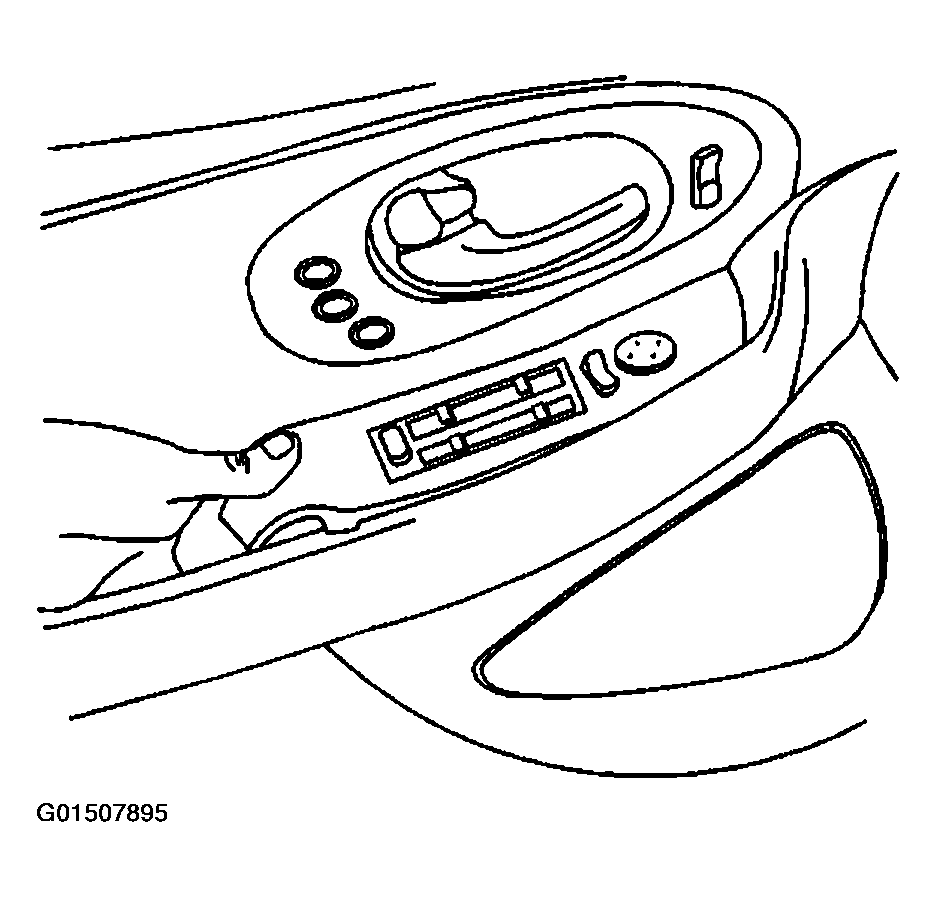

- Place forefinger under the lower rear edge of the switch plate.
- Place thumb at the upper rear end of the switch plate along the curved surface.
- While pulling rearward with forefinger and holding pressure with thumb, flex and lift the rear of the switch plate upwards.
- Gently pry upwards to release the front edge of the trim plate from the door trim panel.

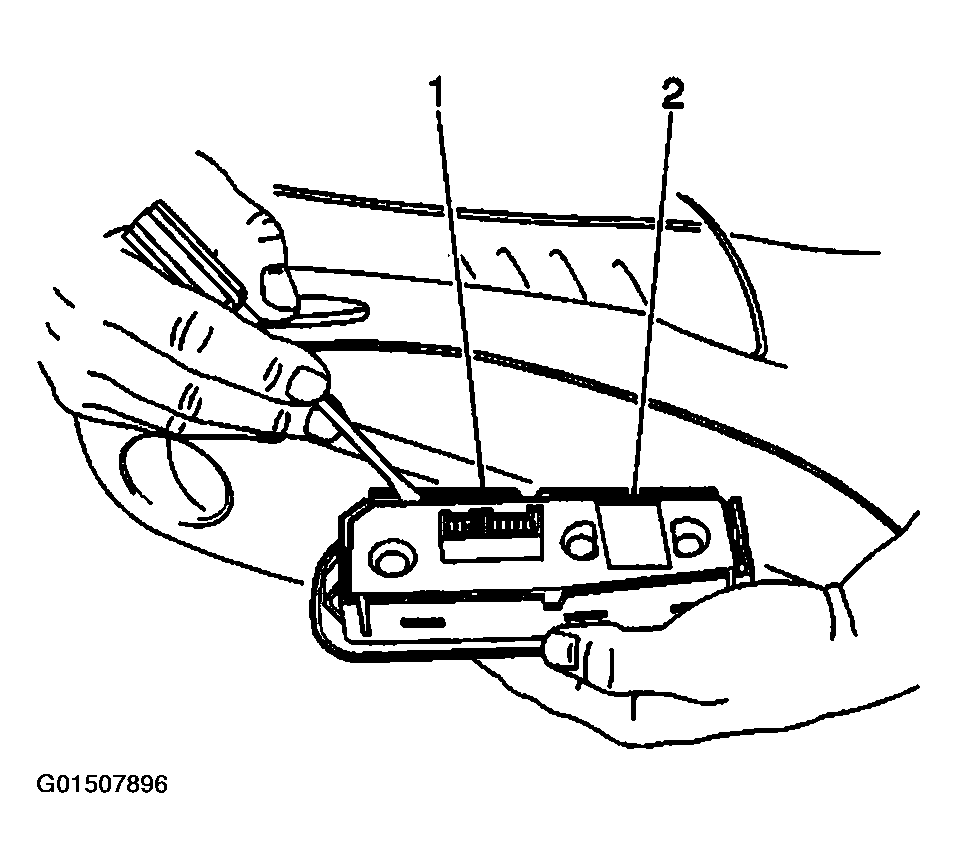

- Insert a flat bladed tool under the front edge of the mirror and window switch pack.
- Disconnect electrical connectors.
- Remove the switch pack (2) by releasing the retaining tabs on the switch trim plate (1).
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
