Installation Procedure

  1. Install the power recliner position sensor (5) to the motor (4).

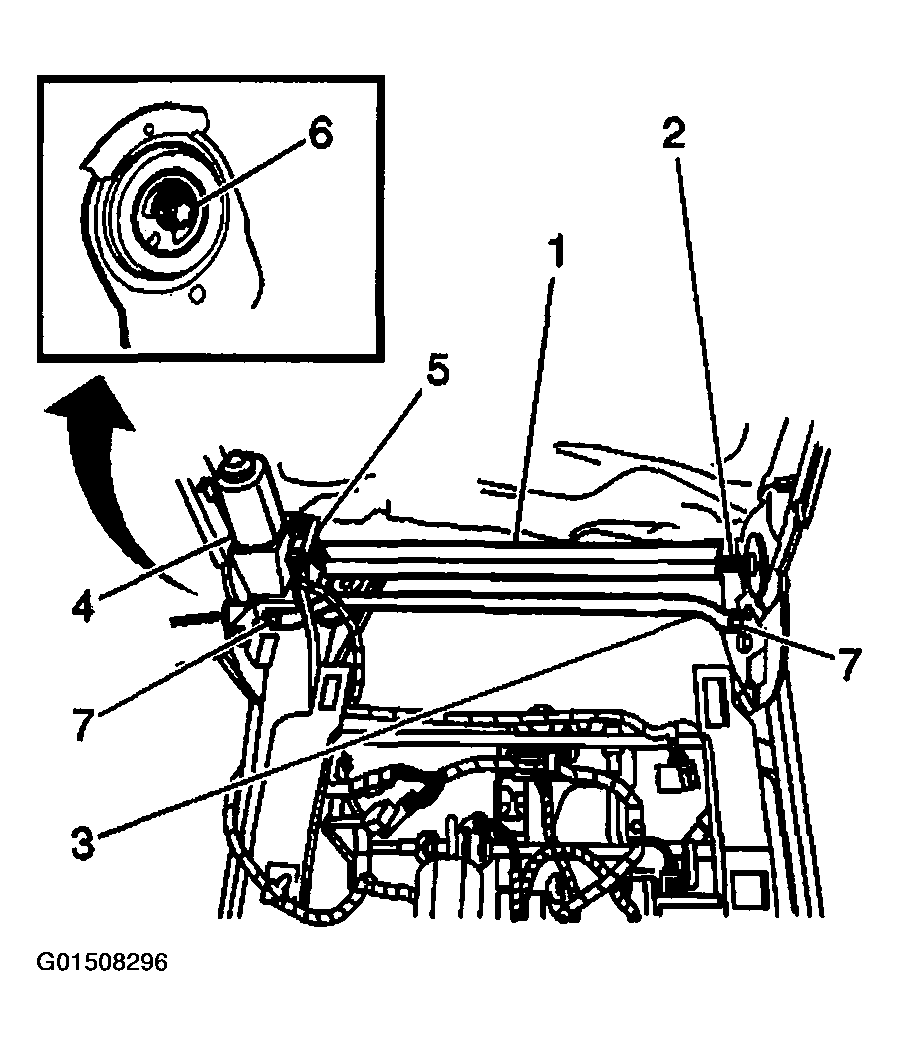

    Fig 1: Installing Front Power Recliner Sensor
    G01508296Courtesy of GENERAL MOTORS CORP.
  2. Slide the recliner rod through the power recliner position sensor (5) the seat back recliner motor (4), and the recliner assembly.
  3. Install a new push on nut (6) to the end of the recliner rod (2).
  4. Connect the electrical connector to the power recliner position sensor (5).
  5. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  6. Install the front seat. Refer to SEAT REPLACEMENT - BUCKET  .
  7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 .
