Installation Procedure

  1. Snap the memory seat switch to the inside handle bezel.

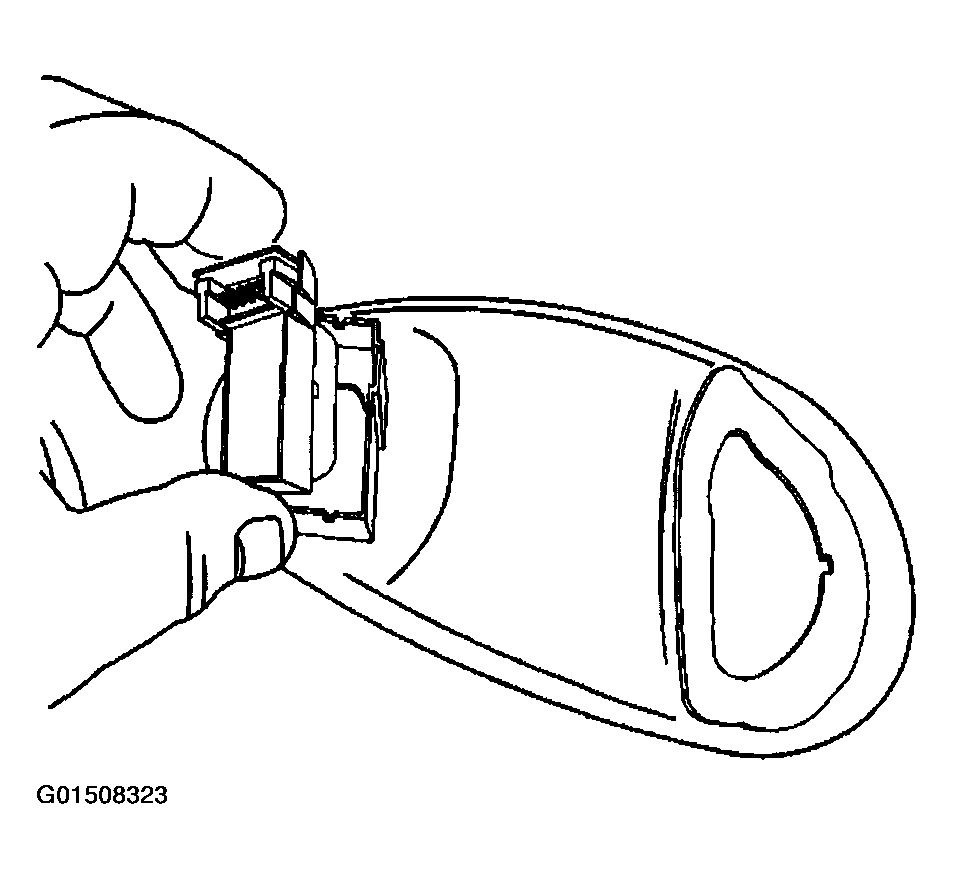

    Fig 1: Installing Memory Seat Switch
    G01508323Courtesy of GENERAL MOTORS CORP.
  2. Route the electrical wiring for the memory seat switch behind the door trim panel.
  3. Connect the memory seat switch electrical connector.
  4. Install the front door switch plate. Refer to FRONT DOOR SWITCH REPLACEMENT in Doors.
  5. Install the inside handle bezel to the door trim panel. Refer to HANDLE BEZEL REPLACEMENT -- INSIDE in Doors.
