Scan Tool Output Controls

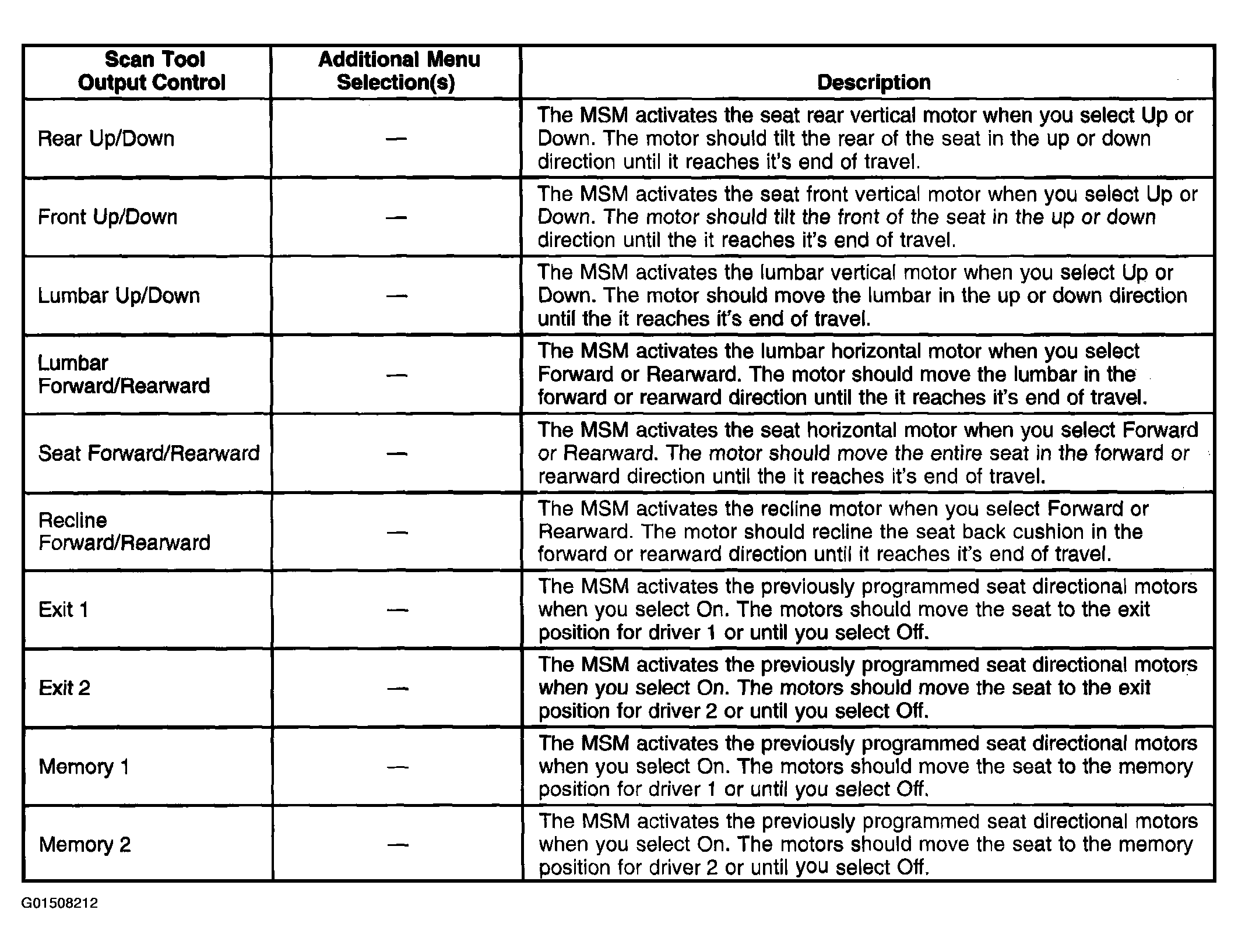

Fig 1: Scan Tool Output Controls Chart - Memory Seat Module (MSM)
G01508212Courtesy of GENERAL MOTORS CORP.

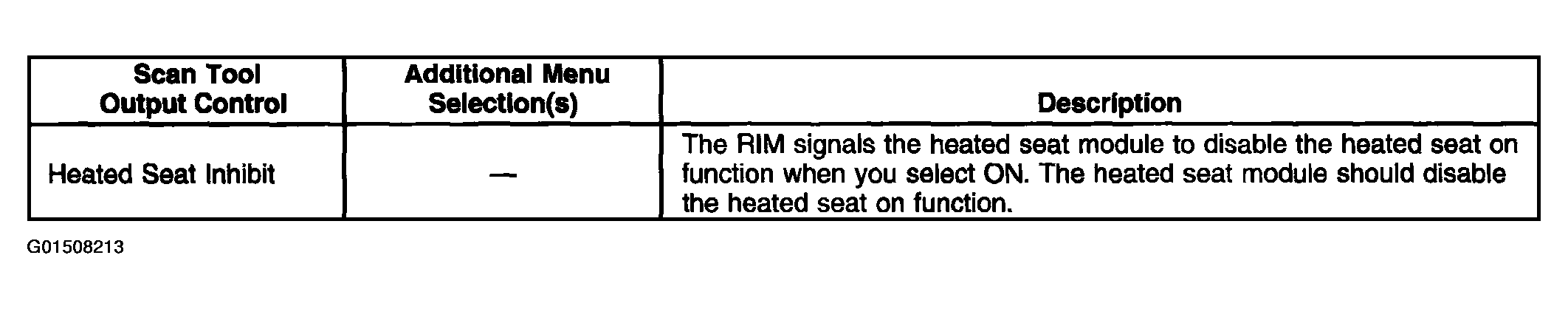

Fig 2: Scan Tool Output Controls Chart - Rear Integration Module (RIM)
G01508213Courtesy of GENERAL MOTORS CORP.
