Removal Procedure

Important:  Do not let the overhead console hang from the wire harness.

1. Carefully pull down on the overhead console to release the retainer clips securing the overhead console to the headliner.
2. Disconnect the wire electrical connectors.
3. Remove the overhead console from the vehicle.

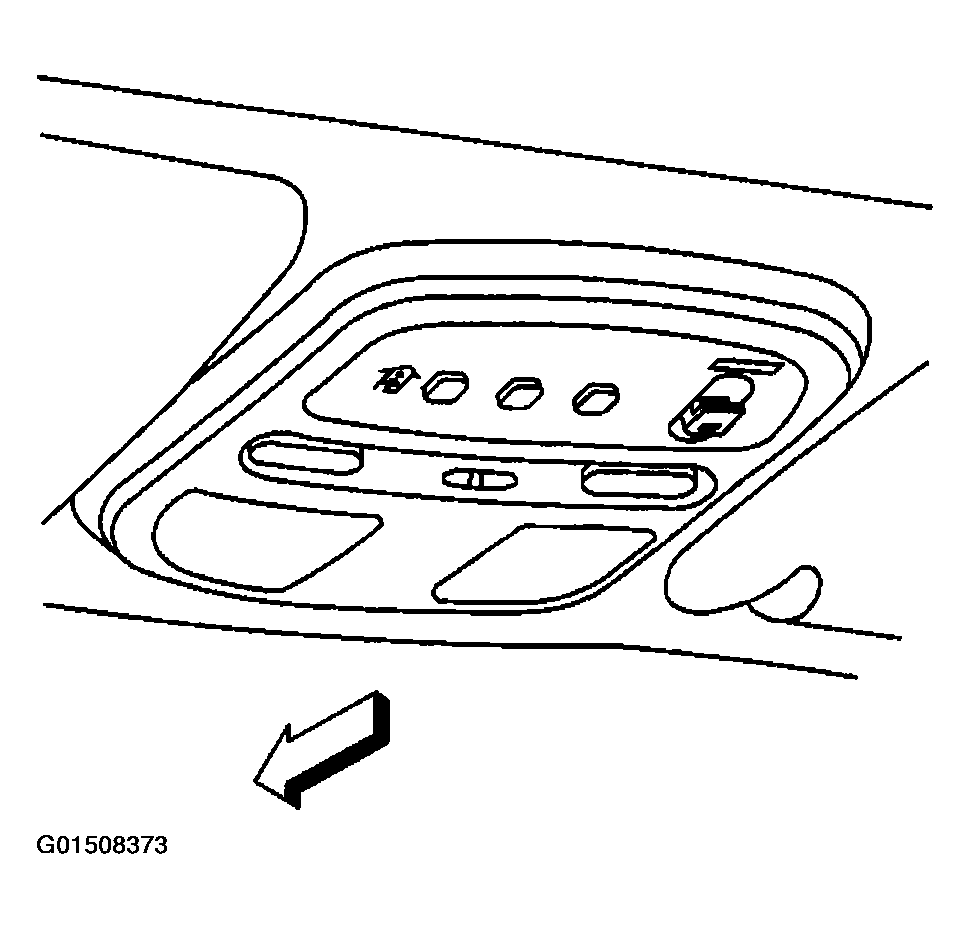

   Fig 1: Removing Overhead Console

   Courtesy of GENERAL MOTORS CORP.
