Theft Deterrent System Connector End Views

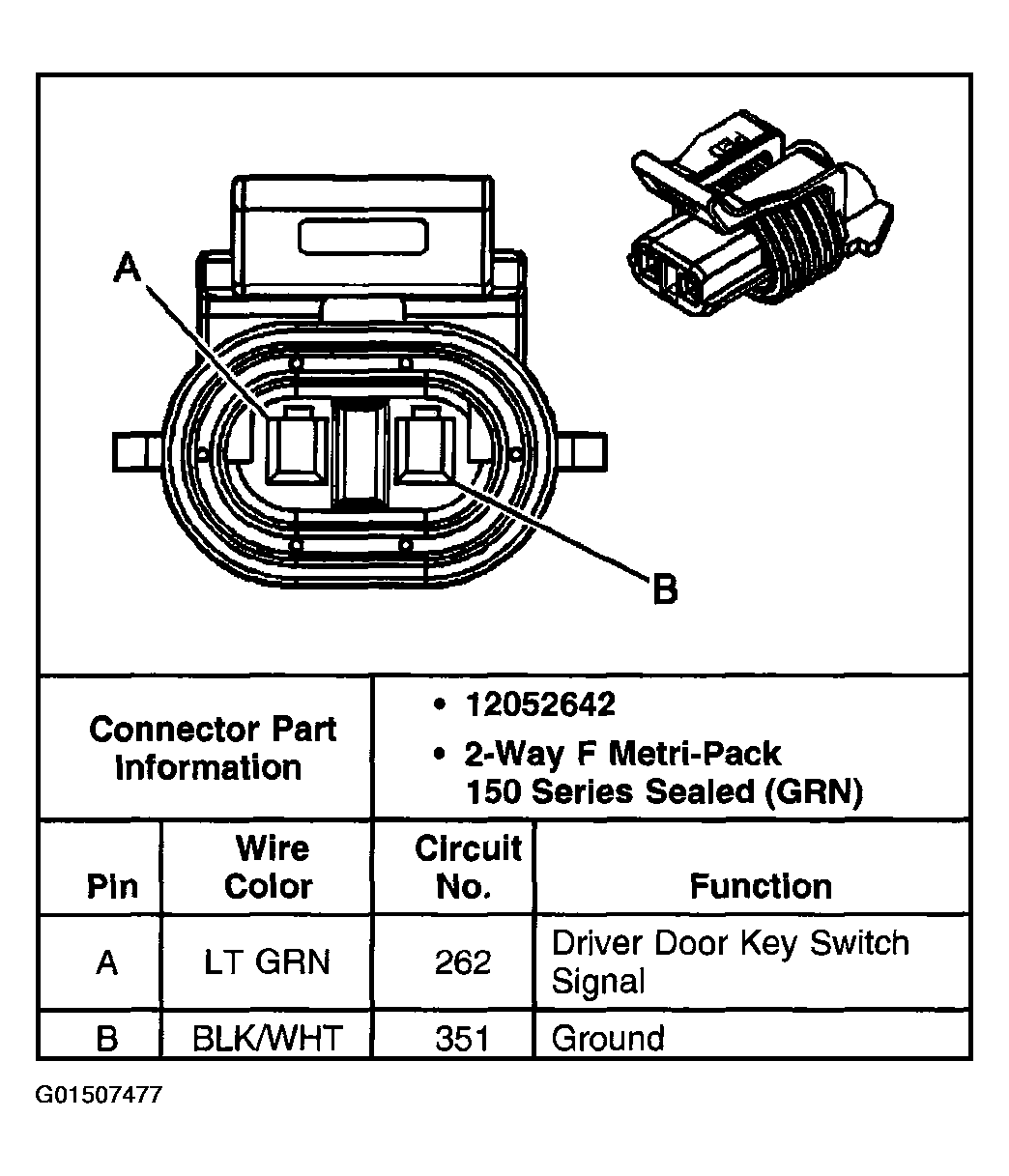

Fig 1: Identifying Door Lock Cylinder Switch Connector End View - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Theft Deterrent Control Module Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Theft Deterrent Control Module Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Theft Deterrent Exciter Module Connector End View

Courtesy of GENERAL MOTORS CORP.
