Removal Procedure

CAUTION: Refer to AIR BAG SAFETY PRECAUTIONS in SIR Caution and Notices.

Disable the SIR System. Refer to ZONE 3 in SIR Disabling and Enabling.
Remove the steering wheel. Refer to STEERING WHEEL REPLACEMENT in Steering Wheel and Column.
Remove the access plate covering the back of the switch.

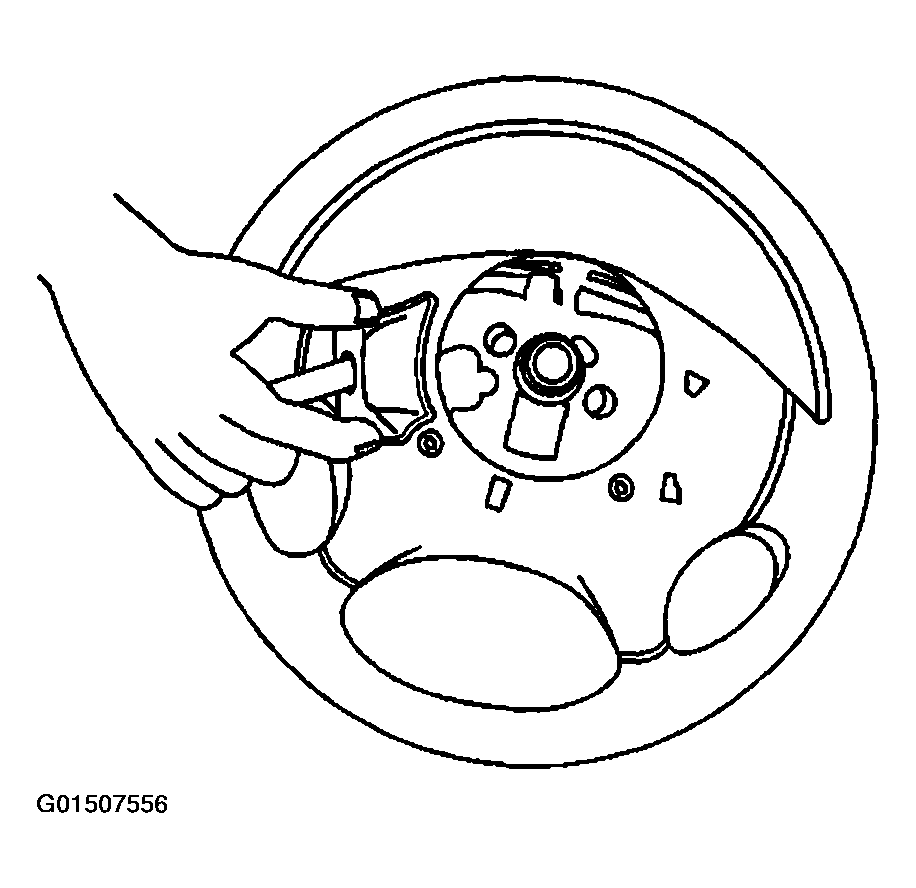

Fig 1: Removing Access Plate
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control lever retaining screws (1).
Disconnect the electrical connector.

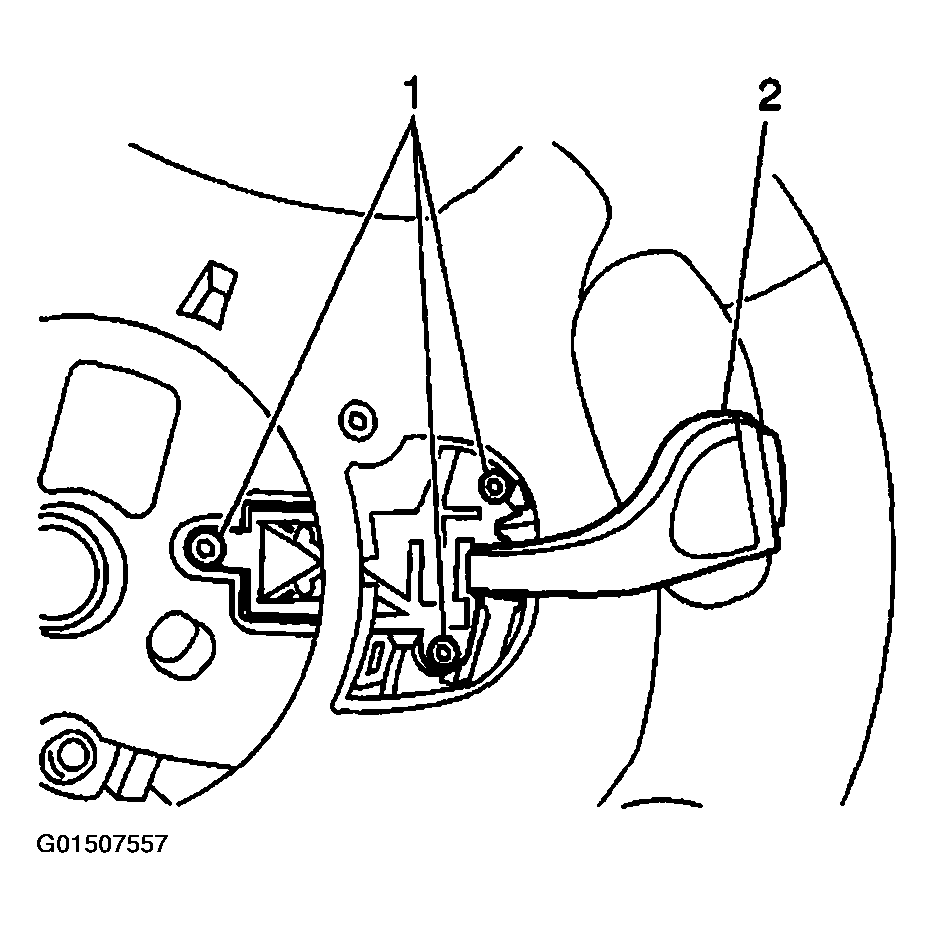

Fig 2: Removing Cruise Control Lever Retaining Screws
Courtesy of GENERAL MOTORS CORP.
