Installation Procedure

  1. Connect the electrical connector.
  2. Position the cruise control lever (2) in the opening on the steering wheel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the cruise control lever retaining screws (1).

    Tighten

    Tighten the screws to 2.30 N.m (20 lb in).

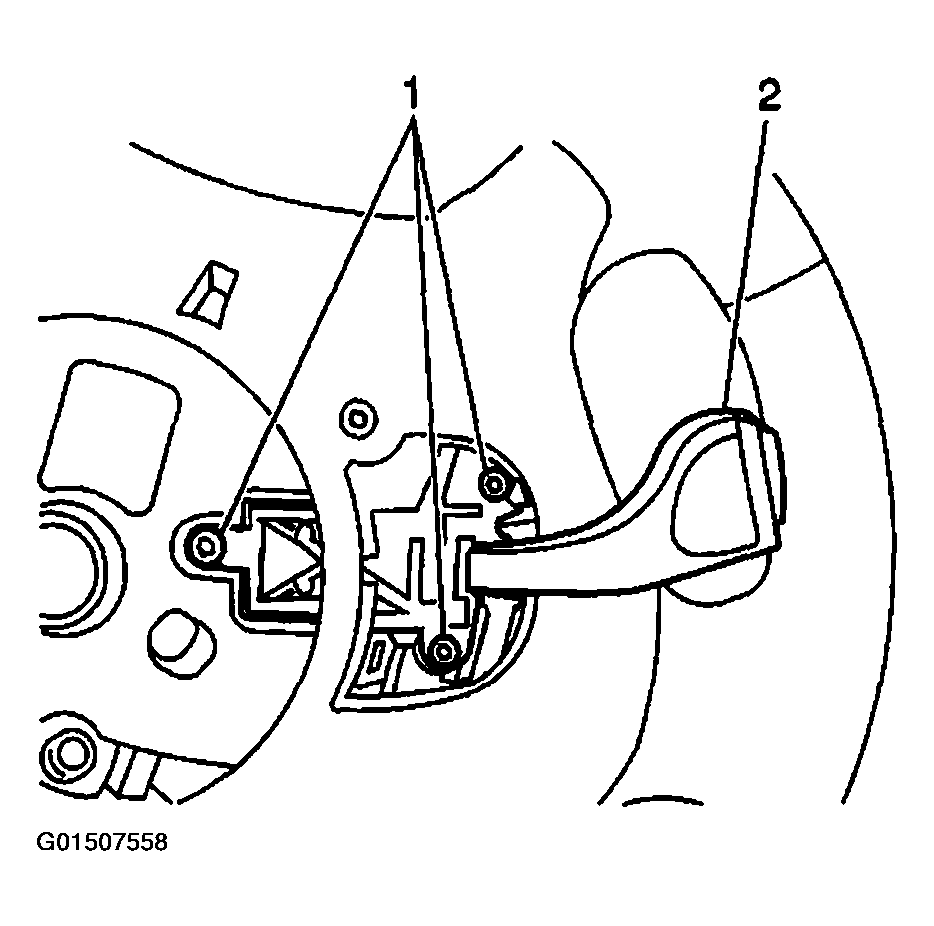

    Fig 1: Installing Cruise Control Lever Retaining Screws
    G01507558Courtesy of GENERAL MOTORS CORP.
  4. Install the access plate.
  5. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT in Steering Wheel and Column.
  6. Enable the SIR System. Refer to ZONE 3 in SIR Disabling and Enabling.

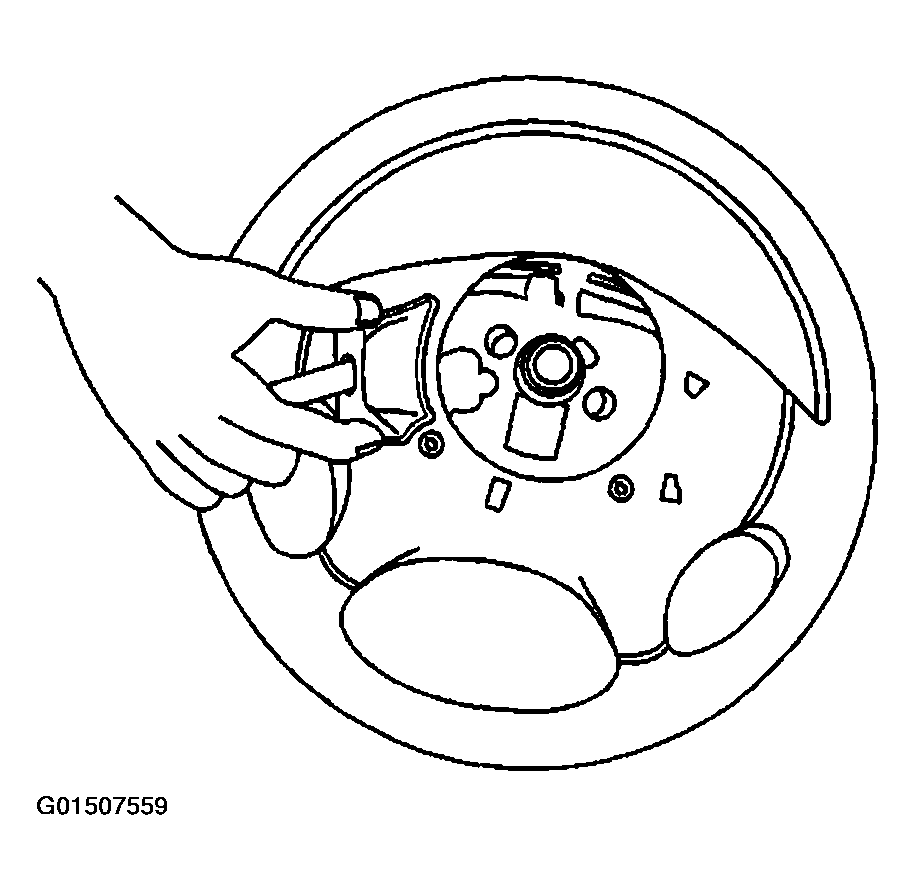

    Fig 2: Installing Access Plate
    G01507559Courtesy of GENERAL MOTORS CORP.
