Theft Deterrent Control Module Connector End View (1 Of 2)

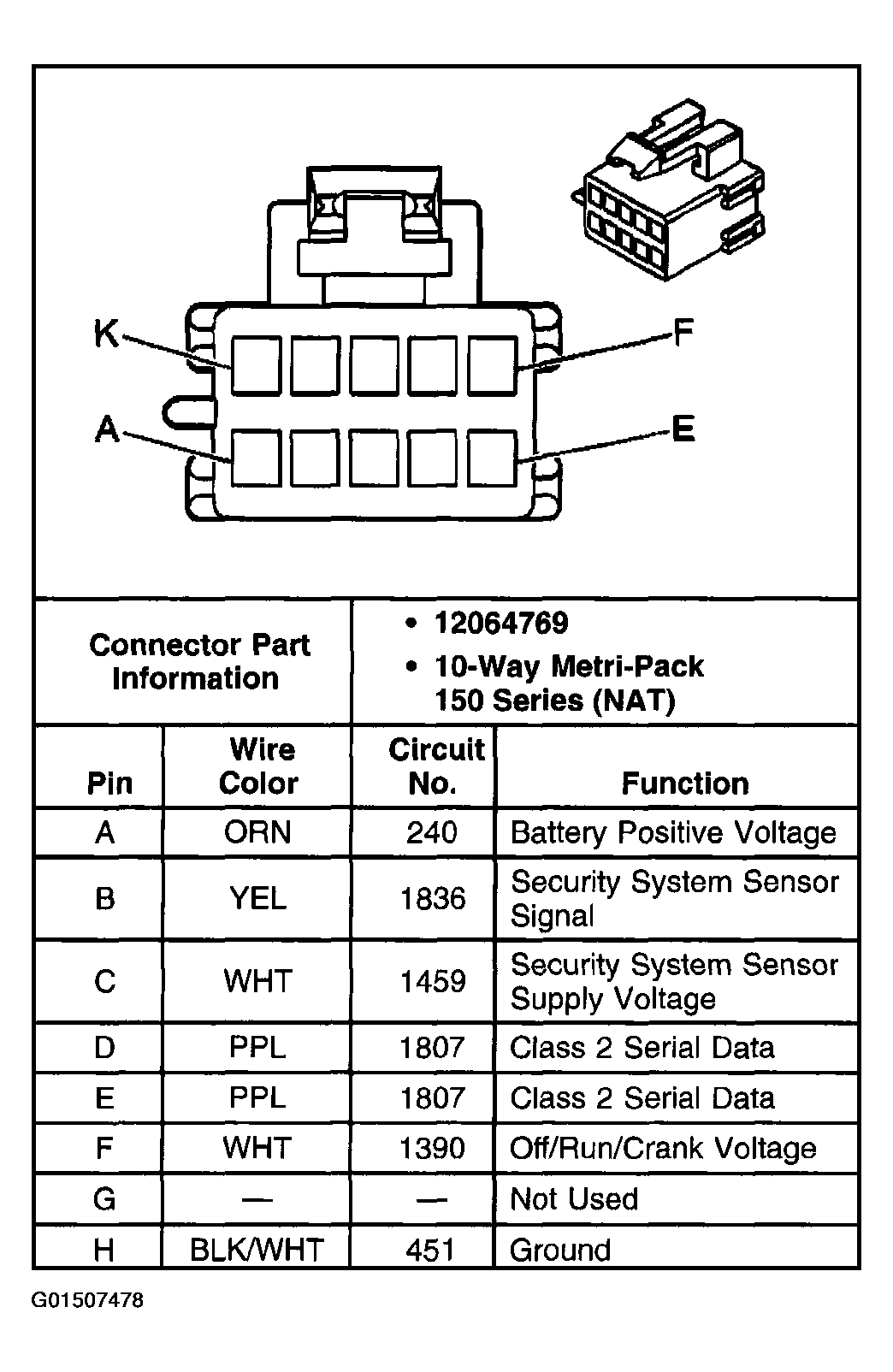

Fig 1: Theft Deterrent Control Module Connector End View (1 Of 2)

G01507478

Courtesy of GENERAL MOTORS CORP.
