Sunload Sensor Assembly Connector End View

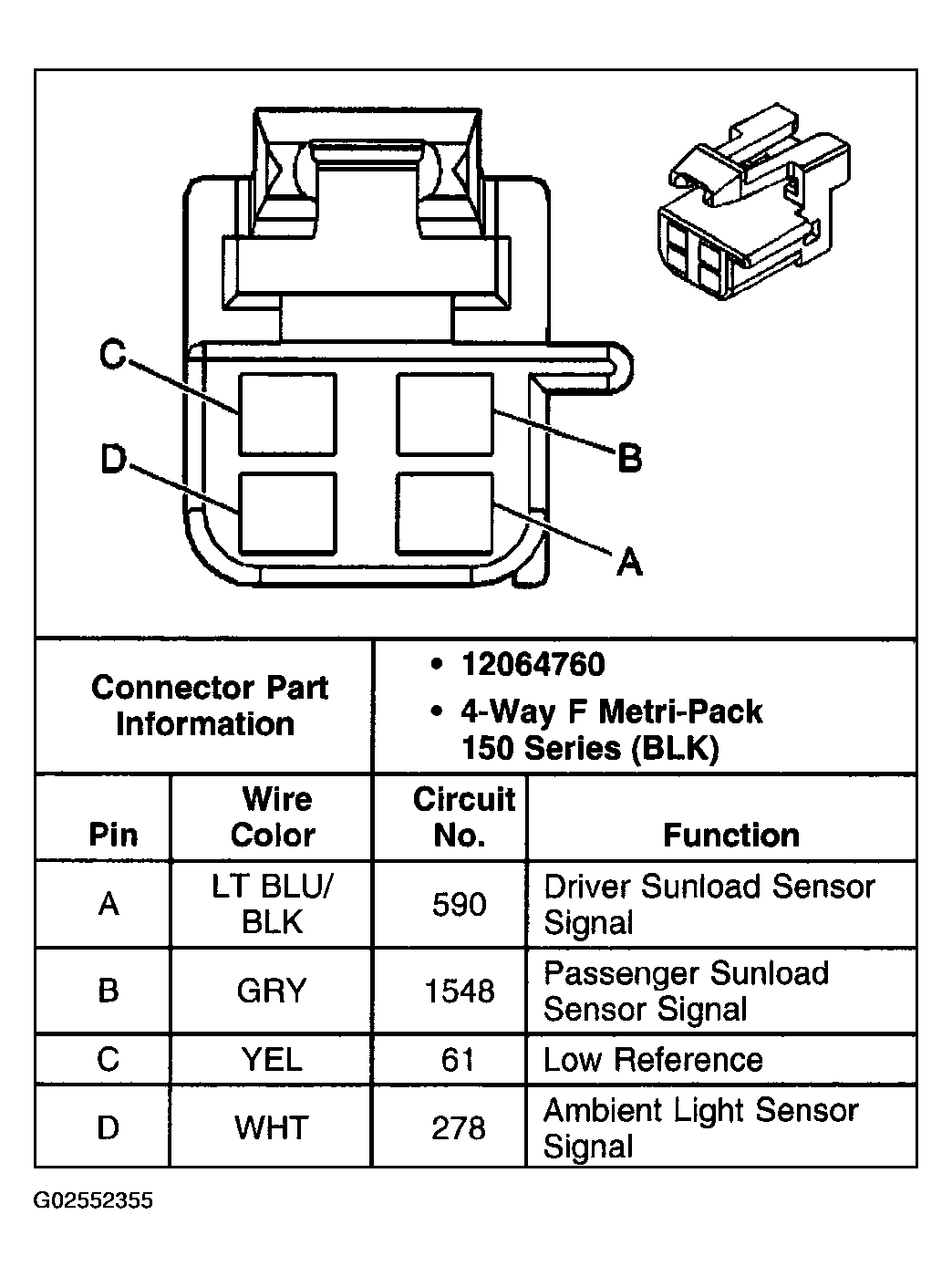

Fig 1: Sunload Sensor Assembly Connector End View

G02552355

Courtesy of GENERAL MOTORS CORP.
