Power Sunroof Express Module Connector End View C2

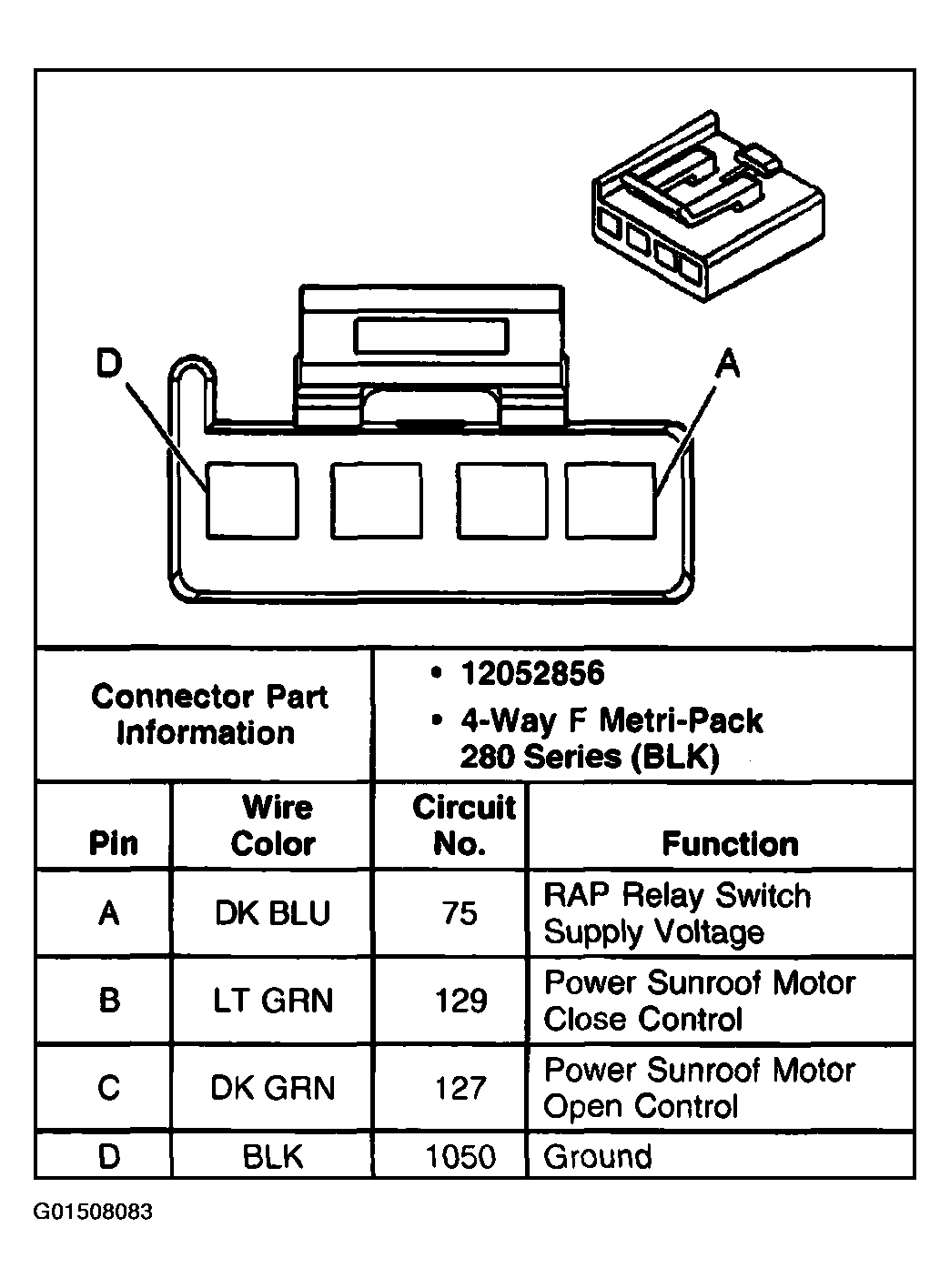

Fig 1: Power Sunroof Express Module Connector End View C2

G01508083

Courtesy of GENERAL MOTORS CORP.
