Power Sunroof Express Module Connector End View C1

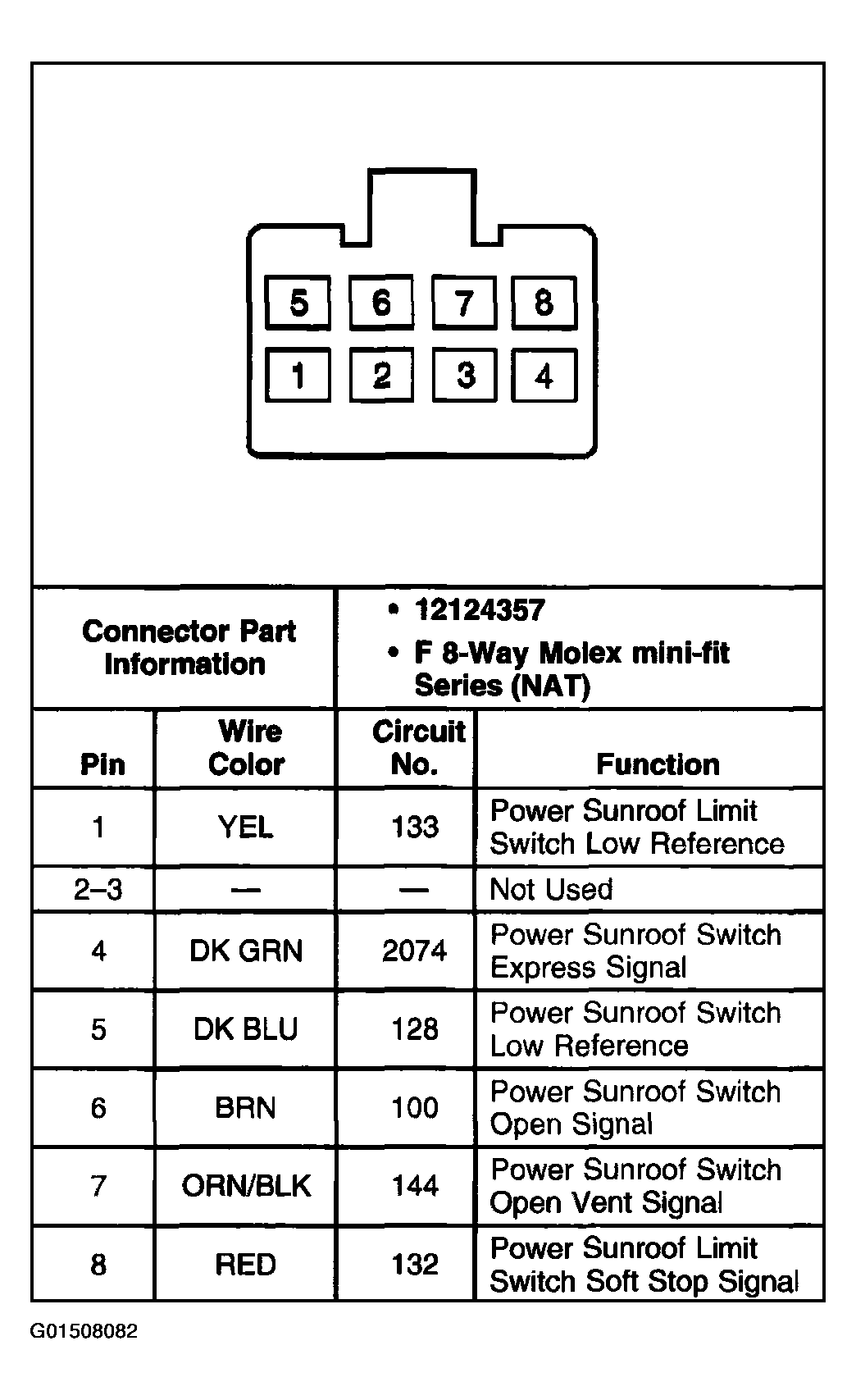

Fig 1: Power Sunroof Express Module Connector End View C1

G01508082

Courtesy of GENERAL MOTORS CORP.
