Memory Seat Module Connector End View (C3) - Driver (w/A45)

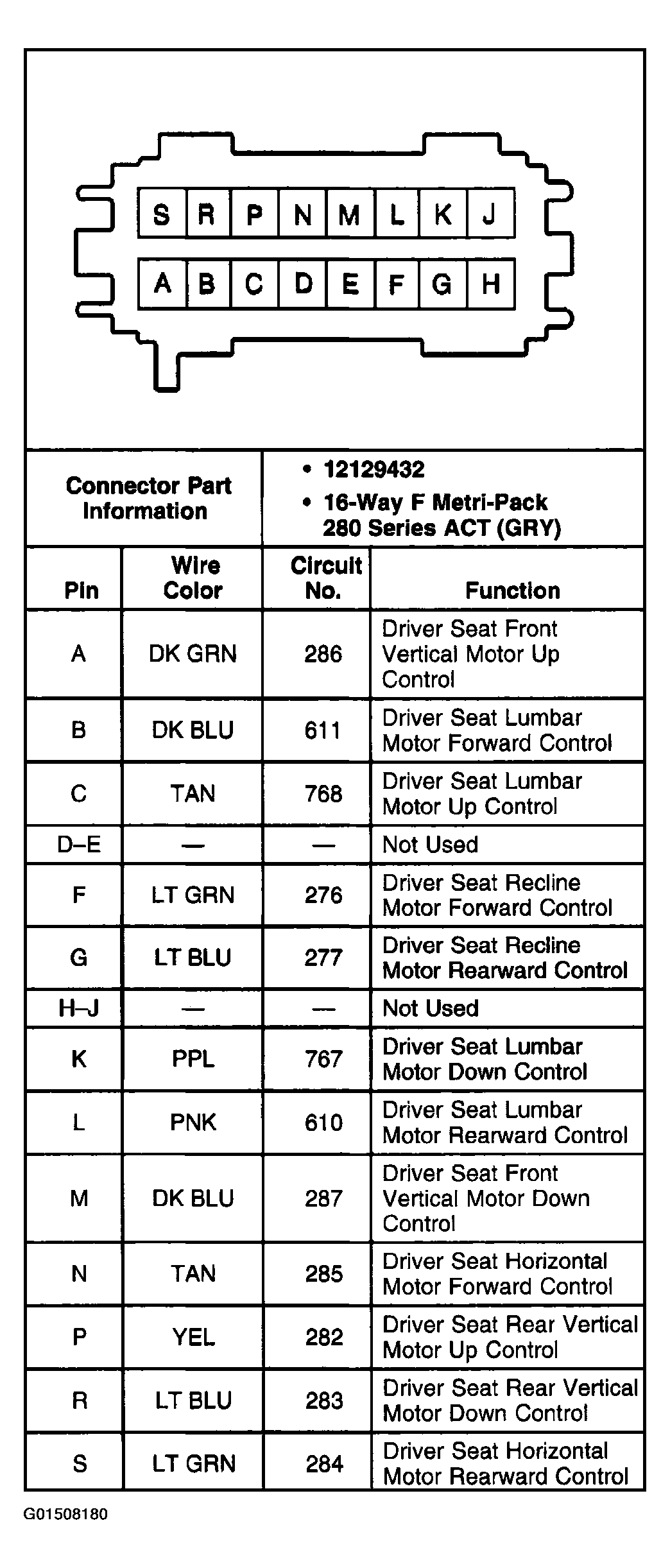

Fig 1: Memory Seat Module Connector End View (C3) - Driver (w/A45)

G01508180

Courtesy of GENERAL MOTORS CORP.
