Memory Seat Module Connector End View (C2) - Driver (w/A45) (2 Of 2)

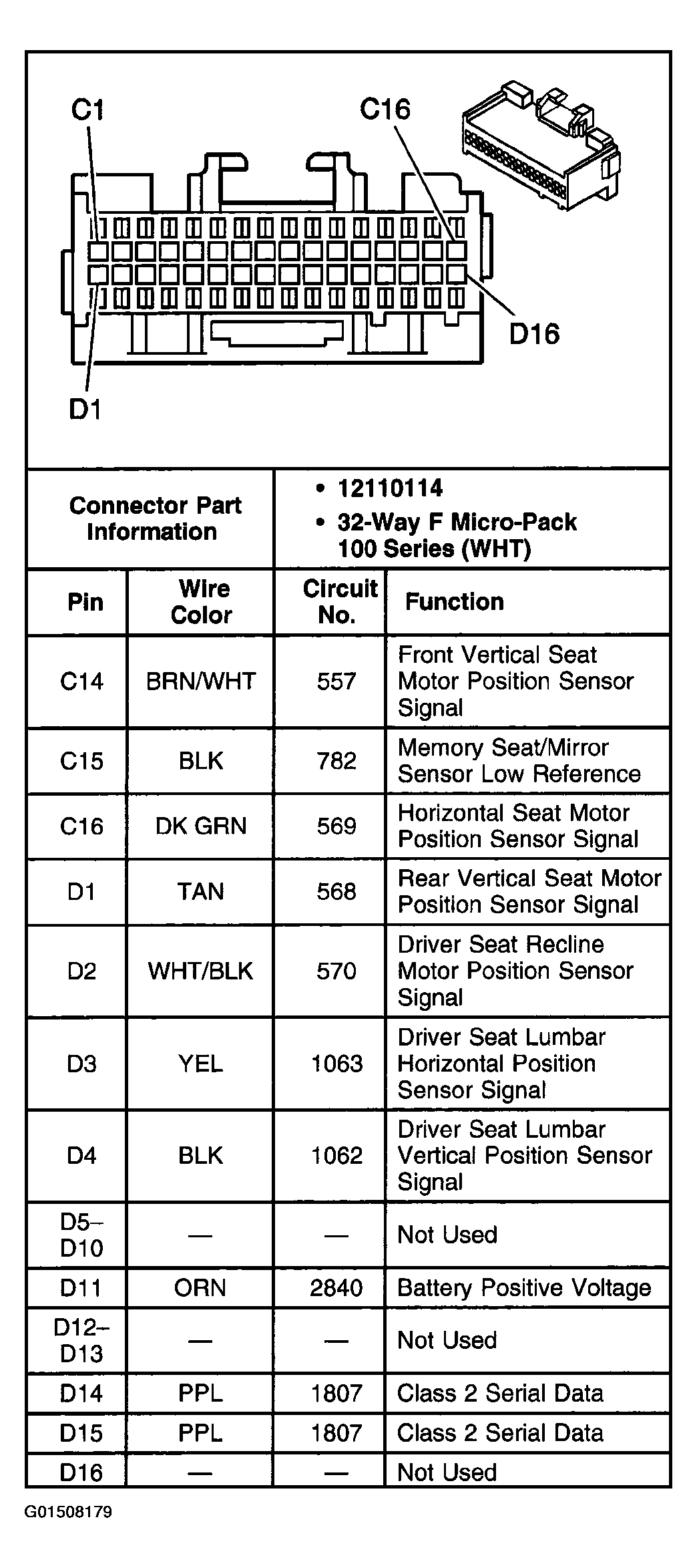

Fig 1: Memory Seat Module Connector End View (C2) - Driver (w/A45) (2 Of 2)
G01508179Courtesy of GENERAL MOTORS CORP.
