Front Passenger Door Module (FPDM) Connector End View C3 (2 Of 2)

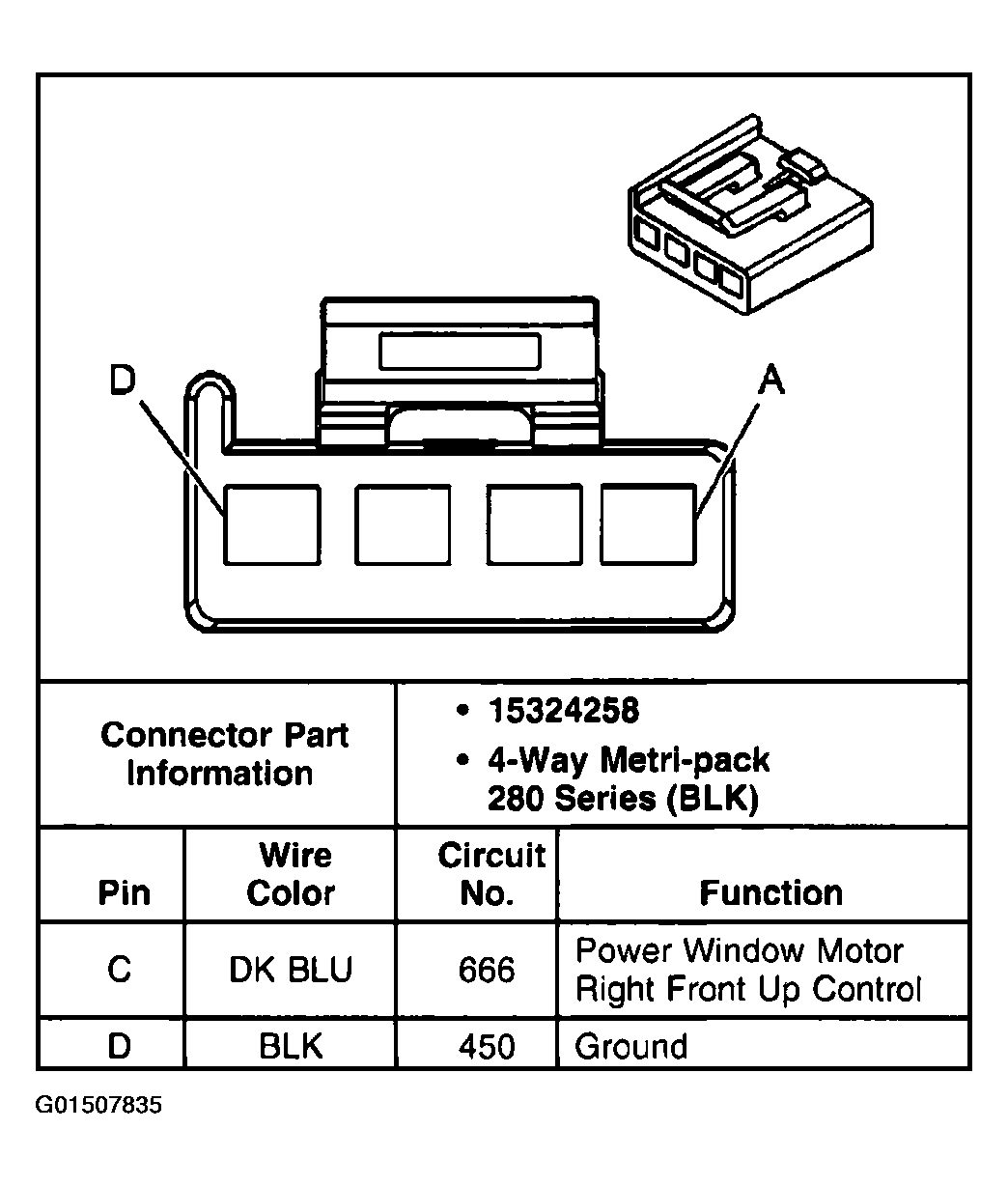

Fig 1: Front Passenger Door Module (FPDM) Connector End View C3 (2 Of 2)
G01507835Courtesy of GENERAL MOTORS CORP.
