Front Passenger Door Module (FPDM) Connector End View C2

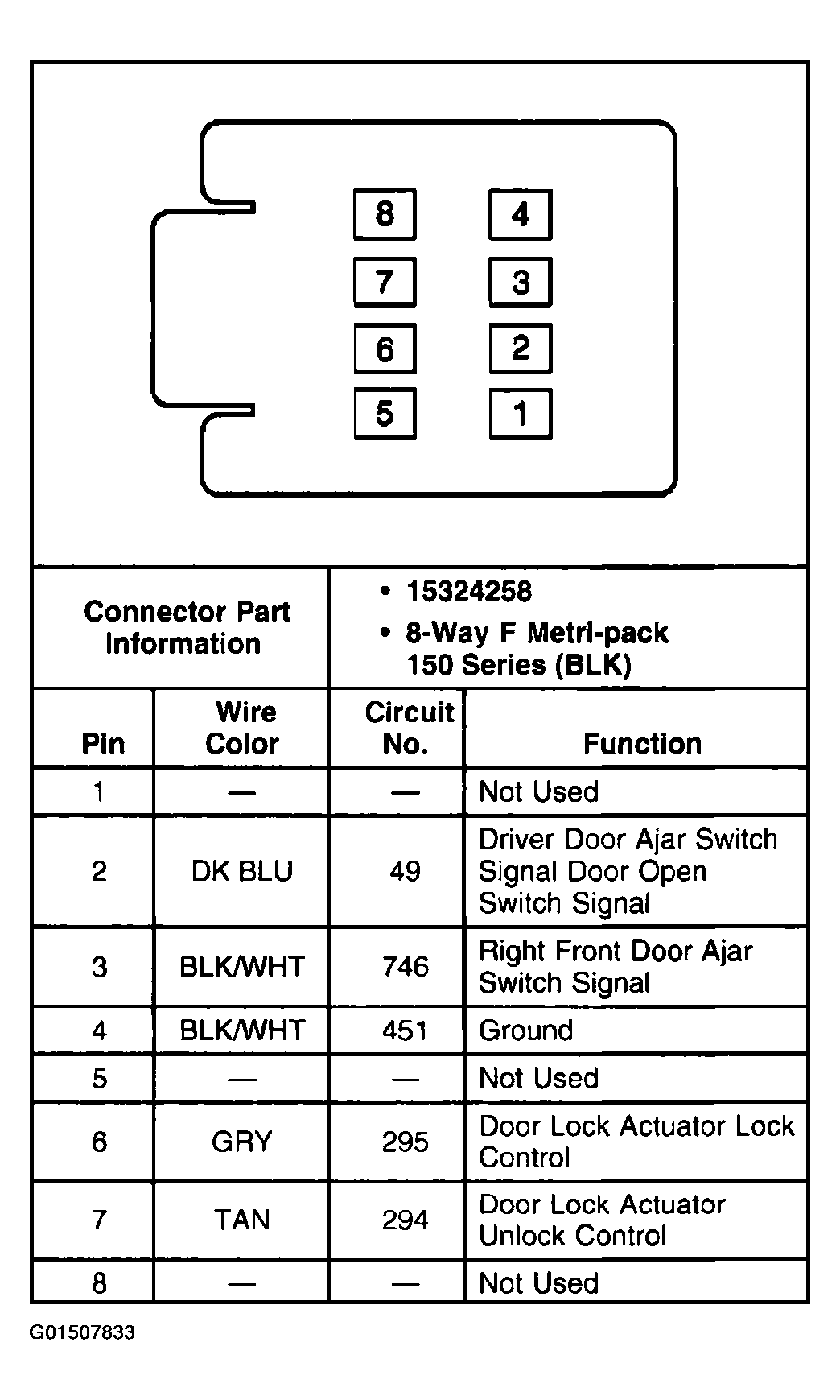

Fig 1: Front Passenger Door Module (FPDM) Connector End View C2

G01507833

Courtesy of GENERAL MOTORS CORP.
