Electronic Brake Control Module Connector End View (1 Of 2)

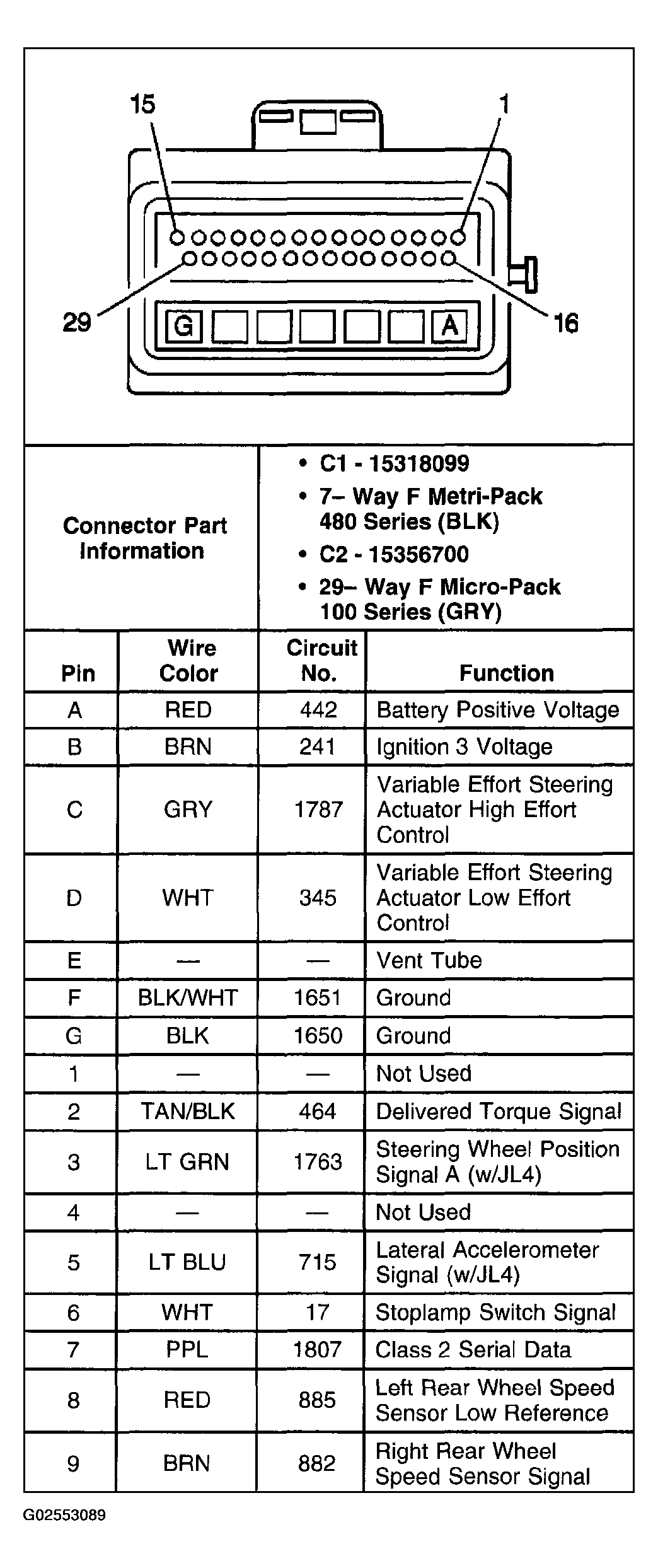

Fig 1: Electronic Brake Control Module Connector End View (1 Of 2)

G02553089

Courtesy of GENERAL MOTORS CORP.
