Driver Door Switch Assembly (DDSA) Connector End View

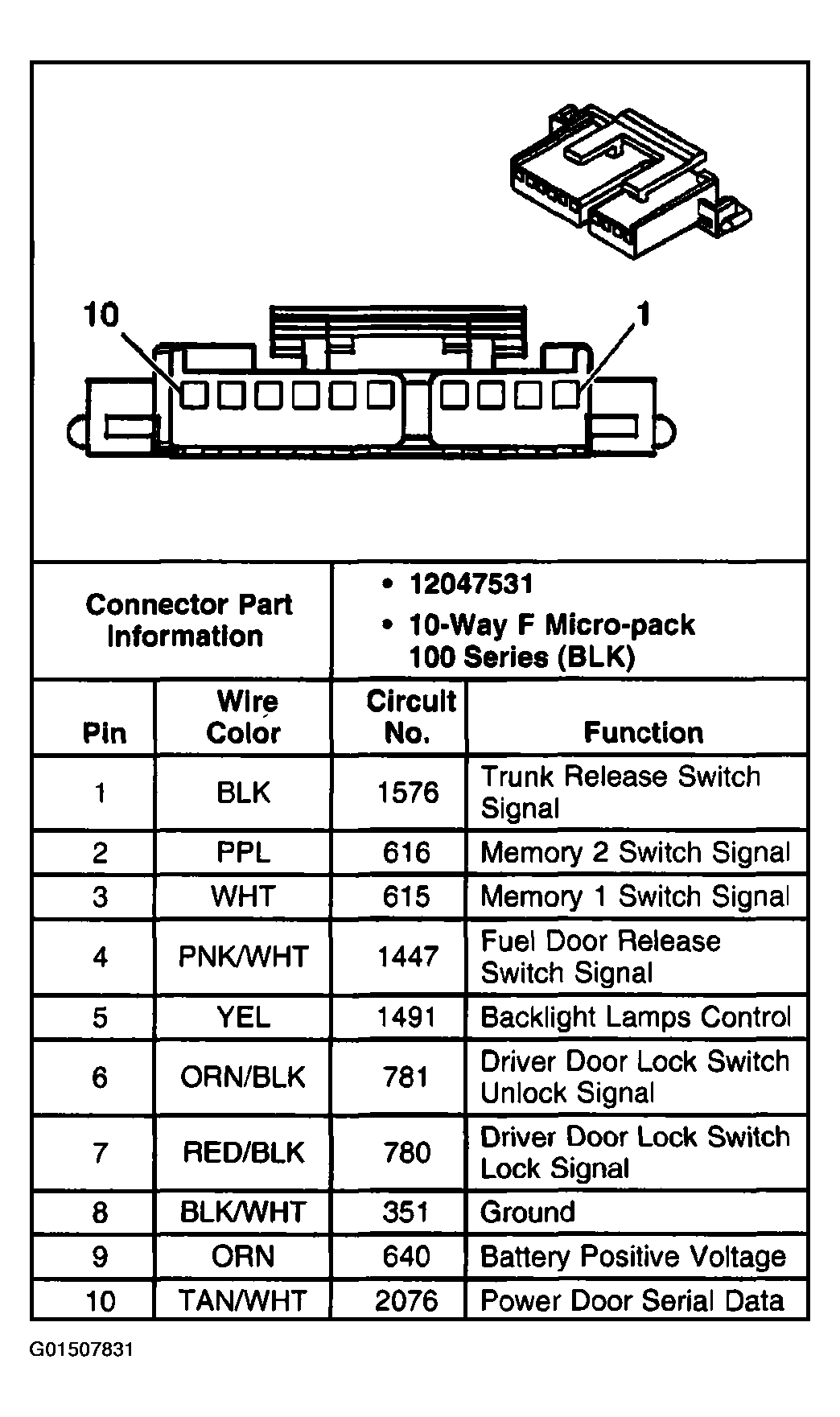

Fig 1: Driver Door Switch Assembly (DDSA) Connector End View

G01507831

Courtesy of GENERAL MOTORS CORP.
