Driver Door Module (DDM) Connector End View C4 (2 Of 2)

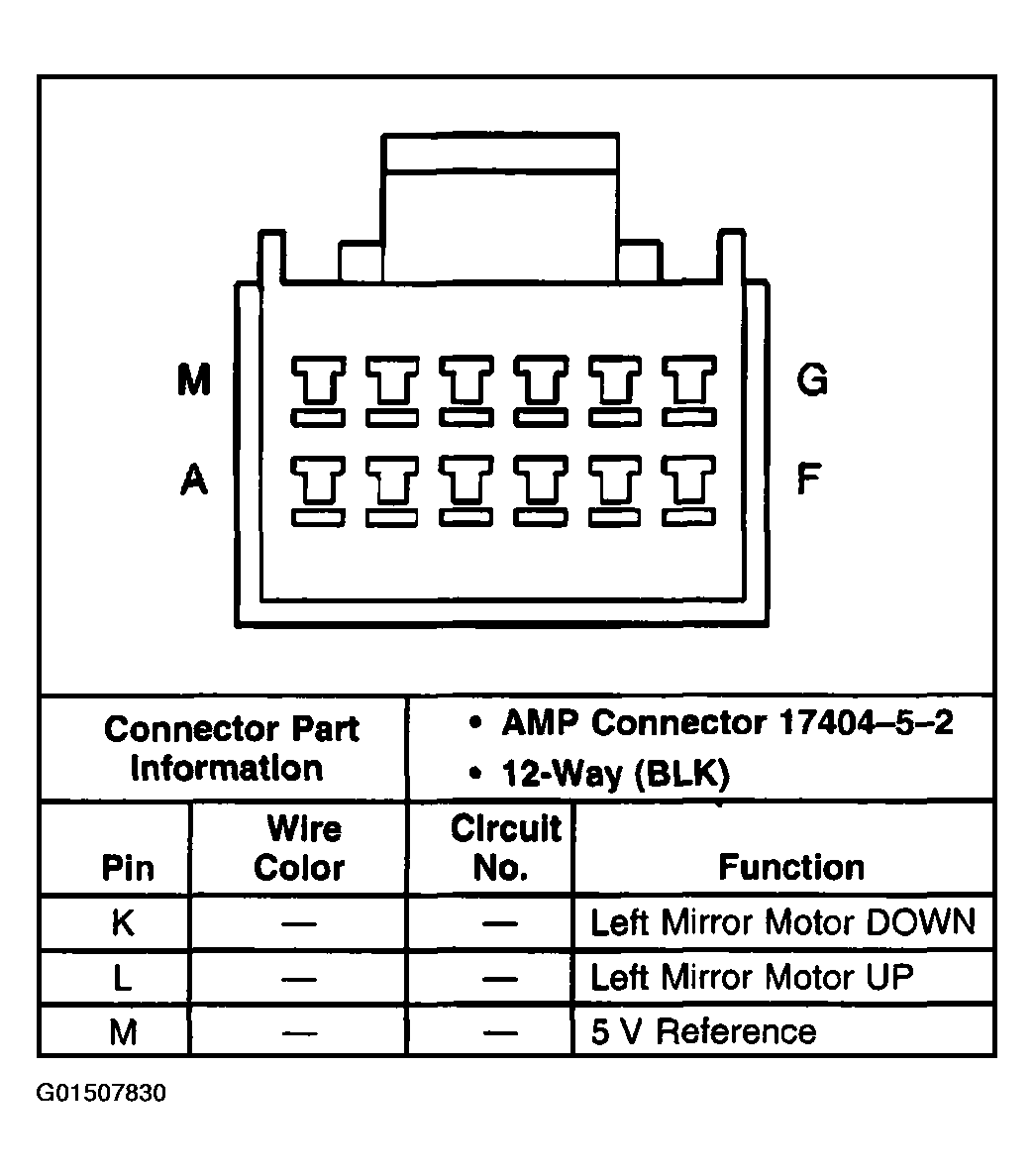

Fig 1: Driver Door Module (DDM) Connector End View C4 (2 Of 2)

G01507830

Courtesy of GENERAL MOTORS CORP.
