Home >> Oldsmobile >> 2003 >> Aurora >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Driver Door Module (DDM) Connector End View C2

Driver Door Module (DDM) Connector End View C2

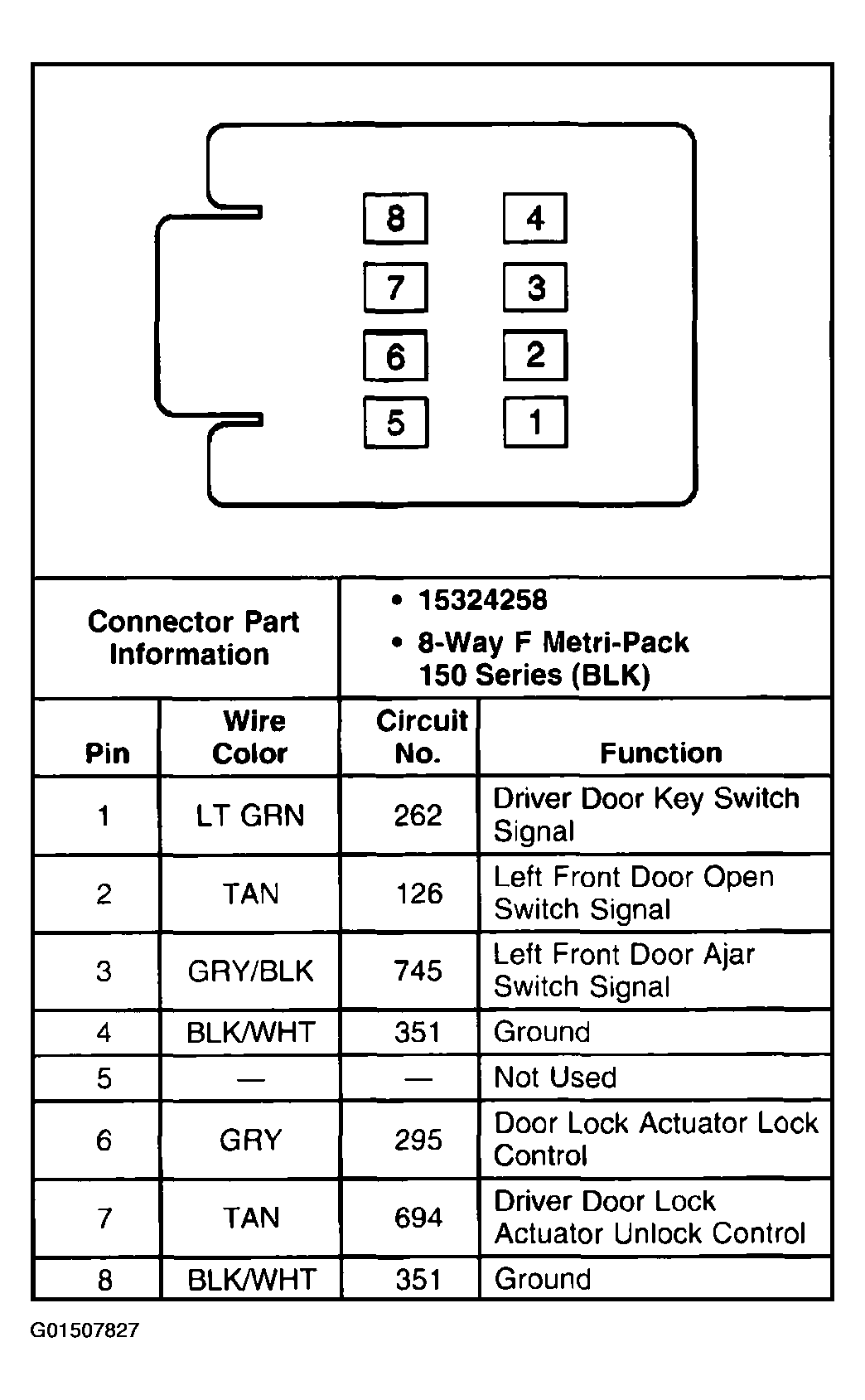

Fig 1: Driver Door Module (DDM) Connector End View C2

G01507827

Courtesy of GENERAL MOTORS CORP.
