Engine Block Right Deck Face

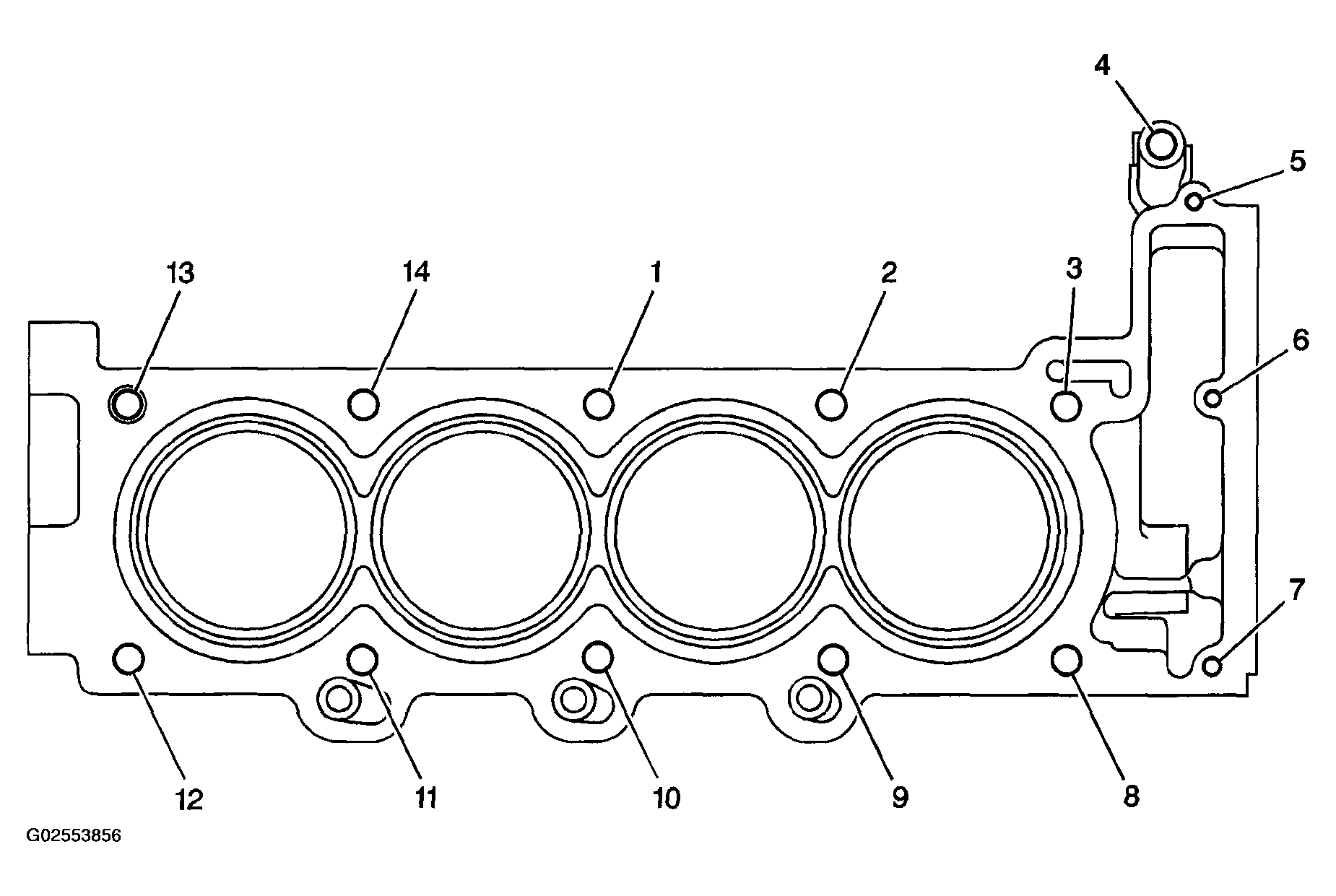

Fig 1: Identifying Engine Block Right Deck Face Bolt Holes
G02553856Courtesy of GENERAL MOTORS CORP.

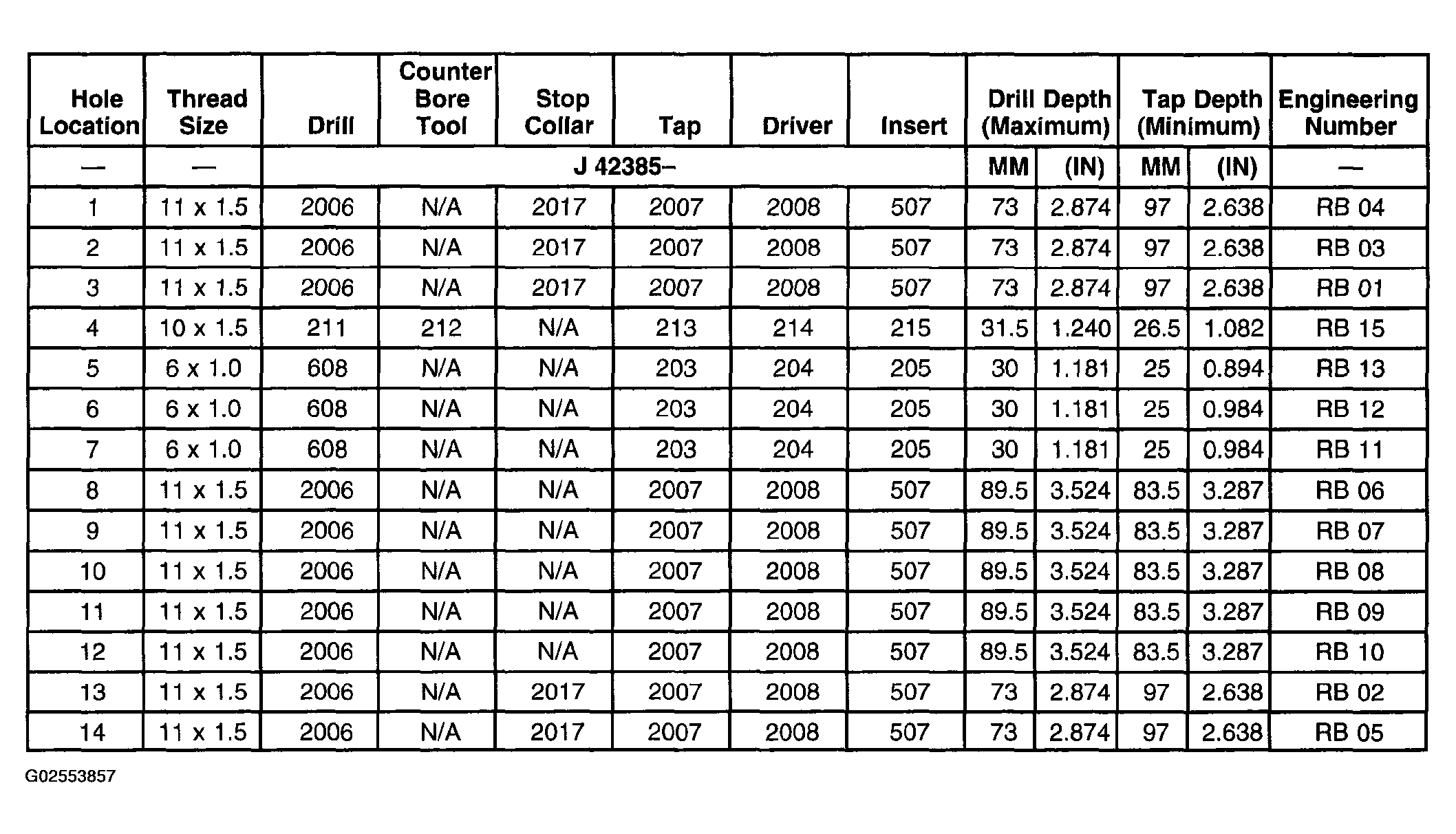

Fig 2: Engine Block Right Deck Face Bolt Holes Specifications
G02553857Courtesy of GENERAL MOTORS CORP.
