Driver Door Module (DDM) Connector End View C1 (2 Of 2)

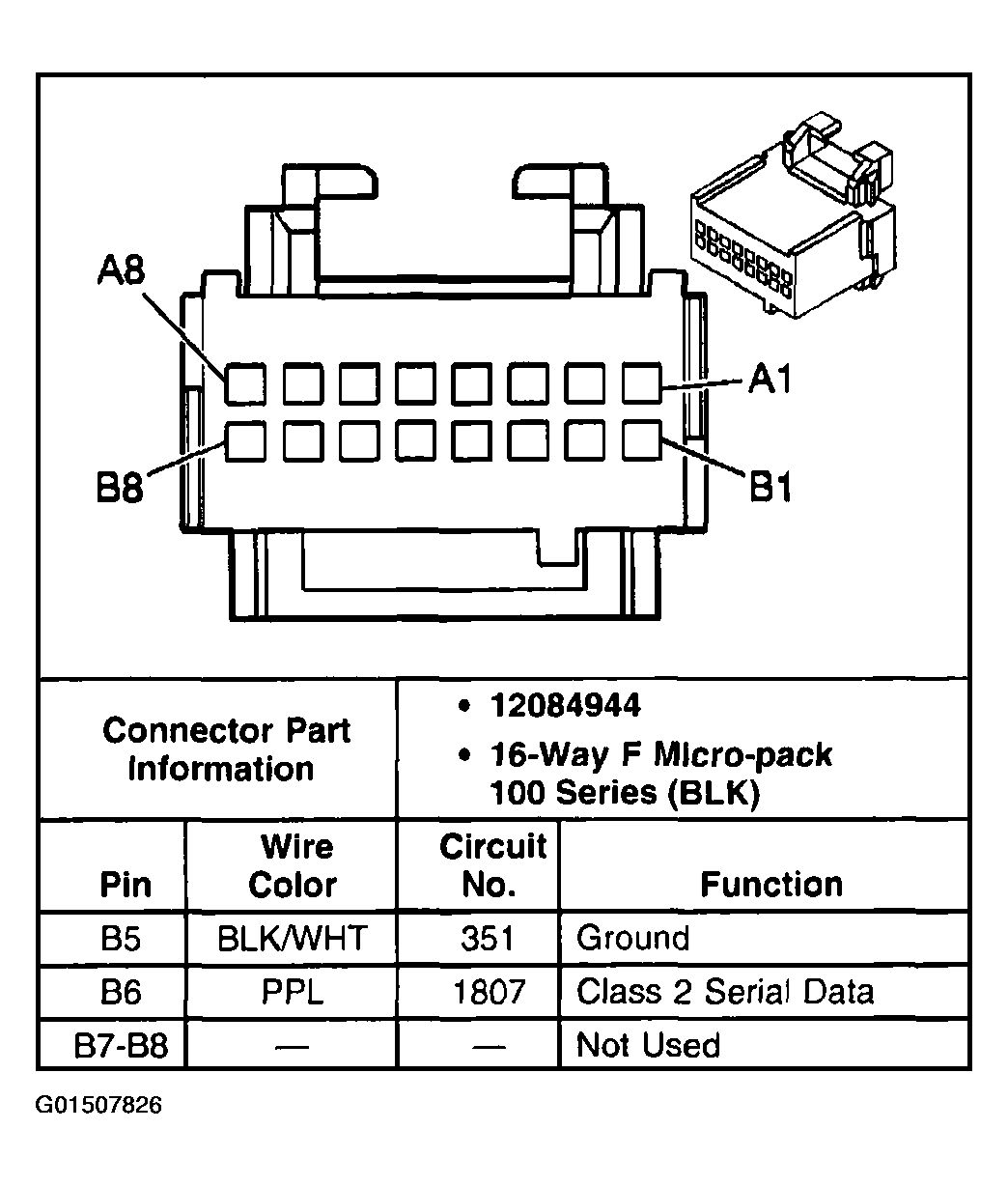

Fig 1: Driver Door Module (DDM) Connector End View C1 (2 Of 2)

G01507826

Courtesy of GENERAL MOTORS CORP.
