Dash Integration Module (DIM) Connector End View C1

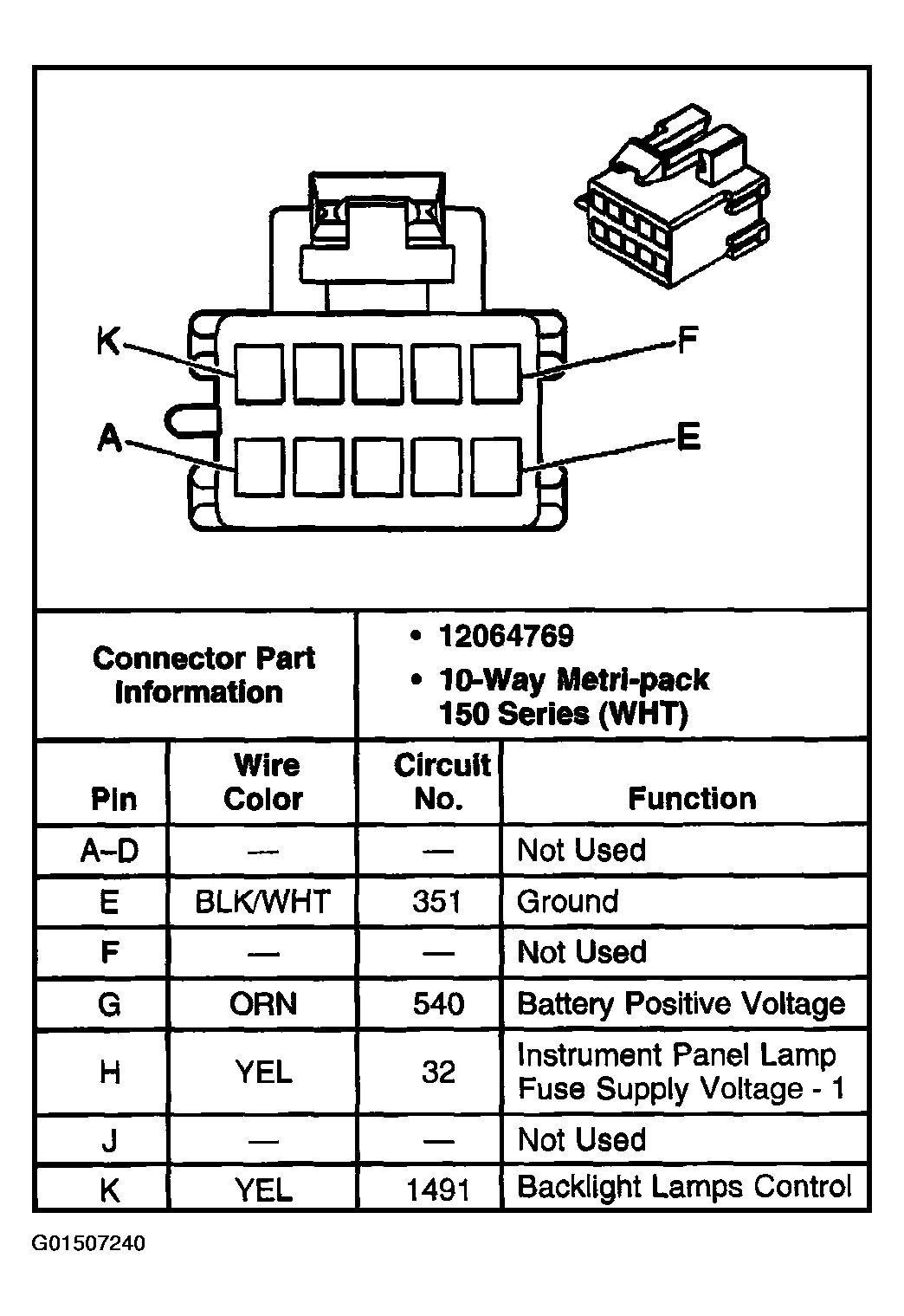

Fig 1: Dash Integration Module (DIM) Connector End View C1

G01507240

Courtesy of GENERAL MOTORS CORP.
