Scan Tool Output Controls

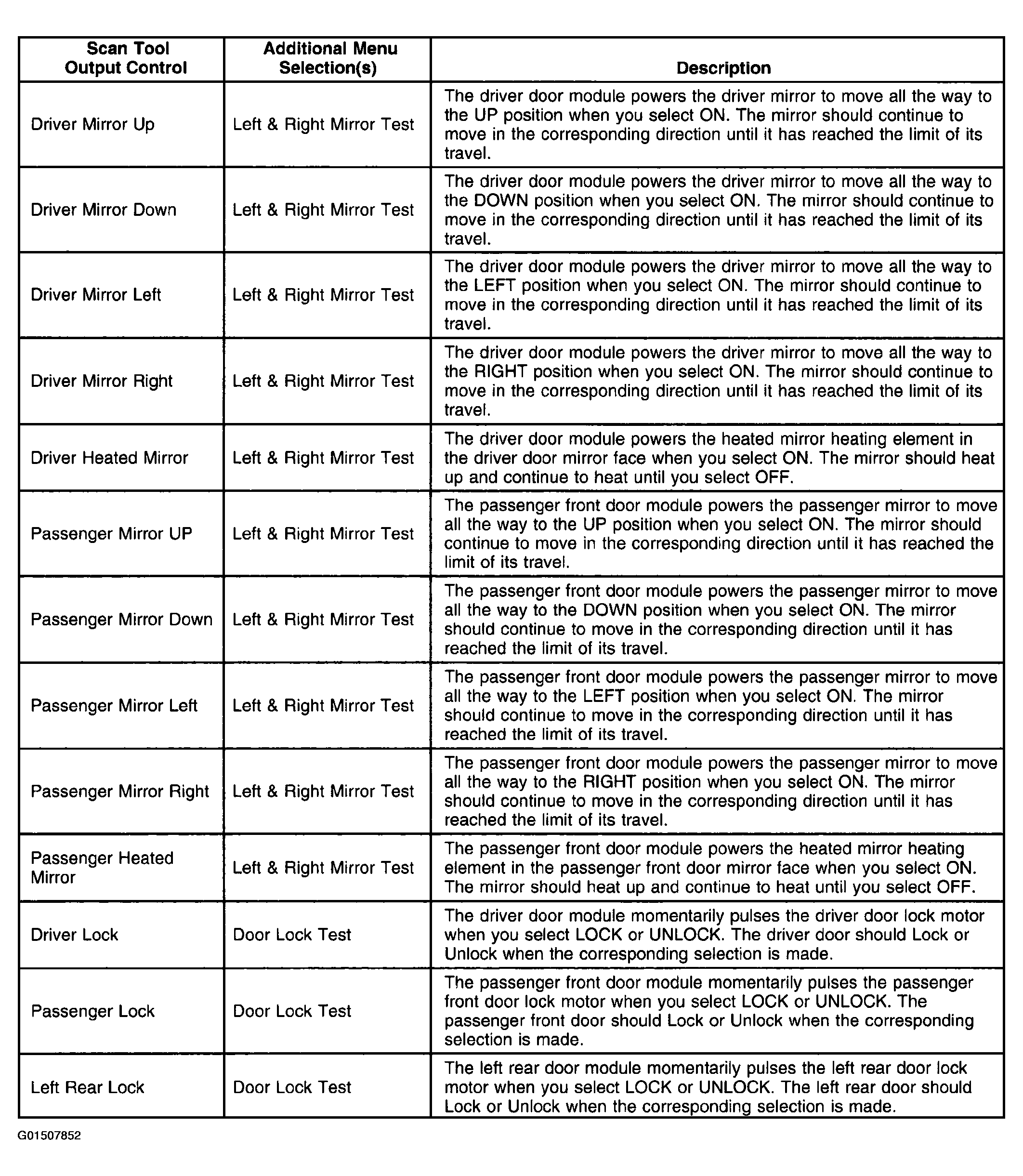

Fig 1: Scan Tool Output Controls Description Table (1 Of 2)
G01507852Courtesy of GENERAL MOTORS CORP.

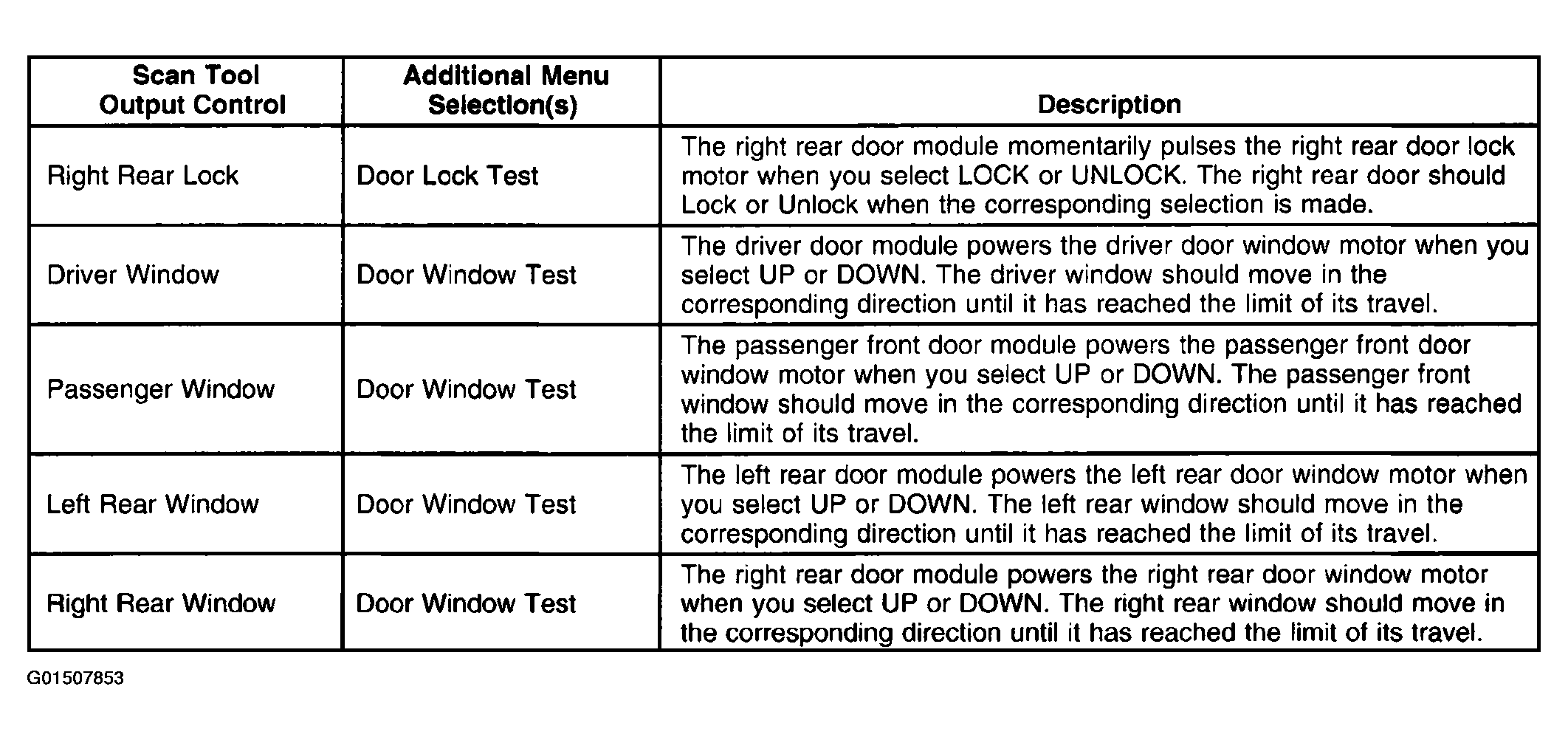

Fig 2: Scan Tool Output Controls Description Table (2 Of 2)
G01507853Courtesy of GENERAL MOTORS CORP.
