Wiper/Washer System Schematics (Windshield Wiper Switch and Fuse)

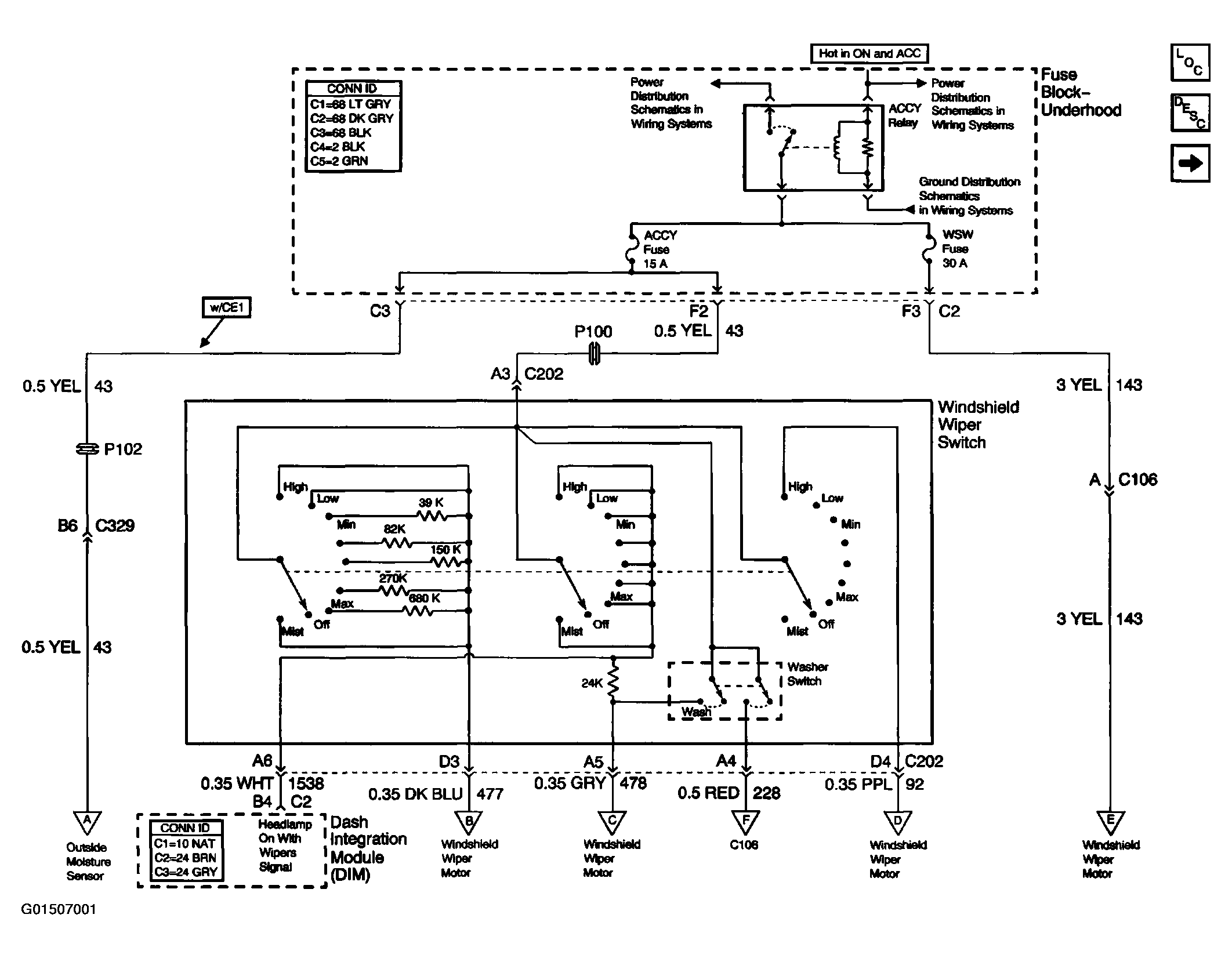

Fig 1: Wiper/Washer System Circuit Diagram (Windshield Wiper Switch & Fuse)
G01507001Courtesy of GENERAL MOTORS CORP.

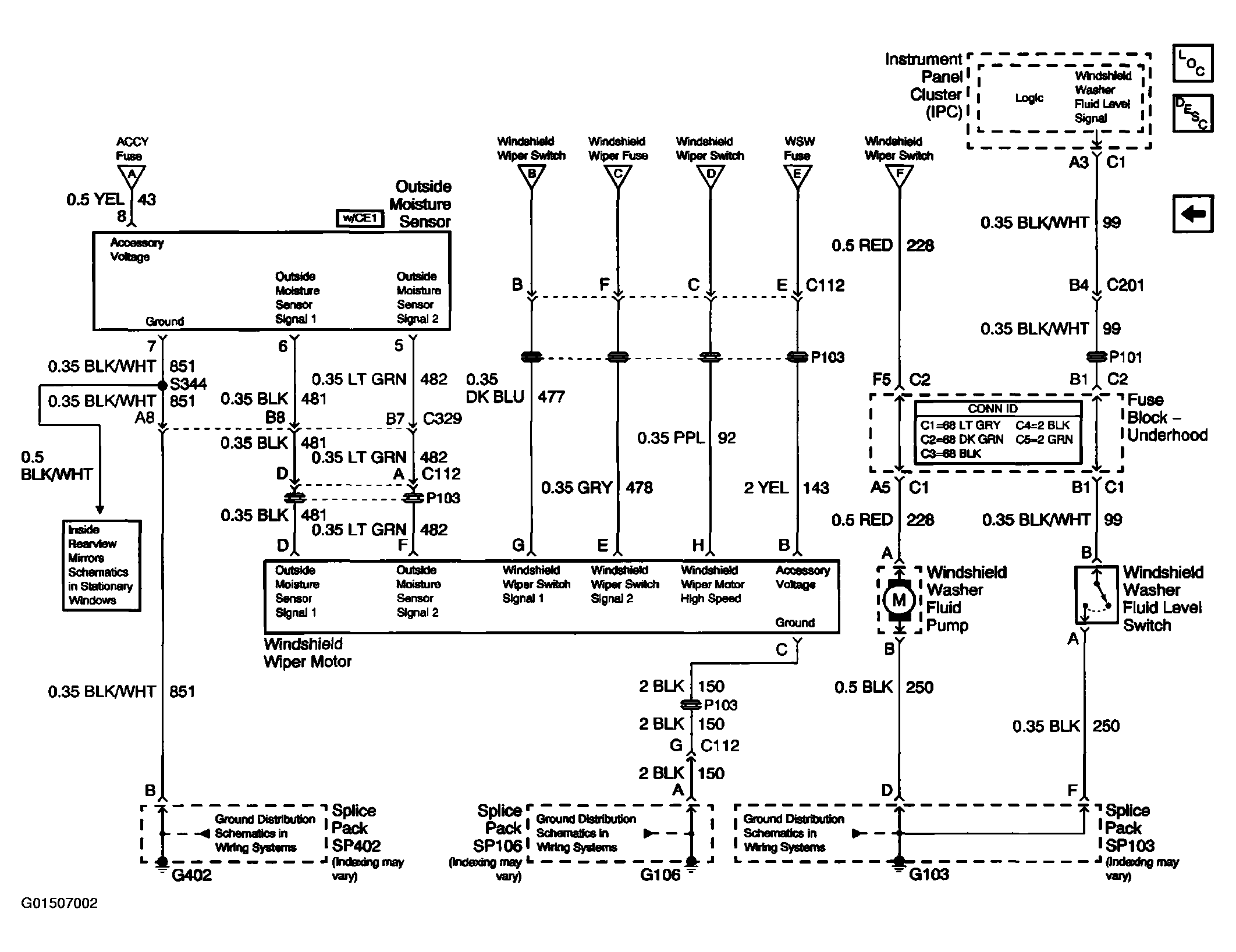

Fig 2: Wiper/Washer System Circuit Diagram (Outside Moisture Sensor (W/Ce1) Motor & Pump)
G01507002Courtesy of GENERAL MOTORS CORP.
