Installation Procedure

  1. Connect the electrical connectors (1) to the DIM (2).
  2. Install the Dash Integration Module (DIM) into the bracket.
  3. Install the right closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  4. Reprogram the DIM. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (IPM)  .

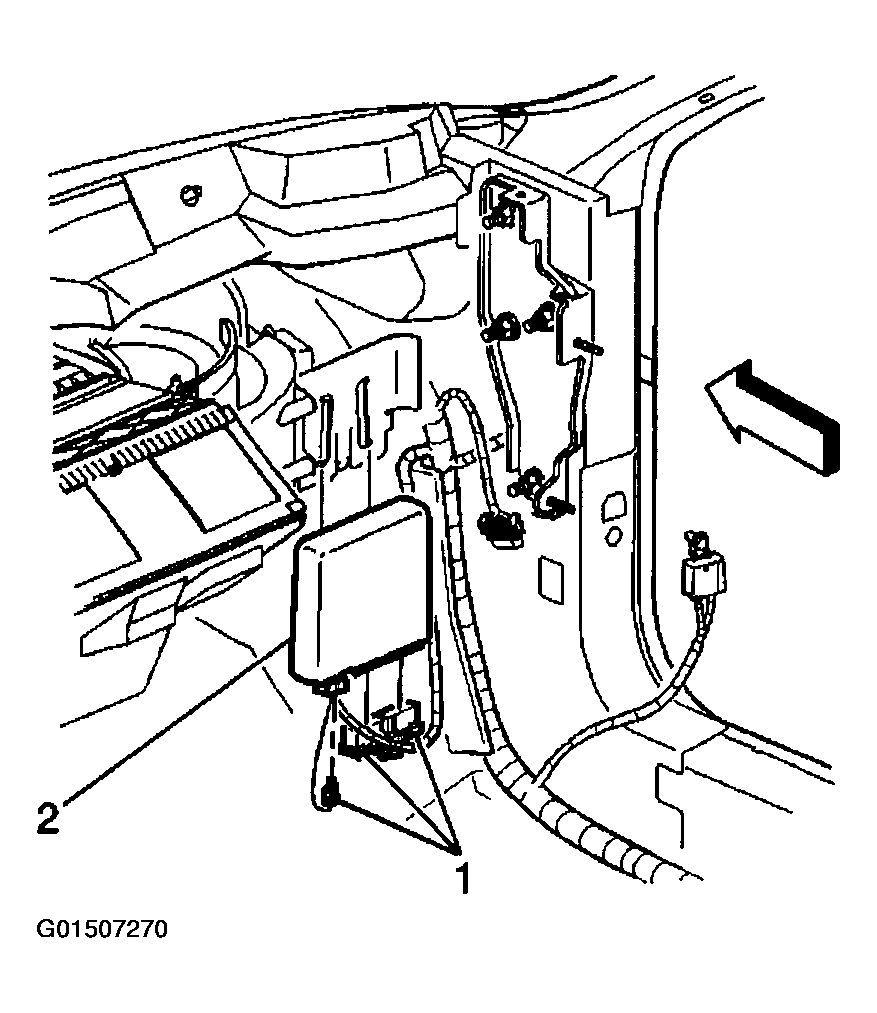

    5. Fig 1: Removing & Installing Dash Integration Module
    G01507270Courtesy of GENERAL MOTORS CORP.
