Body Control System Connector End Views

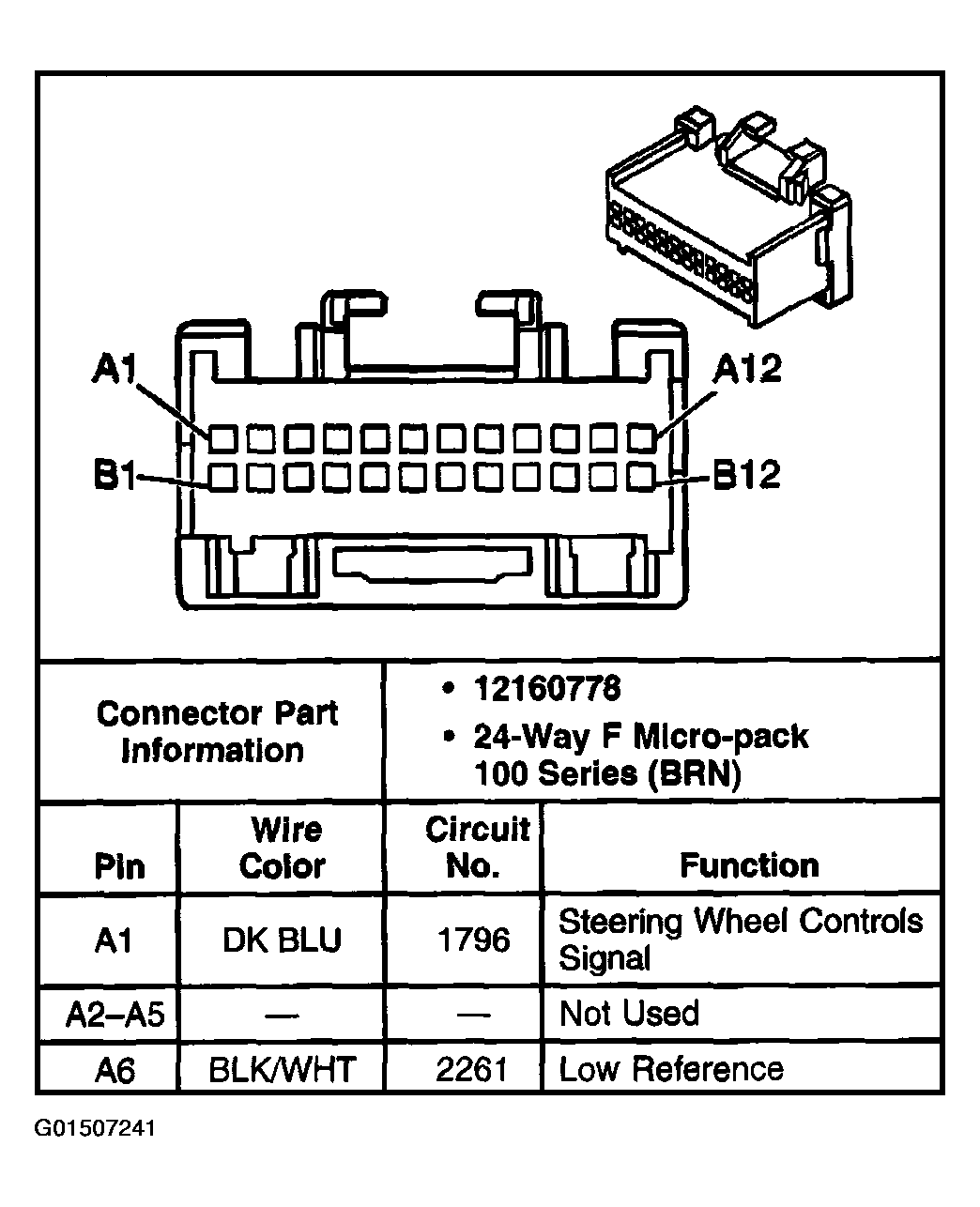

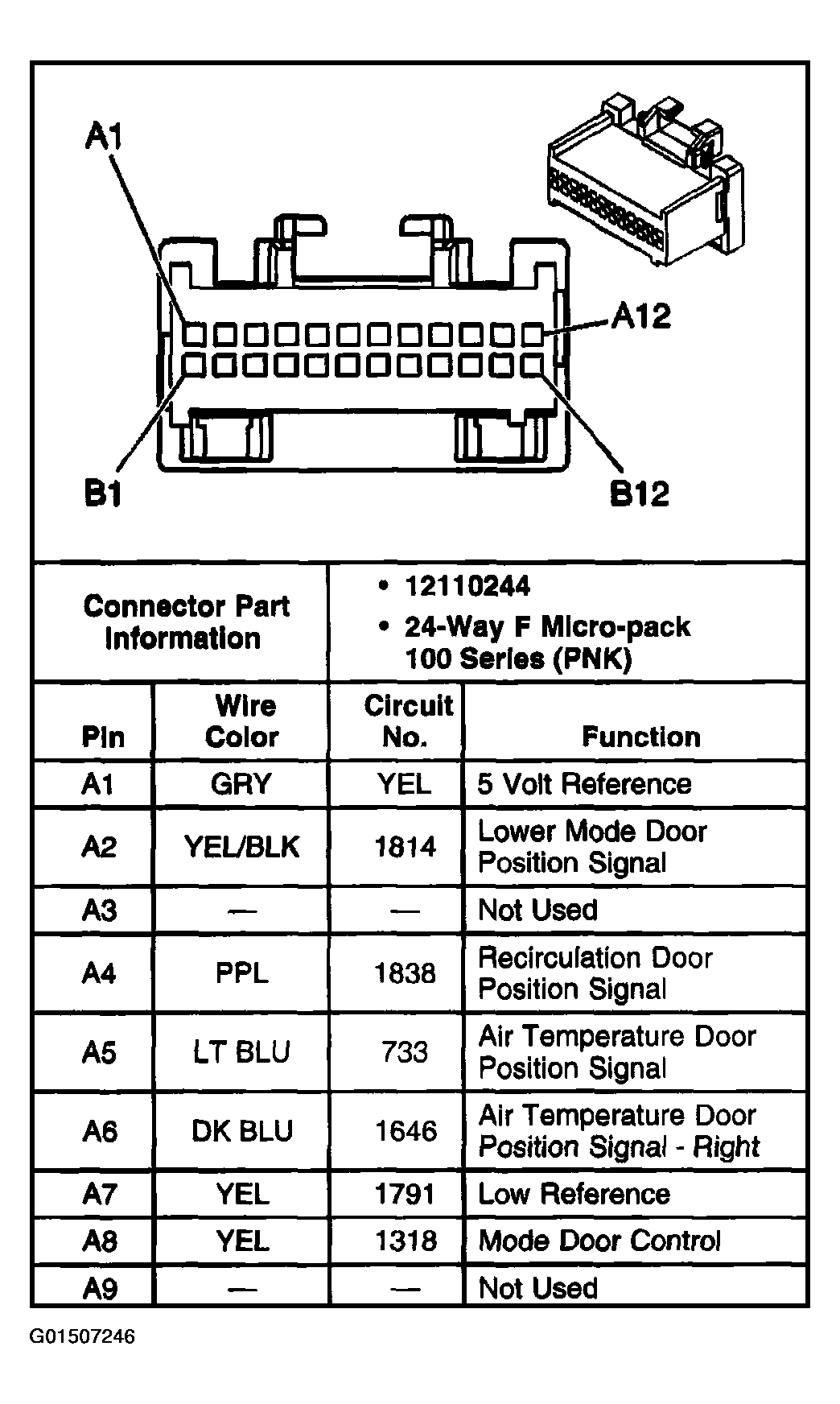

Fig 1: Identifying Dash Integration Module (DIM) C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

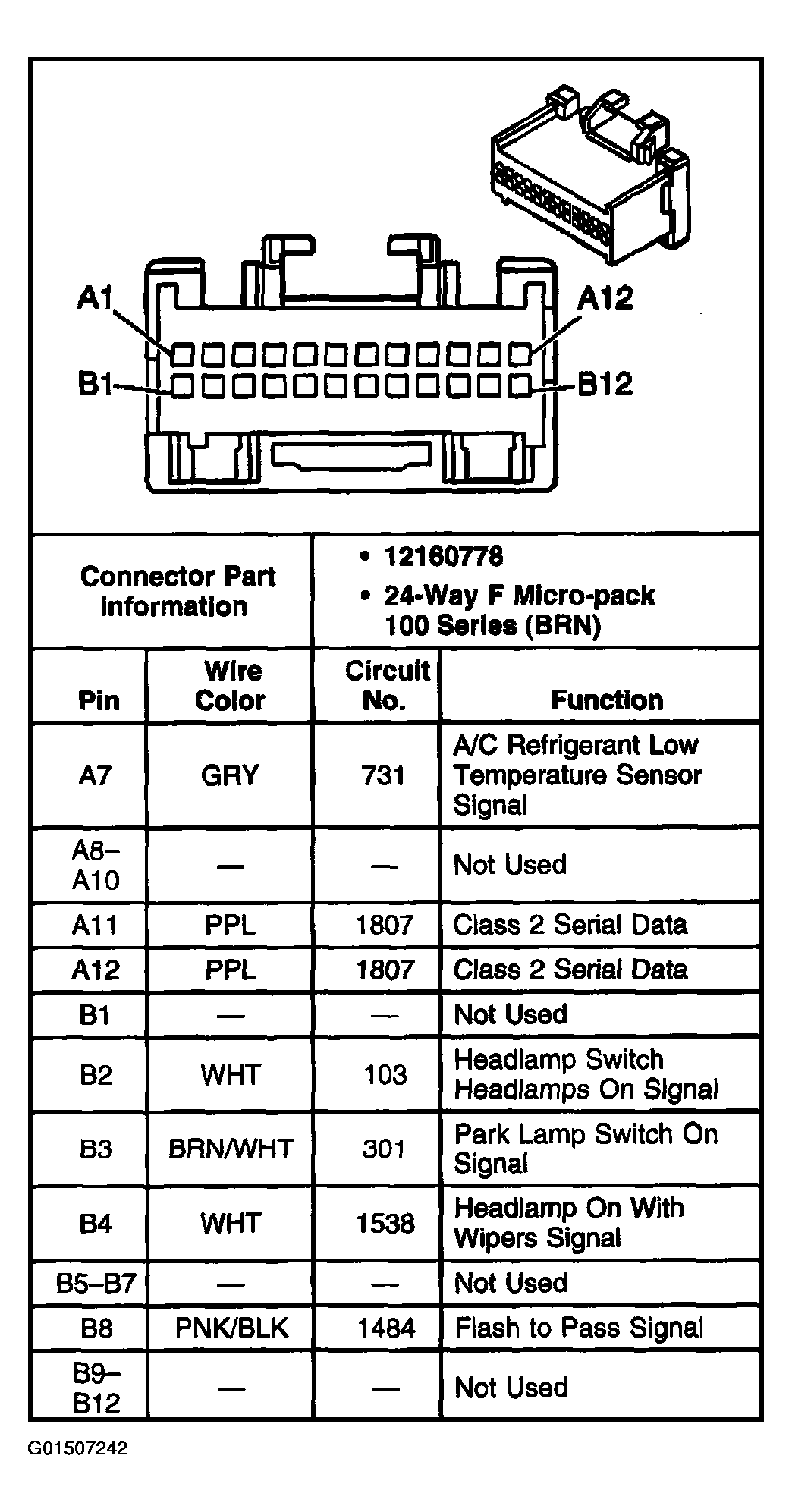

Fig 2: Identifying Dash Integration Module (DIM) C2 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

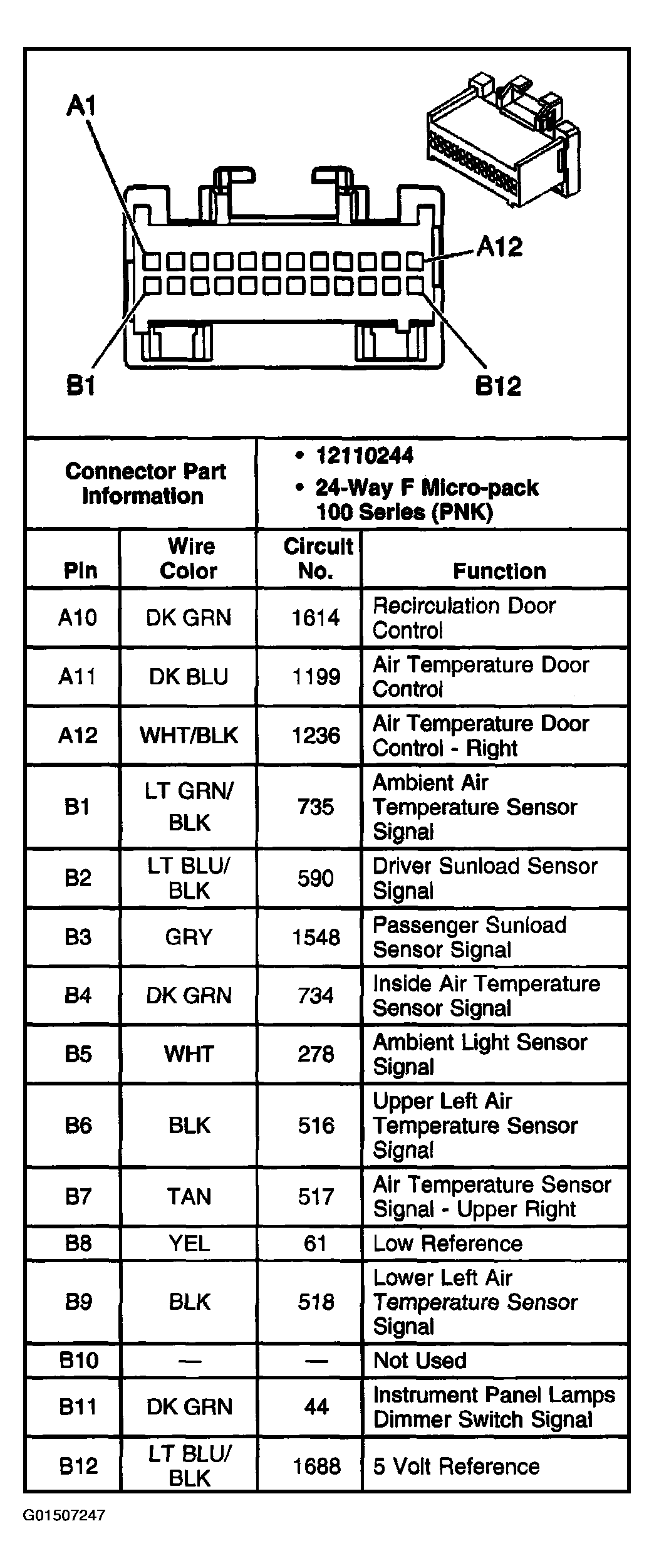

Fig 3: Identifying Dash Integration Module (DIM) C2 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

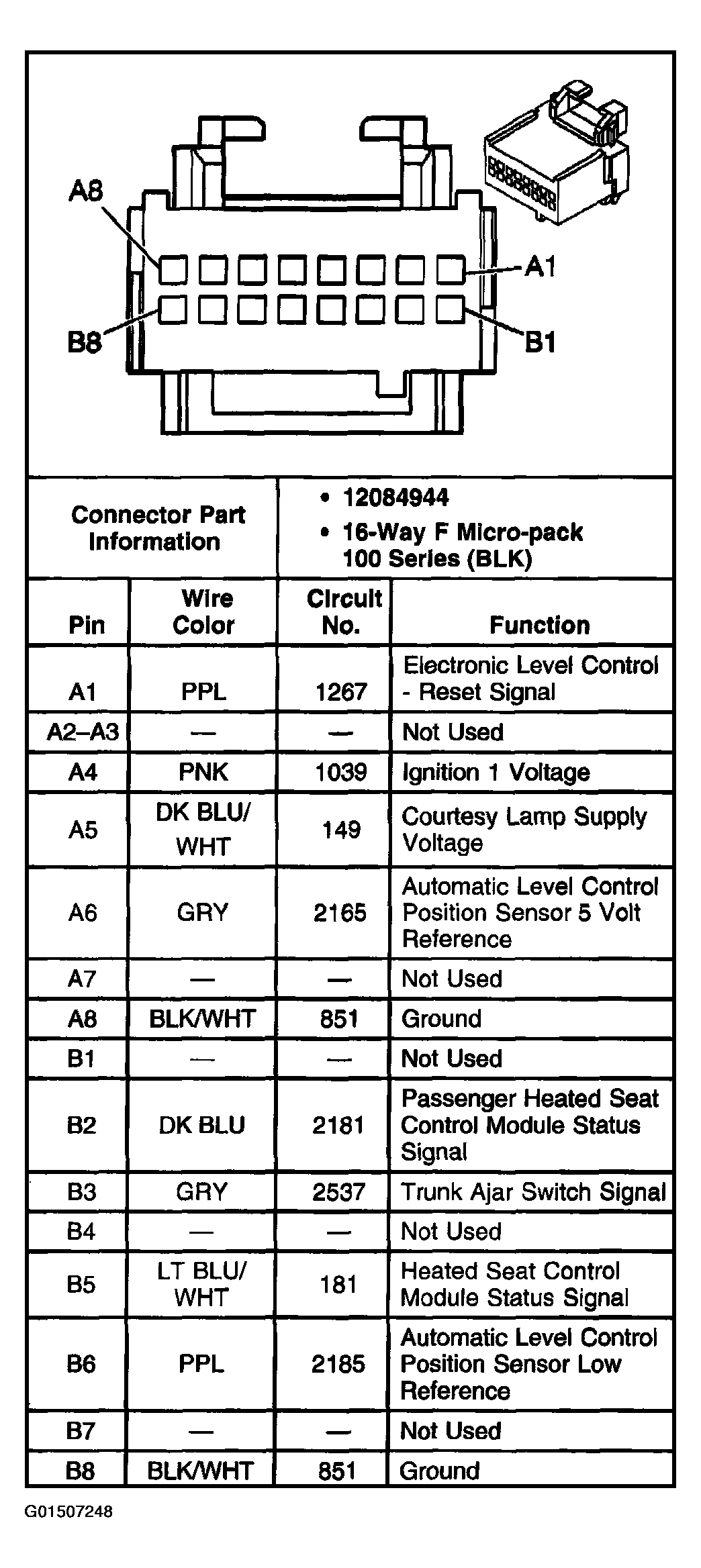

Fig 4: Identifying Dash Integration Module (DIM) C3 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

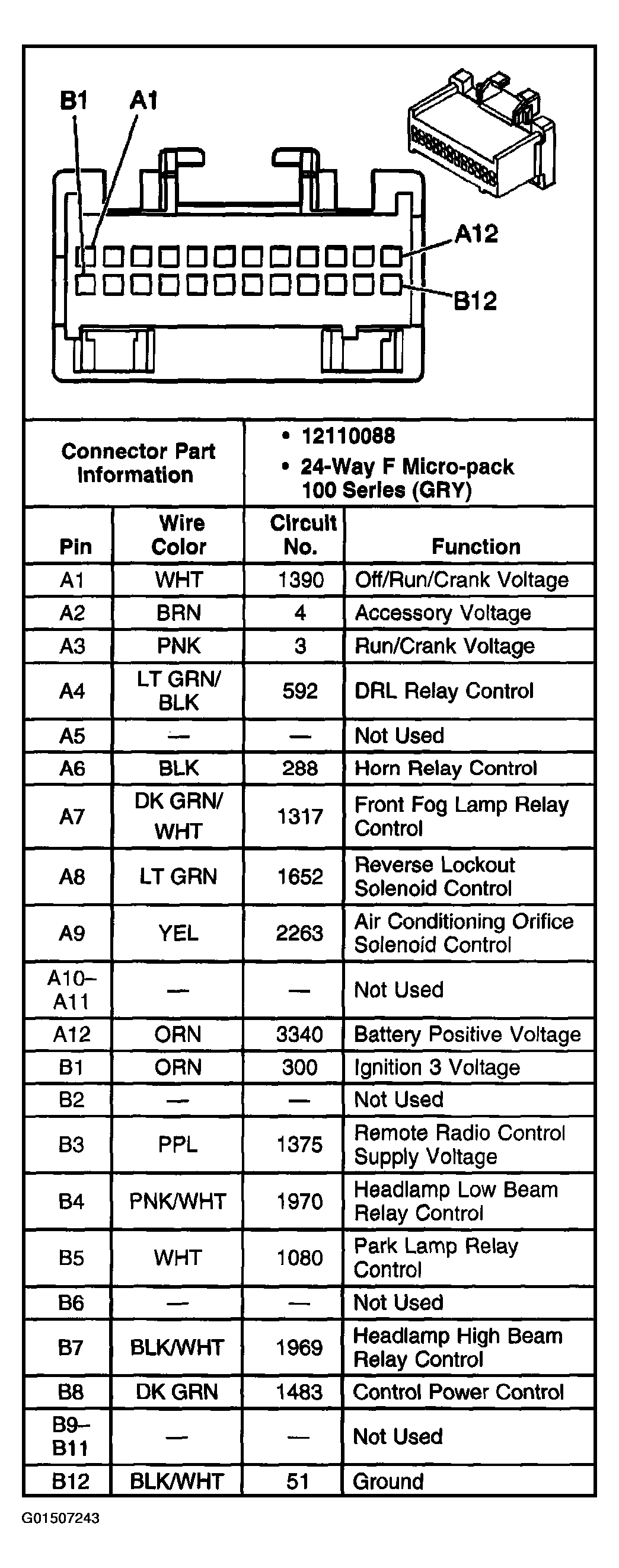

Fig 5: Instrument Panel Module (IPM) C1 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Instrument Panel Module (IPM) C1 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

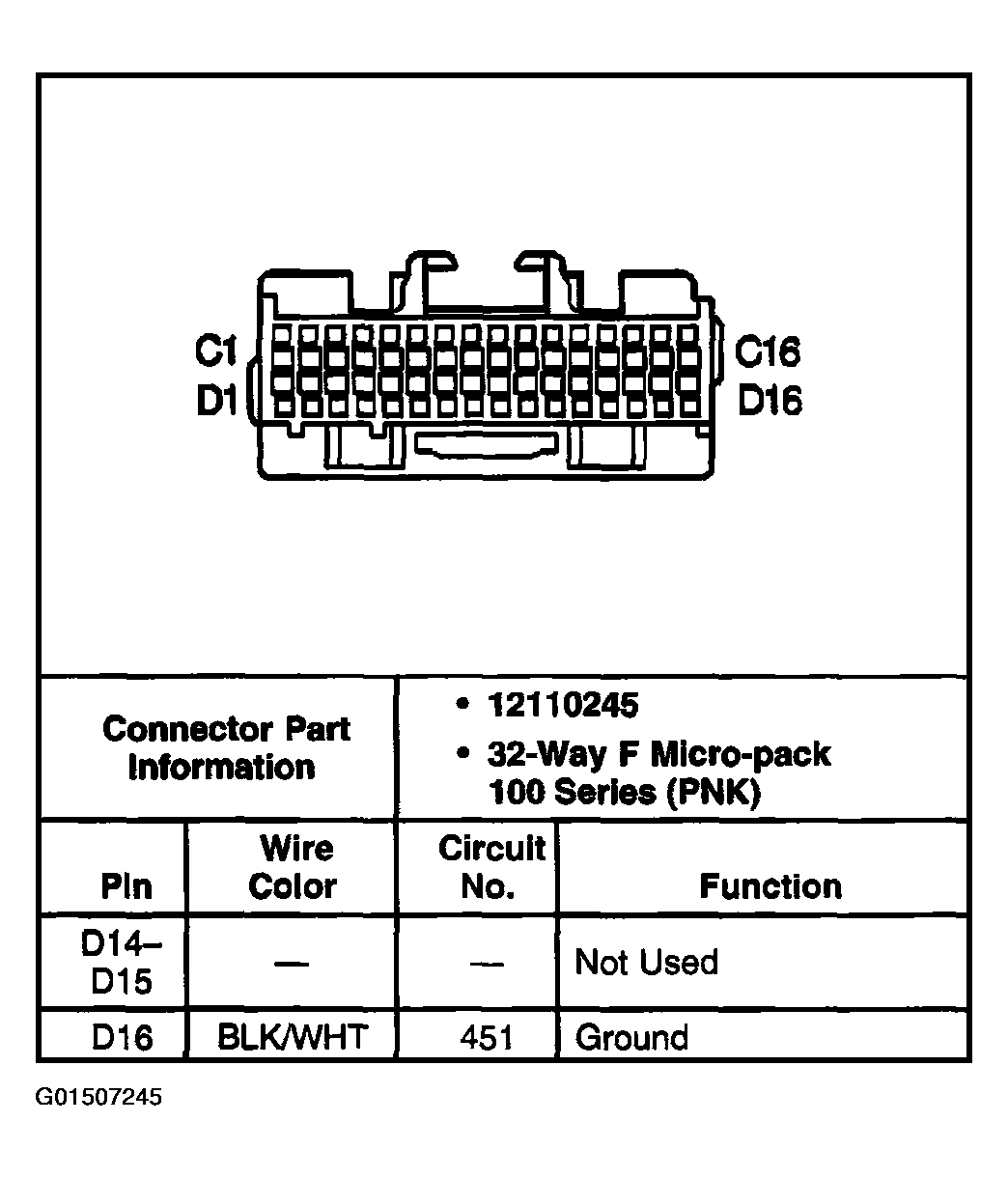

Fig 7: Instrument Panel Module (IPM) C2 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

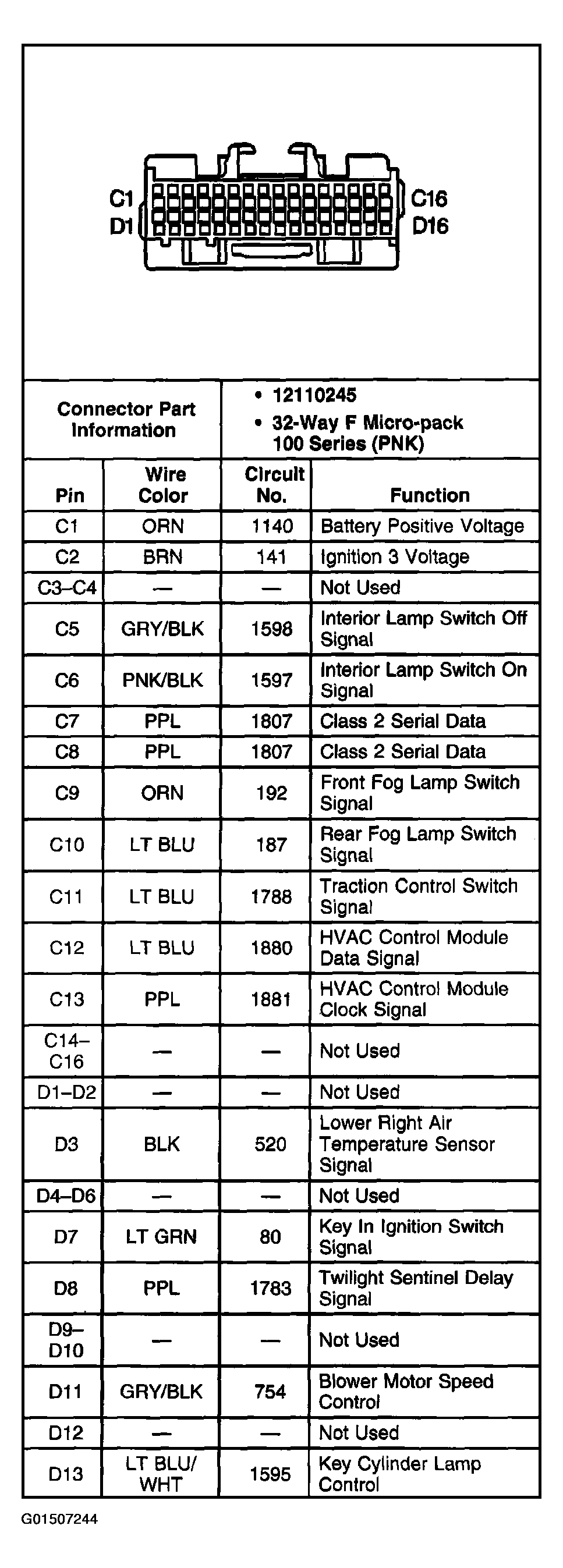

Fig 8: Instrument Panel Module (IPM) C2 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

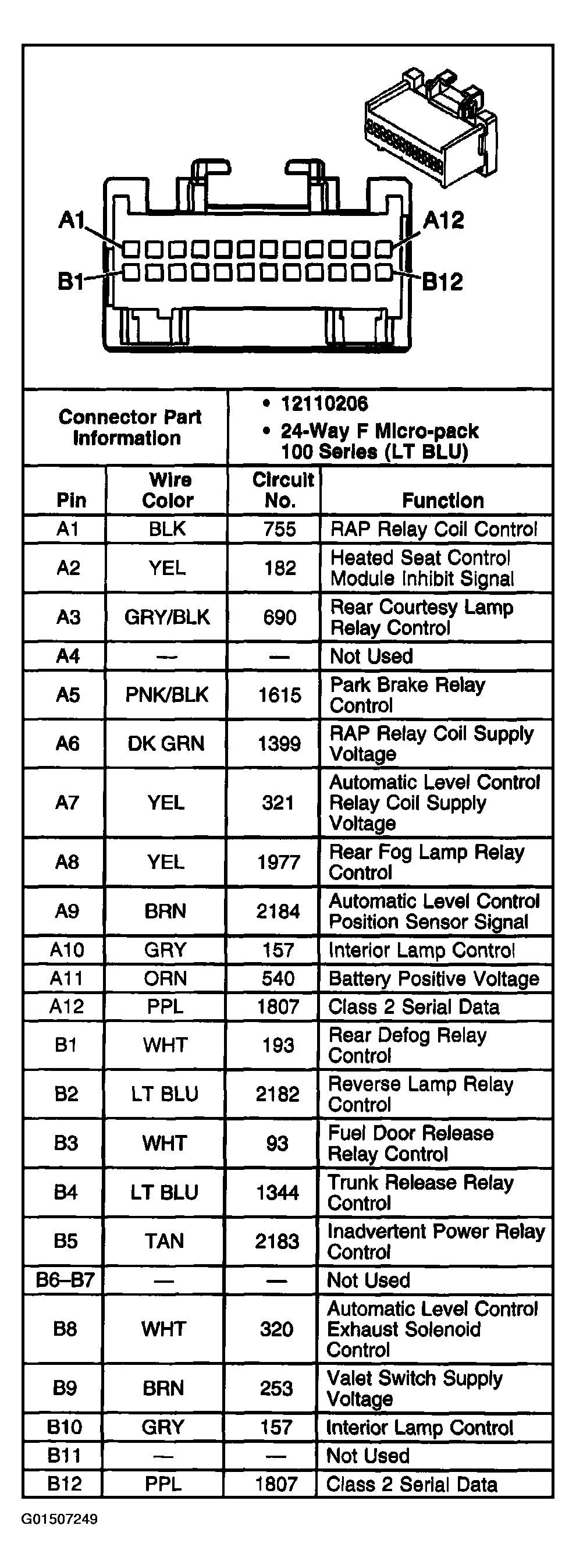

Fig 9: Identifying Rear Integration Module (RIM) C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Rear Integration Module (RIM) C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.
