Installation Procedure

  1. Install the cruise control module to the mounting bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the mounting bracket bolt to the cruise control module.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

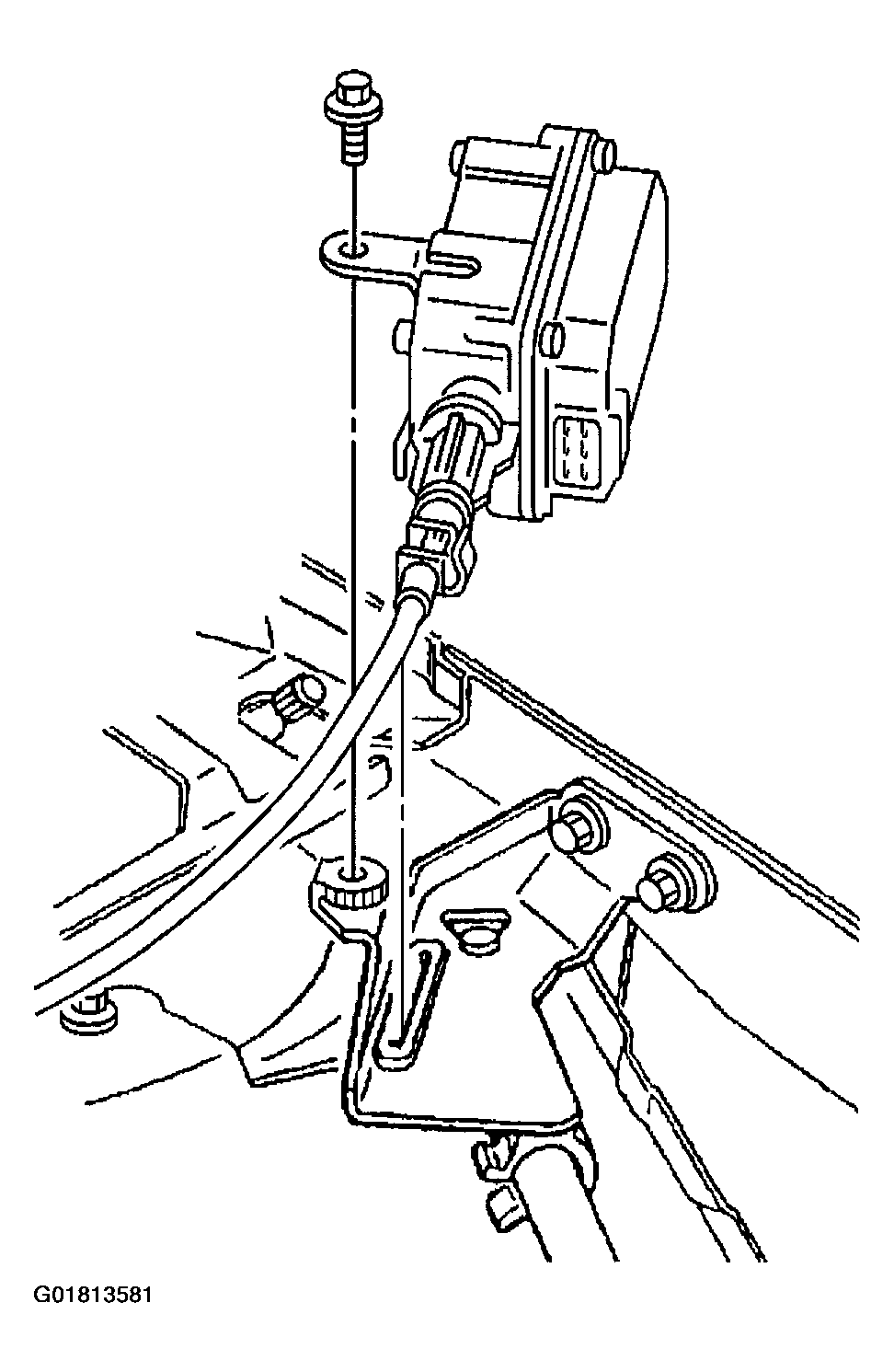

    Fig 1: Installing Cruise Control Module To Mounting Bracket
    G01813581Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the module.
  4. Install the cruise control cable to the module. Refer to Cruise Control Cable Replacement .
  5. Adjust the cruise control cable. Refer to Cruise Control Cable Replacement .

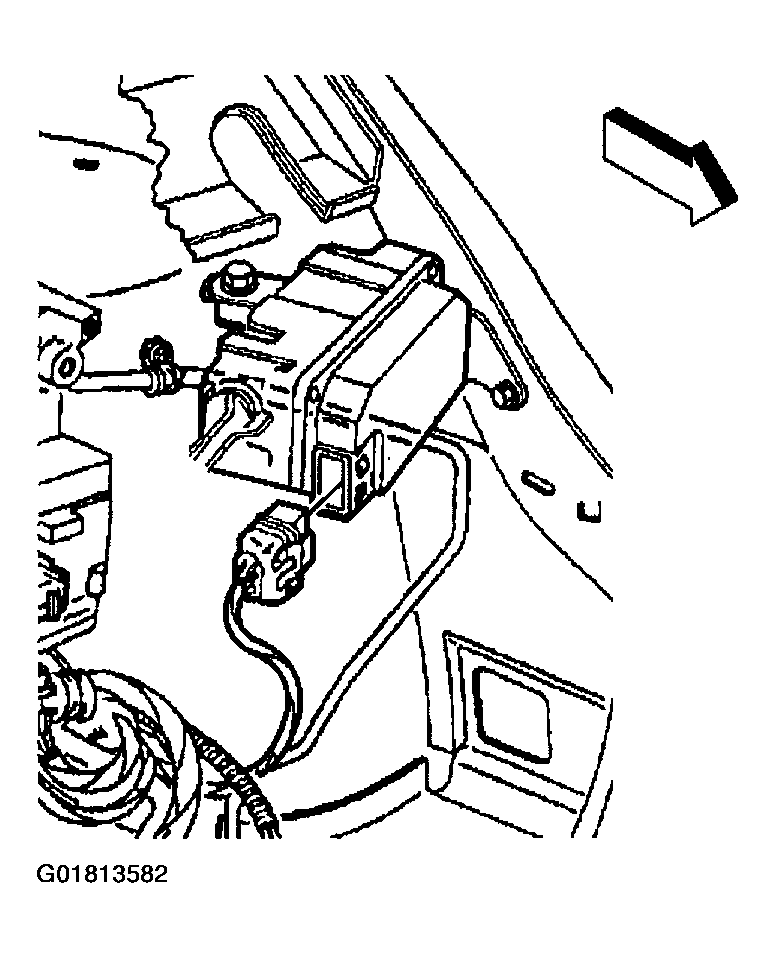

    Fig 2: Connecting Electrical Connector (Cruise Control Module)
    G01813582Courtesy of GENERAL MOTORS CORP.
