Intake Manifold Disassemble

Important:  Do not reuse the intake manifold-to-cylinder head sealing gaskets.

1. Remove and discard the intake manifold-to-cylinder head gaskets.

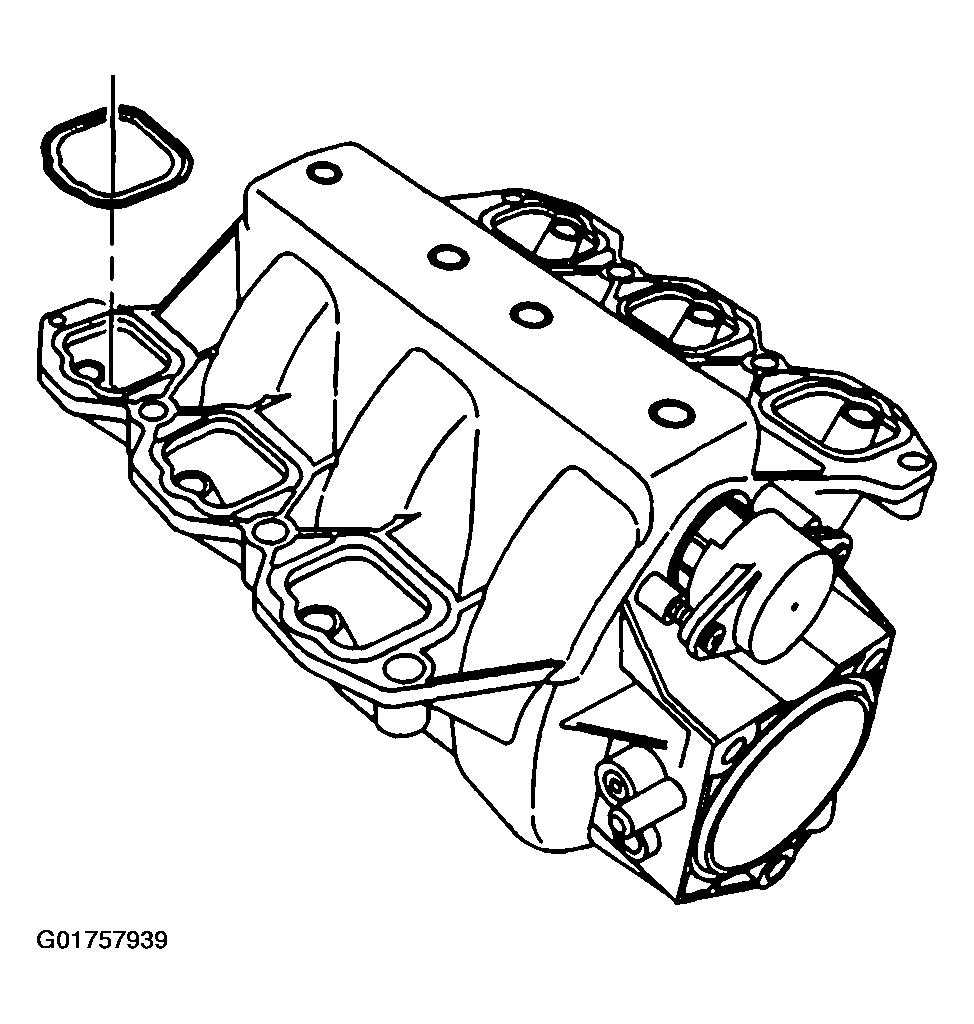

   Fig 1: Removing Intake Manifold-To-Cylinder Head Gaskets


2. Remove the accelerator cable bracket bolt.
3. Remove the throttle body nuts.
4. Remove the accelerator cable bracket, throttle body and throttle body gasket.

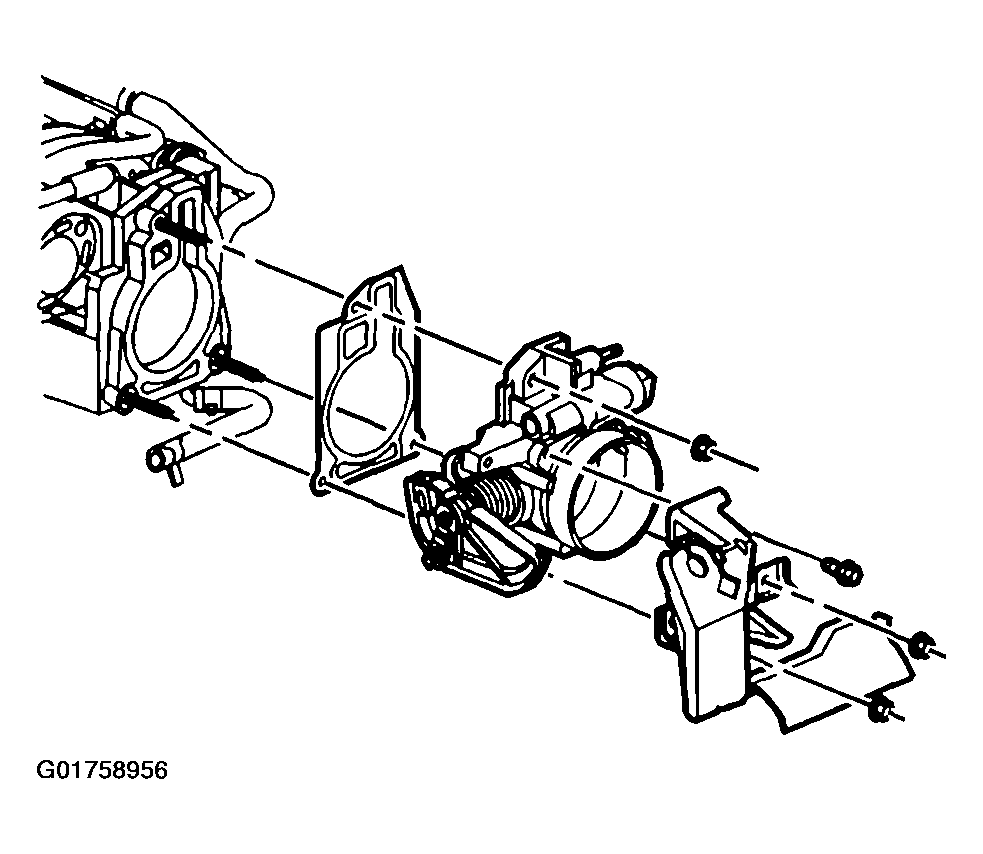

   Fig 2: Removed Accelerator Cable Bracket Bolt, Throttle Body Nuts And Accelerator Cable Bracket


5. Remove the brake booster vacuum hose (1).

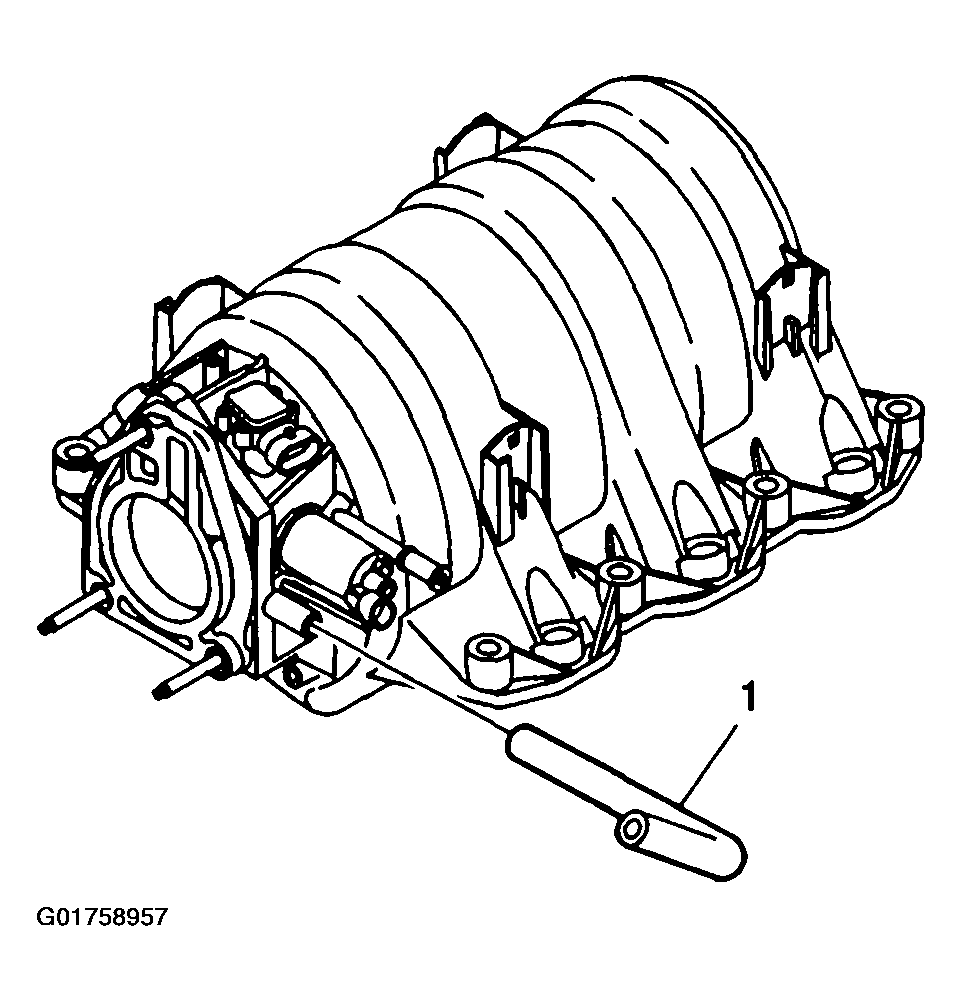

   Fig 3: Removing Brake Booster Vacuum Hose


6. Remove the throttle body heater hoses from the throttle body adapter heater plate.

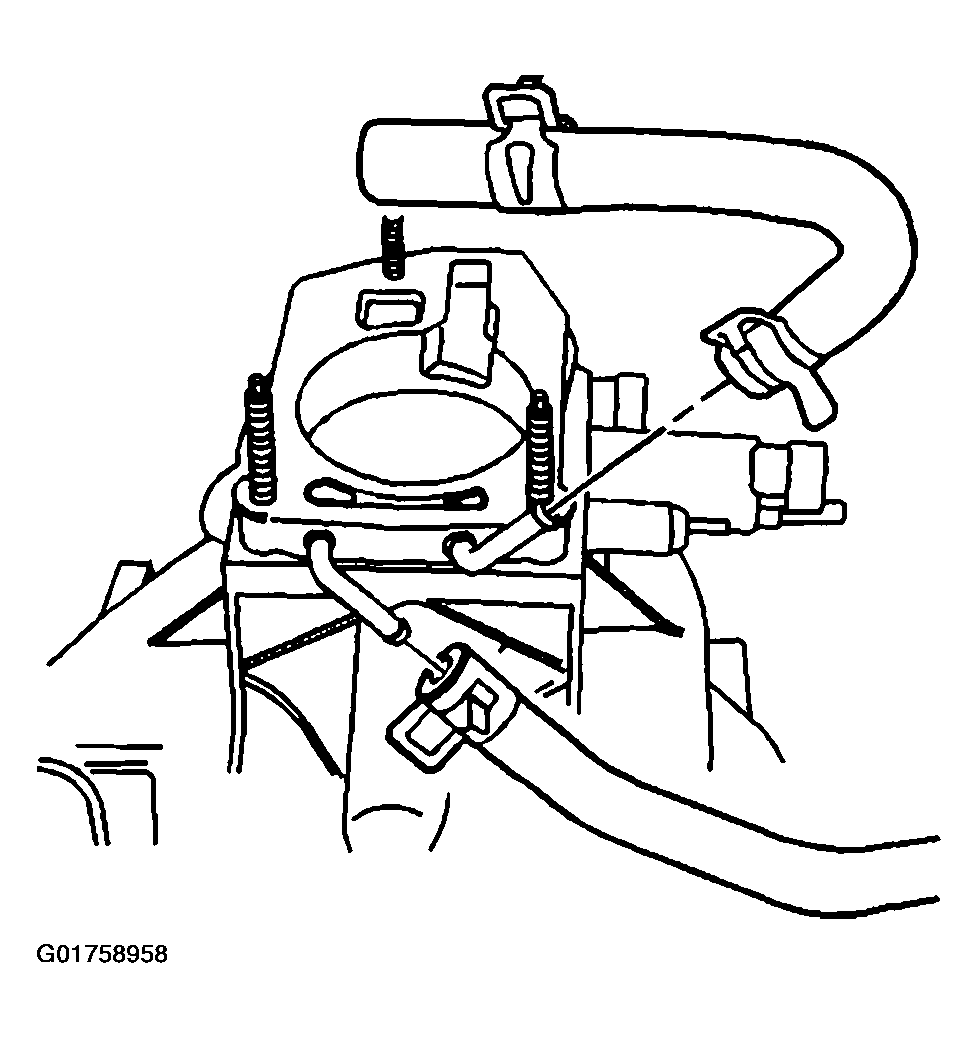

   Fig 4: Removing Throttle Body Heater Hoses From Throttle Body Adapter Heater Plate


7. Remove the MAP sensor from the top of the throttle body mounting location.

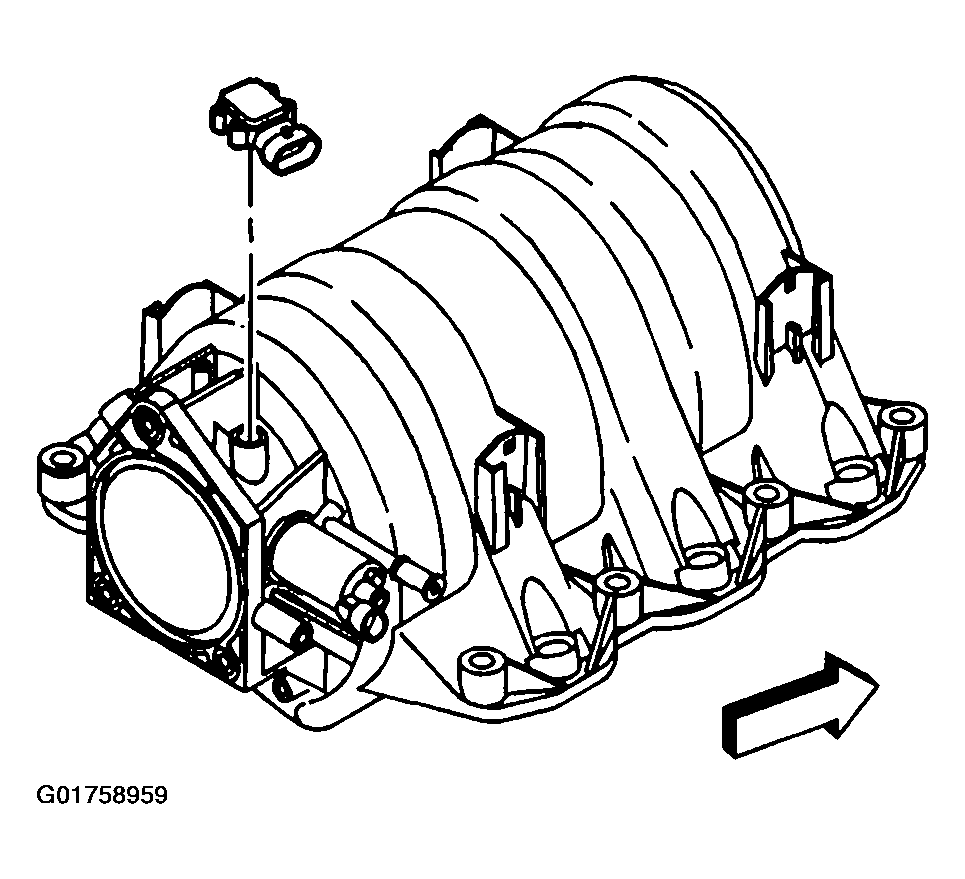

   Fig 5: Removing MAP Sensor From Top Of Throttle Body Mounting Location


8. Remove the purge solenoid bolt.
9. Remove the purge solenoid.

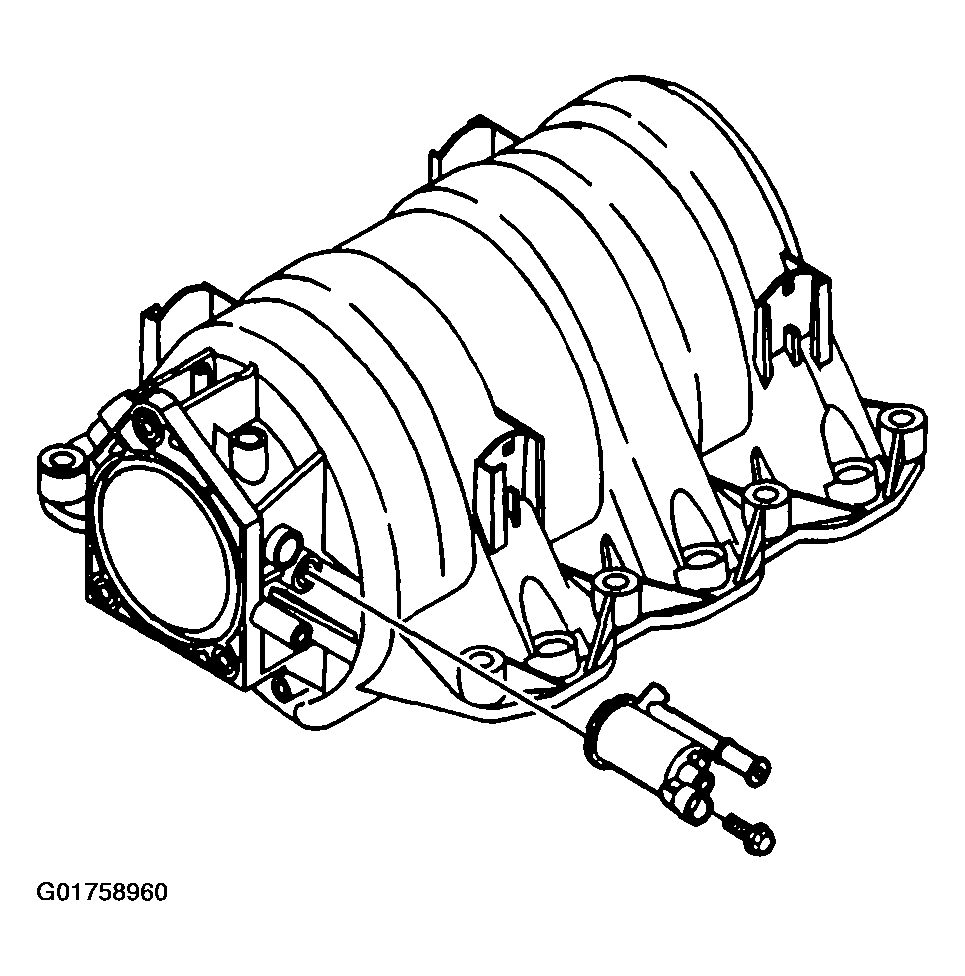

   Fig 6: Removing Purge Solenoid


10. Remove the throttle body adapter heater plate bolt and studs.
11. Remove the throttle body adapter heater plate from the intake manifold.
    Fig 7: Removing Throttle Body Adapter Heater Plate From Intake Manifold


12. Remove the pressure relief valve bolts.
13. Remove the pressure relief valve.

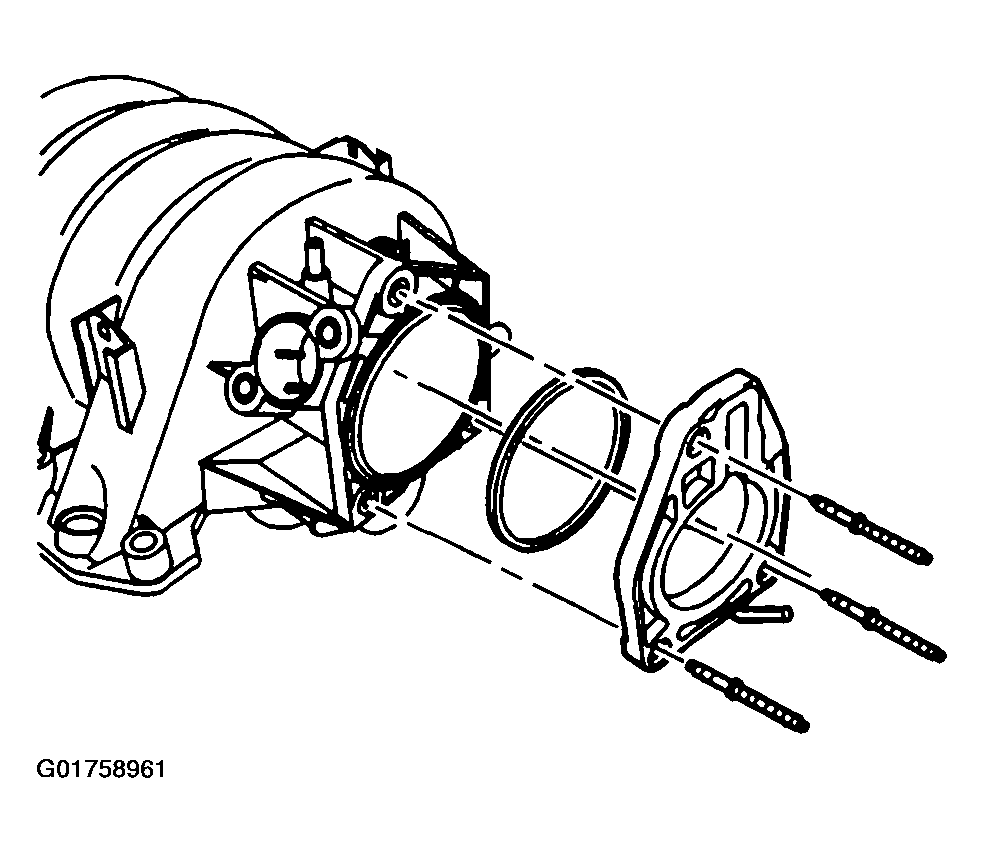

    Fig 8: Removing Pressure Relief Valve
