Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the battery. Refer to Battery Replacement .
  3. Remove the battery tray bolts.
  4. Remove the battery tray.

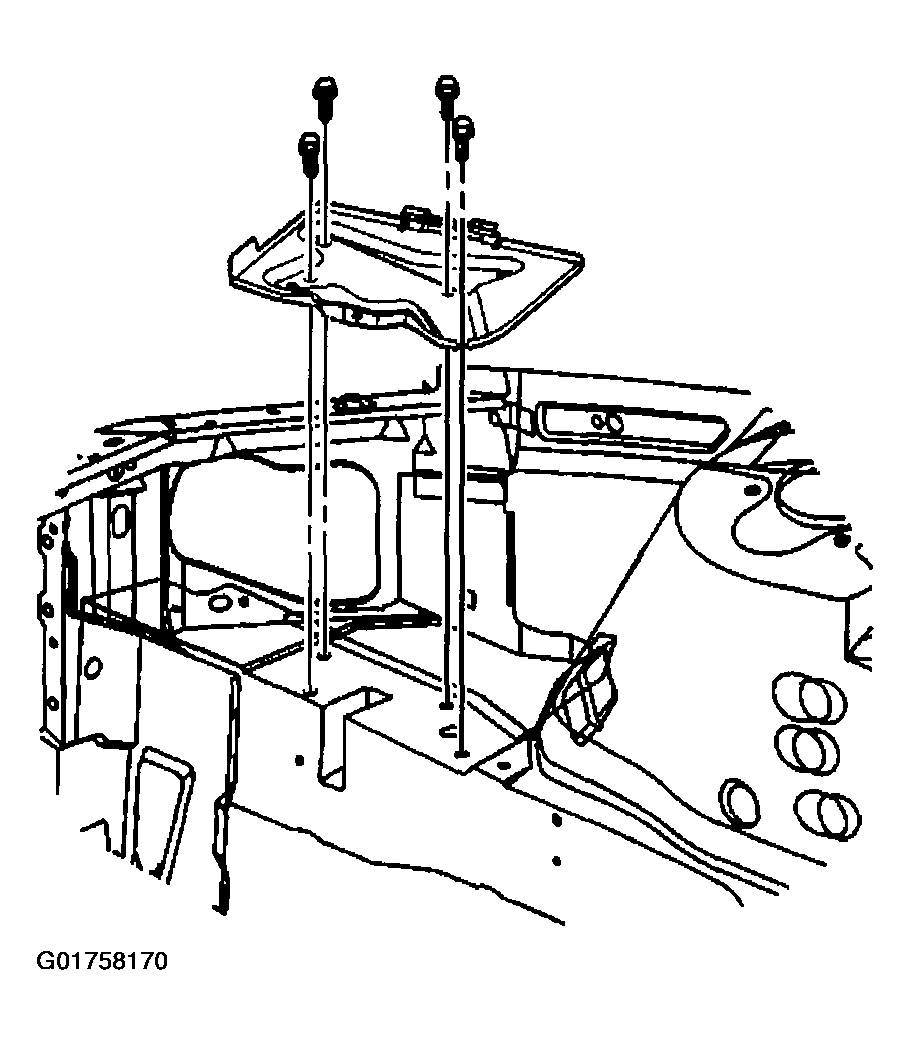

    Fig 1: Removing Battery Tray
    G01758170Courtesy of GENERAL MOTORS CORP.
