Installation Procedure

  1. Push back the rear seat back.
  2. Align the rear shoulder belt guide to the lower rear quarter trim panel.
  3. Install the push-pin retainer to the rear shoulder belt guide.

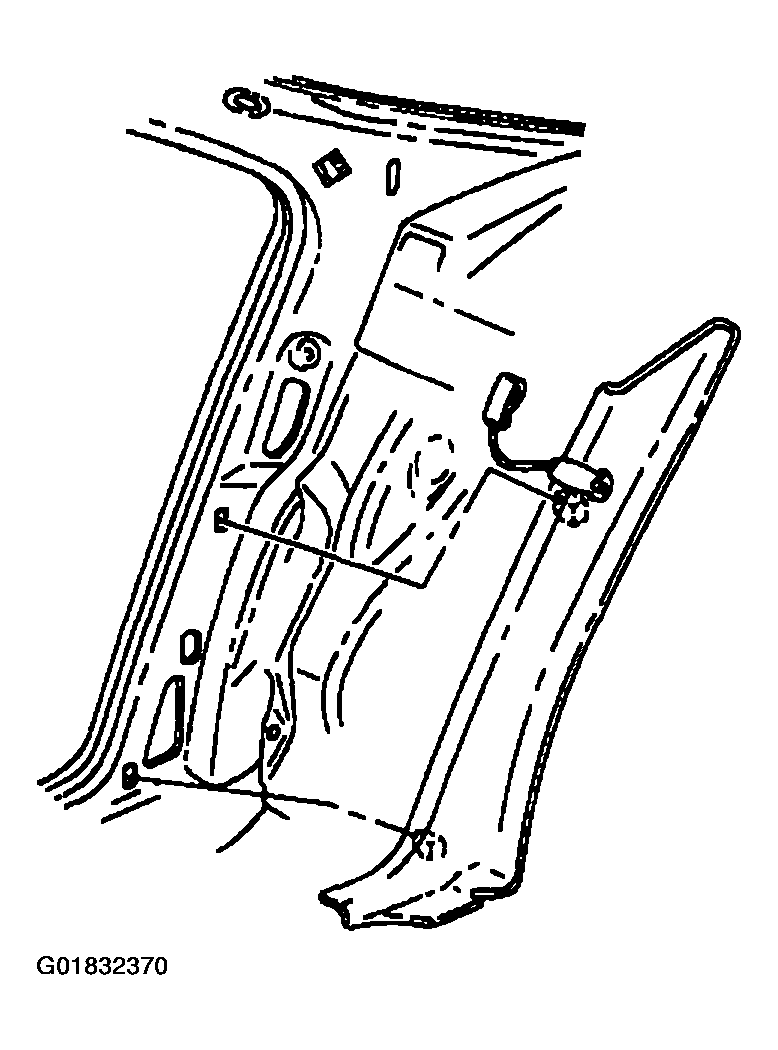

    Fig 1: Installing Push-Pin Retainer To Rear Shoulder Belt Guide
    G01832370Courtesy of GENERAL MOTORS CORP.
