Engine Component Description: Notes

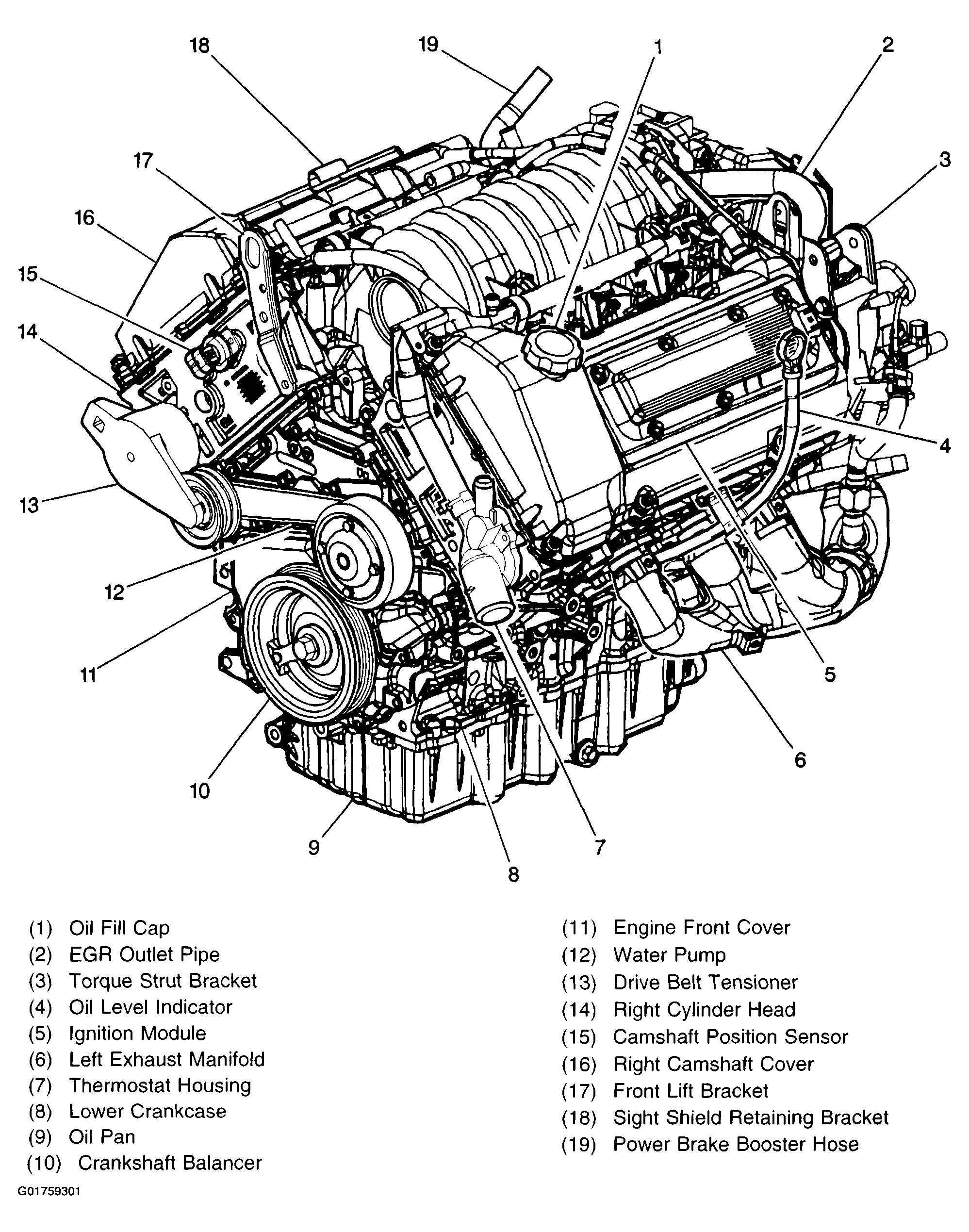

Fig 1: Complete Engine Front View

G01759301

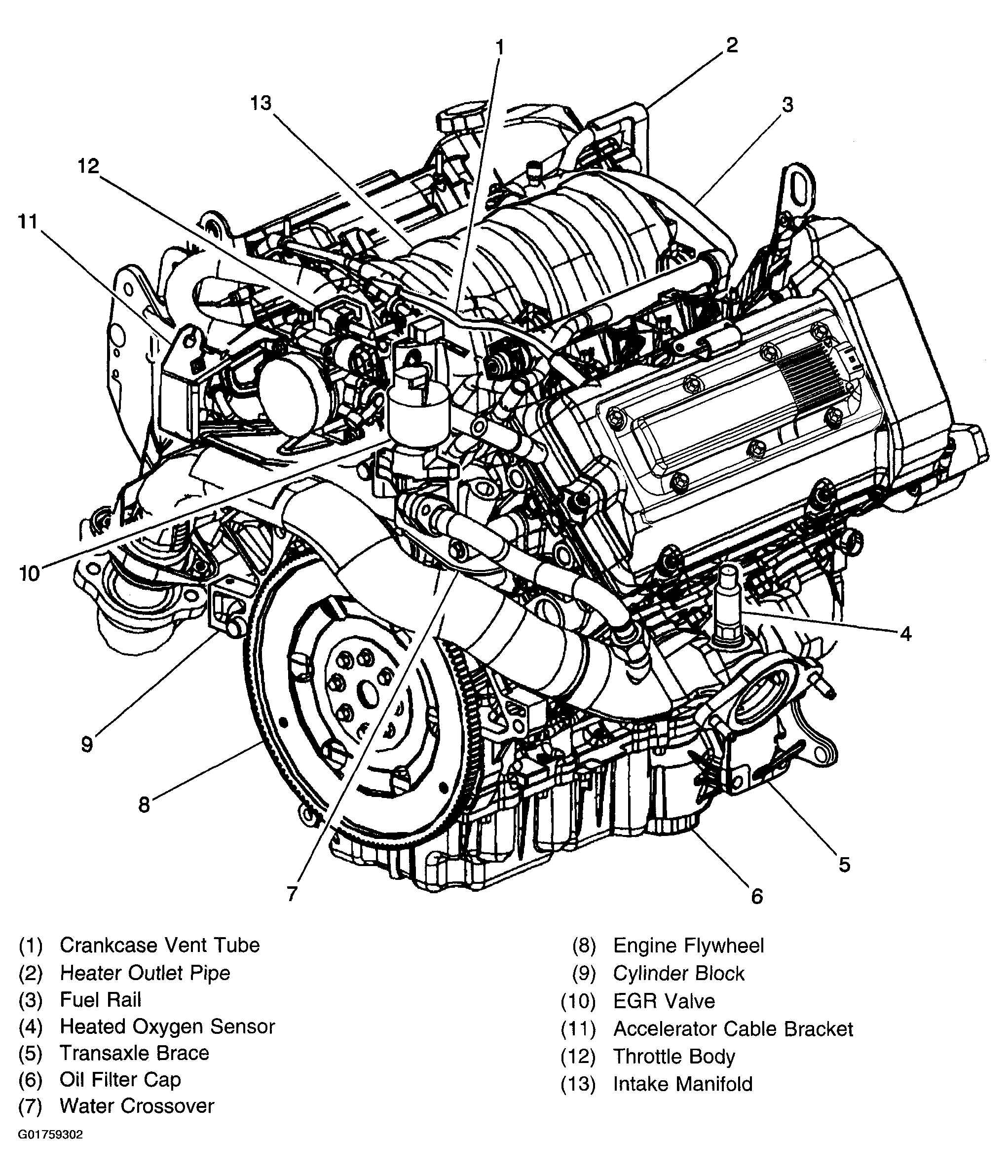

Fig 2: Complete Engine Rear View

G01759302
