Removal Procedure

  1. Raise and support the vehicle.
  2. Support the exhaust system.
  3. Remove the exhaust pipe hanger insulator from the exhaust pipe hanger bracket and the exhaust pipe.

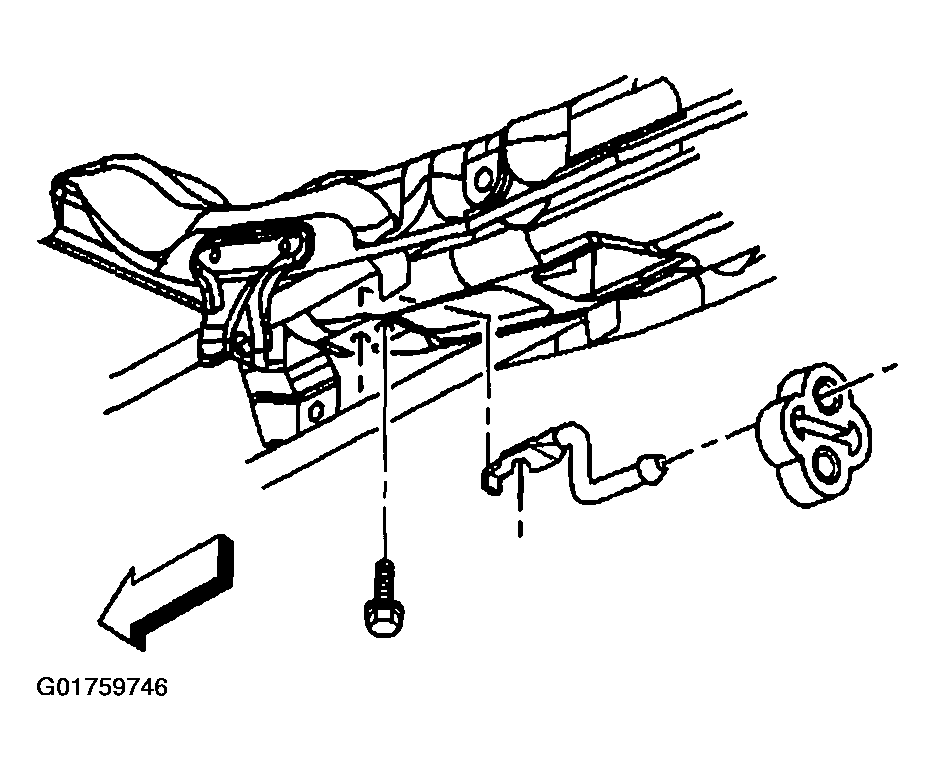

    Fig 1: Removing Exhaust Pipe Hanger Insulator From Exhaust Pipe Hanger Bracket & Exhaust Pipe
    G01759746Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust pipe rear hanger insulators from the muffler rear and the hanger brackets.

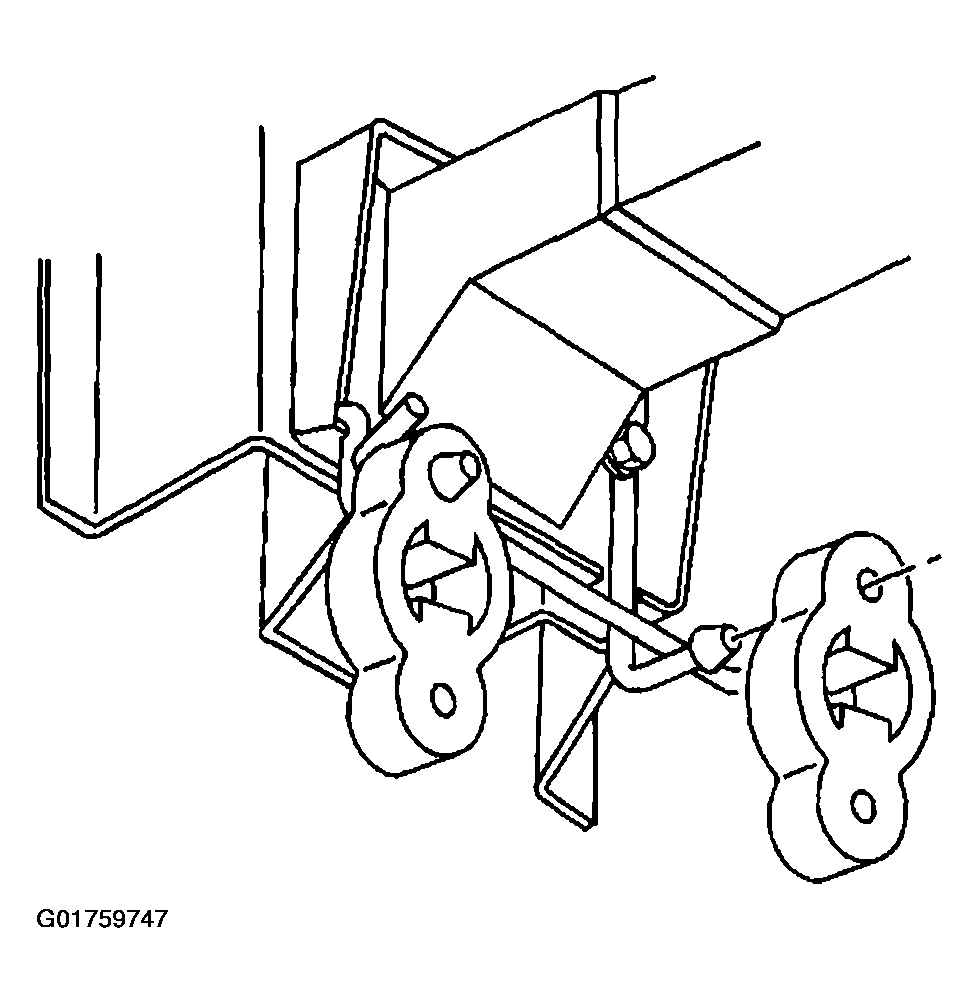

    Fig 2: Removing Exhaust Pipe Rear Hanger Insulators From Muffler Rear & Hanger Brackets
    G01759747Courtesy of GENERAL MOTORS CORP.
