Installation Procedure

  1. Align the front floor console trim plate to the front floor console.
  2. Install the traction control switch to the front floor console trim plate. Refer to TRACTION CONTROL SWITCH REPLACEMENT .
  3. Install the front floor console trim plate to the front floor console pressing into place until fully seated.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the screws to front floor console trim plate.

    Tighten

    Tighten the front floor console trim plate screws to 2N.m (18 lb in).

  5. Close the front floor console cupholder.
  6. Lower the front floor console armrest.

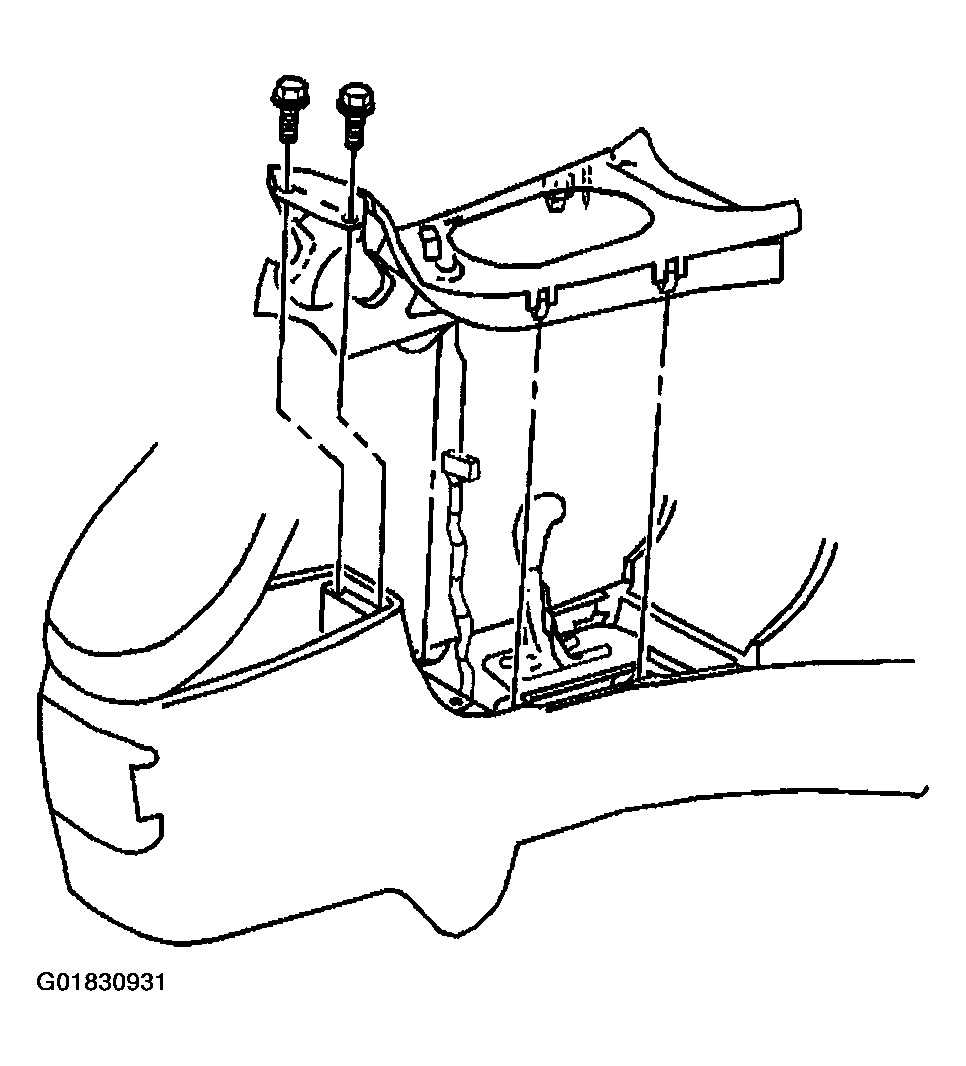

    Fig 1: Installing Front Floor Console Trim Plate & Screws
    G01830931Courtesy of GENERAL MOTORS CORP.
