Installation Procedure

  1. Install the hub and bearing assembly (1) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT - REAR (DISC BRAKES) in Rear Suspension.

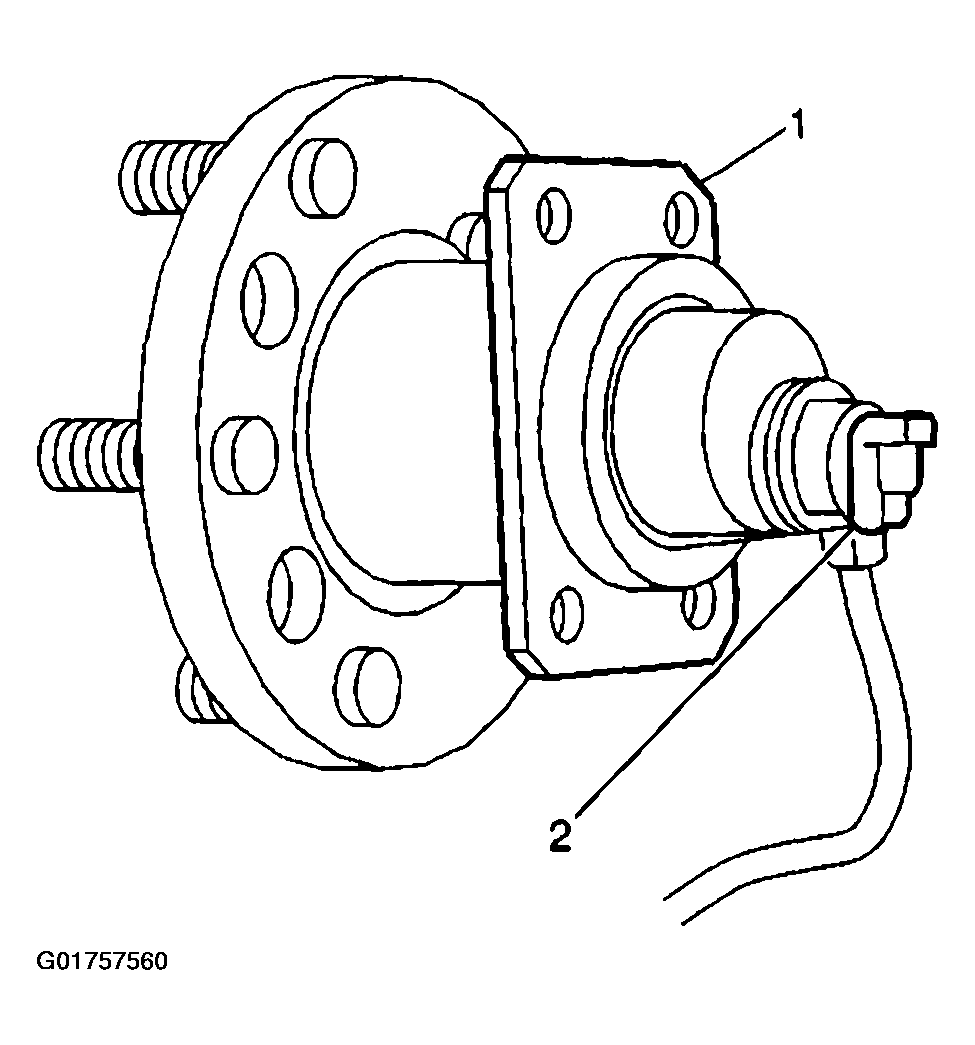

    Fig 1: Install Hub And Bearing Assembly To Vehicle
    G01757560Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the rear wheel speed sensor.
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  4. Lower the vehicle.
  5. Turn the ignition switch to the ON position, with the engine off.
  6. Perform the Diagnostic System Check - ABS .

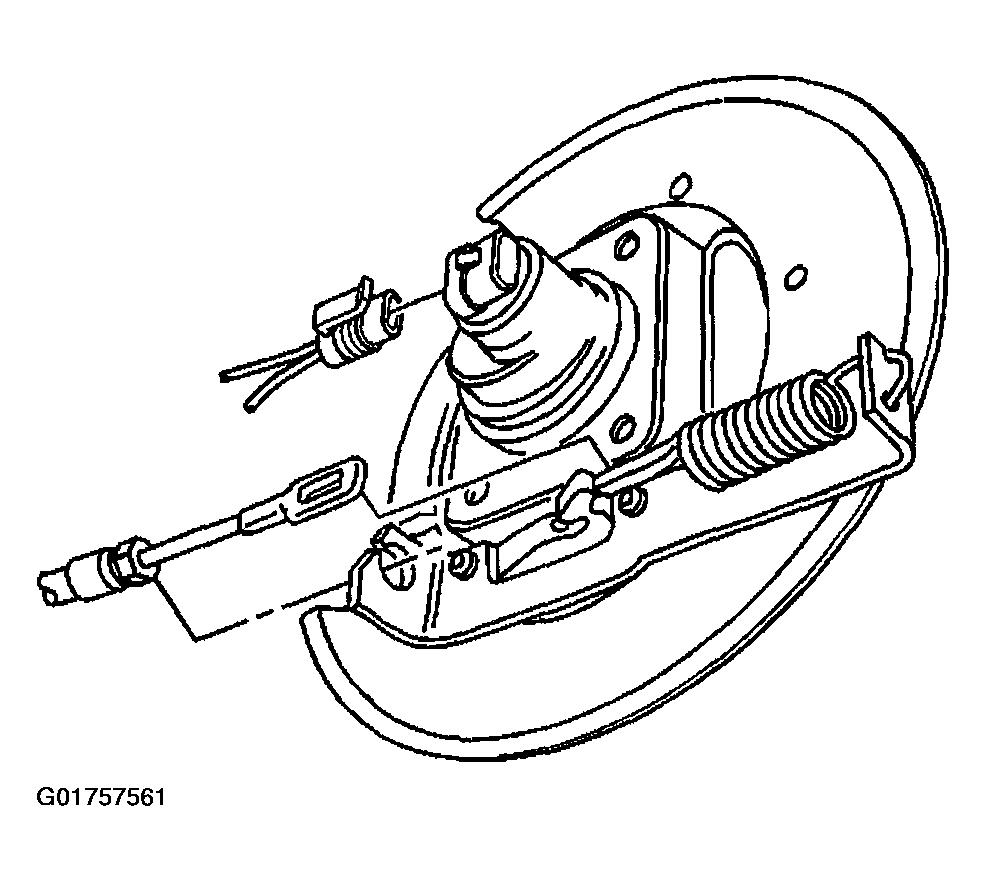

    Fig 2: Connect Electrical Connector To Rear Wheel Speed Sensor
    G01757561Courtesy of GENERAL MOTORS CORP.
