Installation Procedure

  1. Install the BPMV bracket (4) to the wheel house.
    NOTE: Refer to FASTENER NOTICE
  2. Install the 3 BPMV bracket nuts (1,2,3) to the studs on the BPMV bracket (4).

    Tighten

    Tighten the 3 BPMV bracket nuts to 10 N.m (7 lb ft).

  3. Install the BPMV and EBCM as an assembly to the BPMV bracket. Refer to Brake Pressure Modulator Valve (BPMV) Replacement .
  4. Turn the ignition switch to the ON position.
  5. Perform the Diagnostic System Check - ABS .

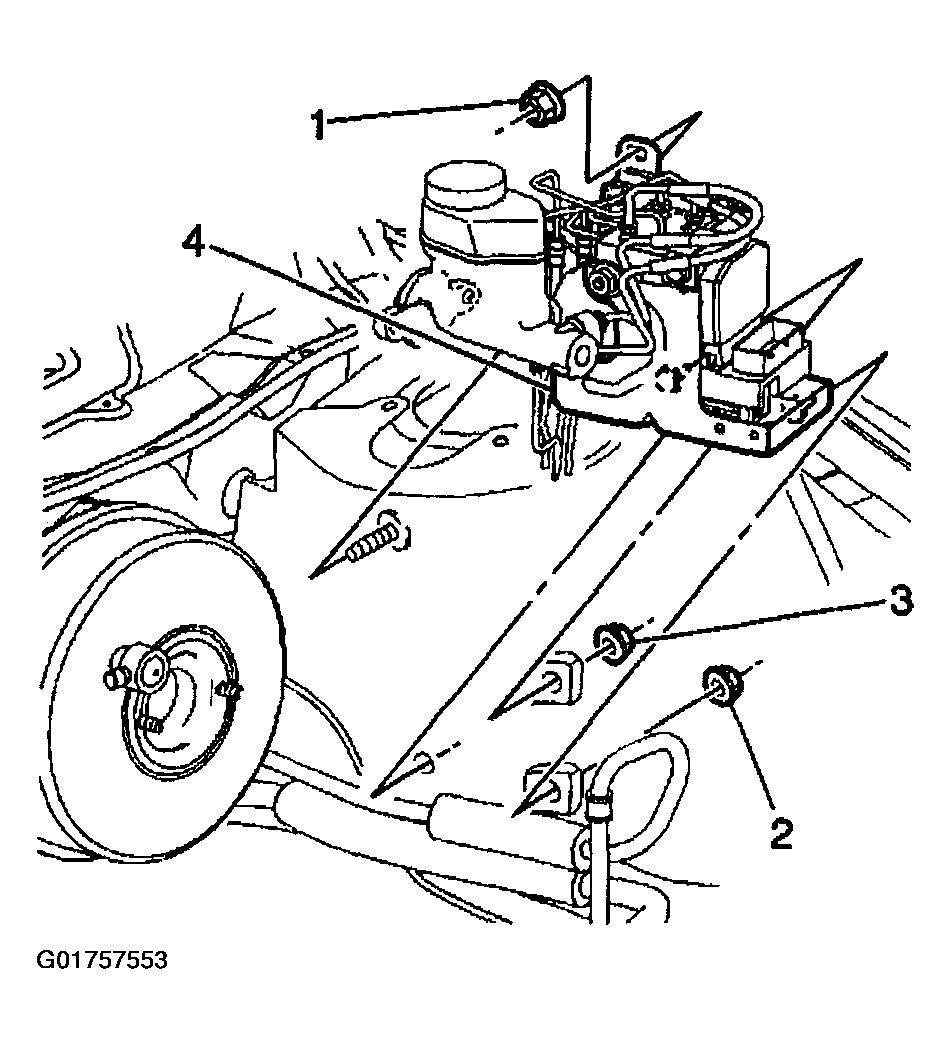

    Fig 1: Install BPMV Bracket Nuts To Studs On BPMV Bracket
    G01757553Courtesy of GENERAL MOTORS CORP.
