Removal Procedure

  1. Position the window half way down.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the front door inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  5. Remove the window to window regulator bolts (1,2).

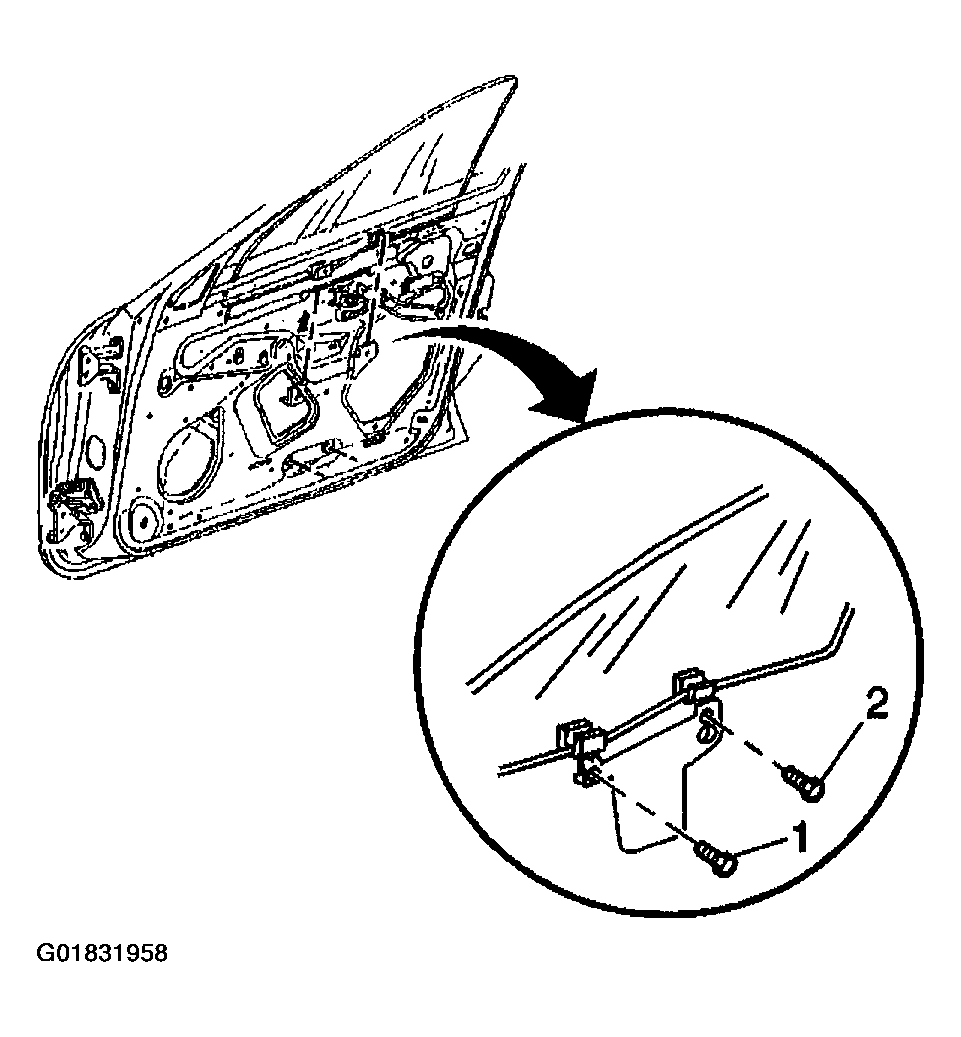

    Fig 1: Window To Window Regulator Bolts
    G01831958Courtesy of GENERAL MOTORS CORP.
  6. Rotate the window and remove the front door window from the front door.

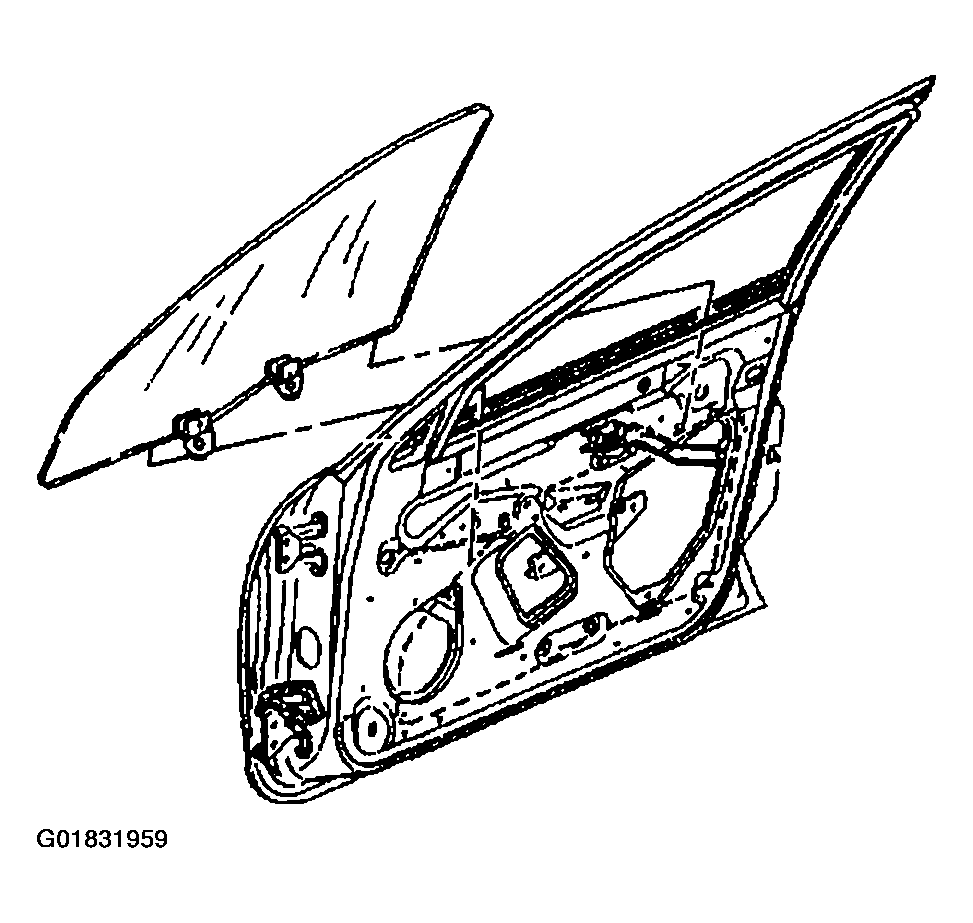

    Fig 2: Removing Front Door Window From Front Door
    G01831959Courtesy of GENERAL MOTORS CORP.
