Installation Procedure

  1. Connect the electrical door lock connector to the inside door handle bezel (front door only).
  2. Align the inside door handle bezel to the door trim panel.

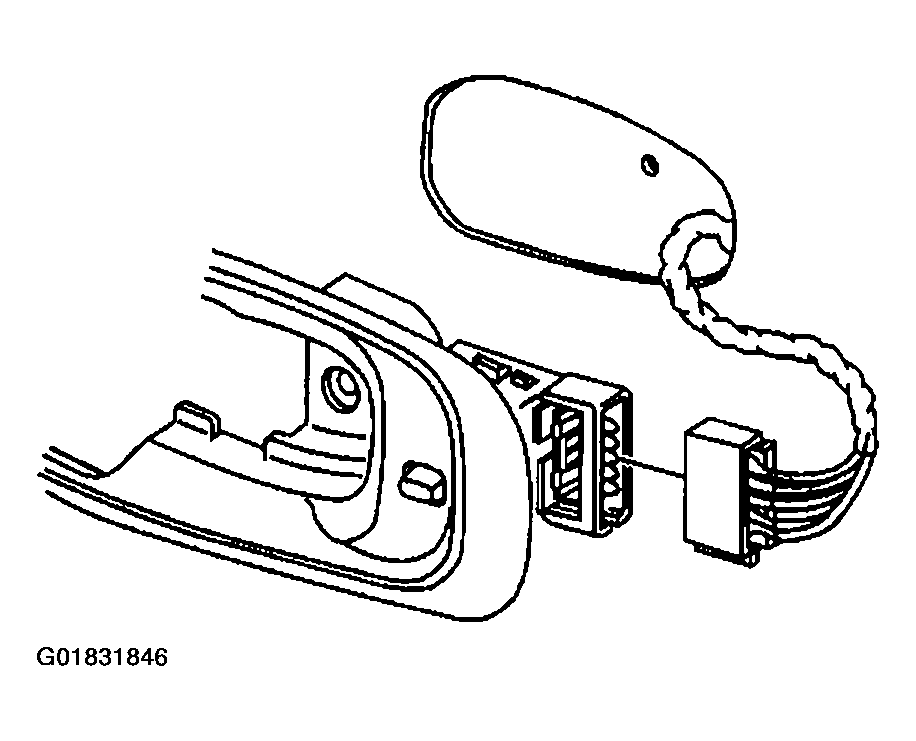

    Fig 1: Installing Inside Door Handle Bezel Electrical Door Lock Connector
    G01831846Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screw which secures the inside door handle bezel to the door.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

  4. Align the close-out plate to the inside door handle bezel.
  5. Apply pressure to the close-out plate until fully seated.
    Fig 2: Installing Inside Door Handle Bezel & Screw
    G01831847Courtesy of GENERAL MOTORS CORP.
