Theft Deterrent System Component Views

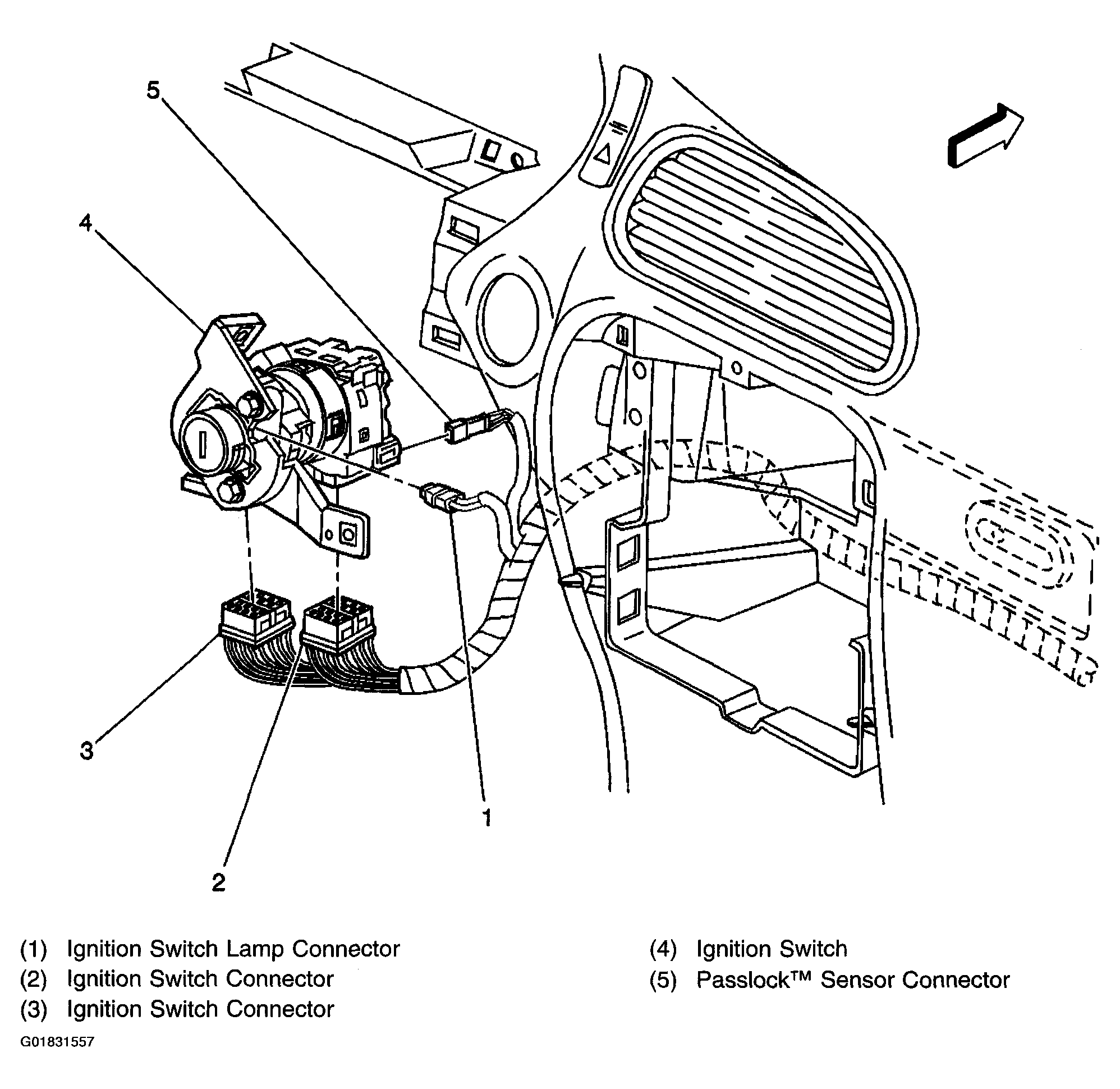

Fig 1: Right of Instrument Panel Cluster Component View

G01831557

Courtesy of GENERAL MOTORS CORP.
