Transaxle Mount: Installation

  1. Install the transaxle mount to the transaxle mount frame bracket.

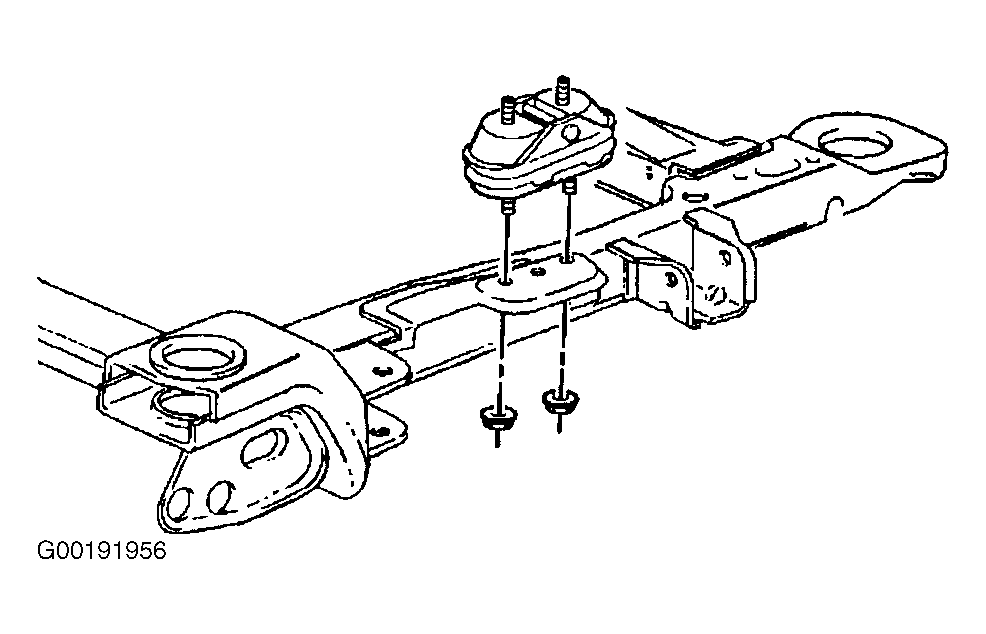

  2. Install the transaxle mount lower nuts to the transaxle mount frame bracket. See Figure . Tighten the nuts to specification. See TORQUE SPECIFICATIONS  .
  3. Install the transaxle mount bracket to the transaxle. See TRANSAXLE MOUNT BRACKET  .
