Installation Procedure

  1. Lubricate the tilt spring (2) with synthetic grease.
  2. Install the spring guide (1) into the tilt spring (2).
    Fig 1: Lubricate Tilt Spring And Installing Spring Guide Into Tilt Spring
    G01758482Courtesy of GENERAL MOTORS CORP.
  3. Install the tilt spring (1).
    1. 3.1. Install the tilt spring (1) to the post on the steering column support assembly (2).
    2. 3.2. Secure the tilt spring (1) with locking pliers.
  4. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle

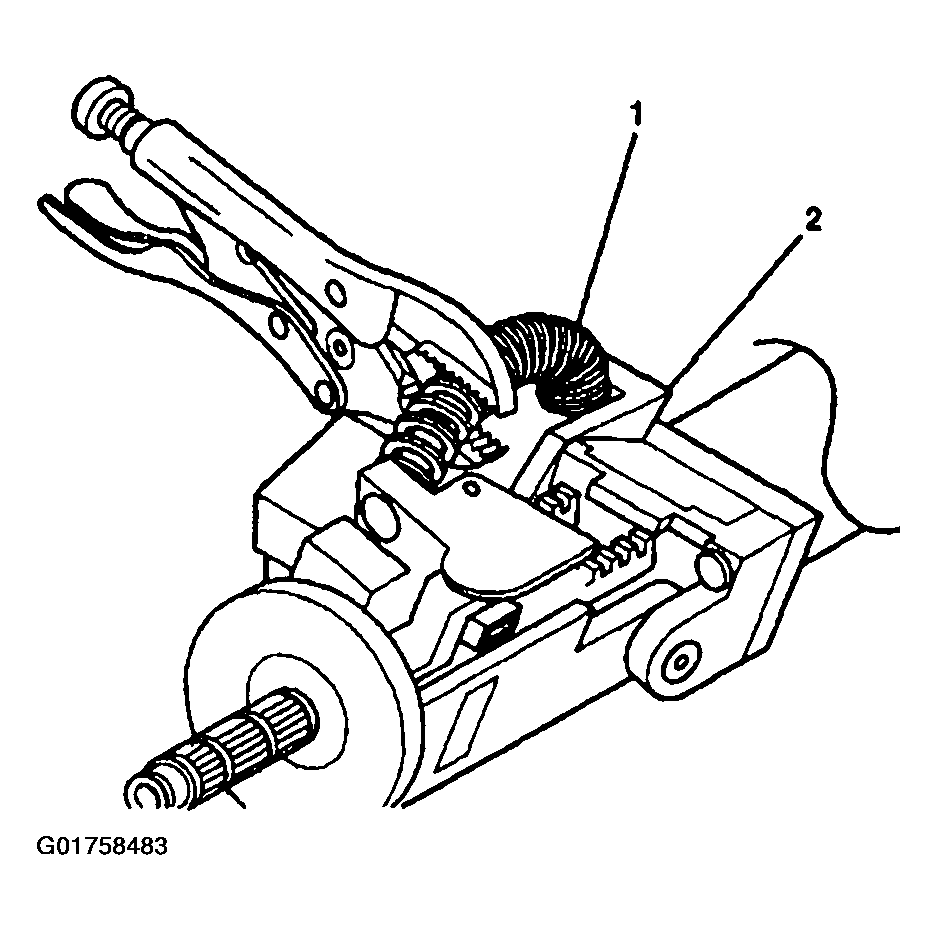

    Fig 2: Installing Tilt Spring To Post On Steering Column Support Assembly
    G01758483Courtesy of GENERAL MOTORS CORP.
