Installation Procedure

  1. Route the SIR connector through the steering wheel.
  2. Align the scribe mark on the steering wheel with the slash mark on the steering shaft.
  3. Install the steering wheel.
    NOTE: Refer to FASTENER NOTICE
  4. Install the steering shaft nut.

    Tighten

    Tighten the nut to 41 N.m (30 lb ft).

  5. Install the inflatable restraint steering wheel module. Refer to AIR BAG MODULES in SIR.
  6. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.
  7. Inspect the operation of the following components:
    • The horn
    • The steering wheel
    • The steering wheel controls

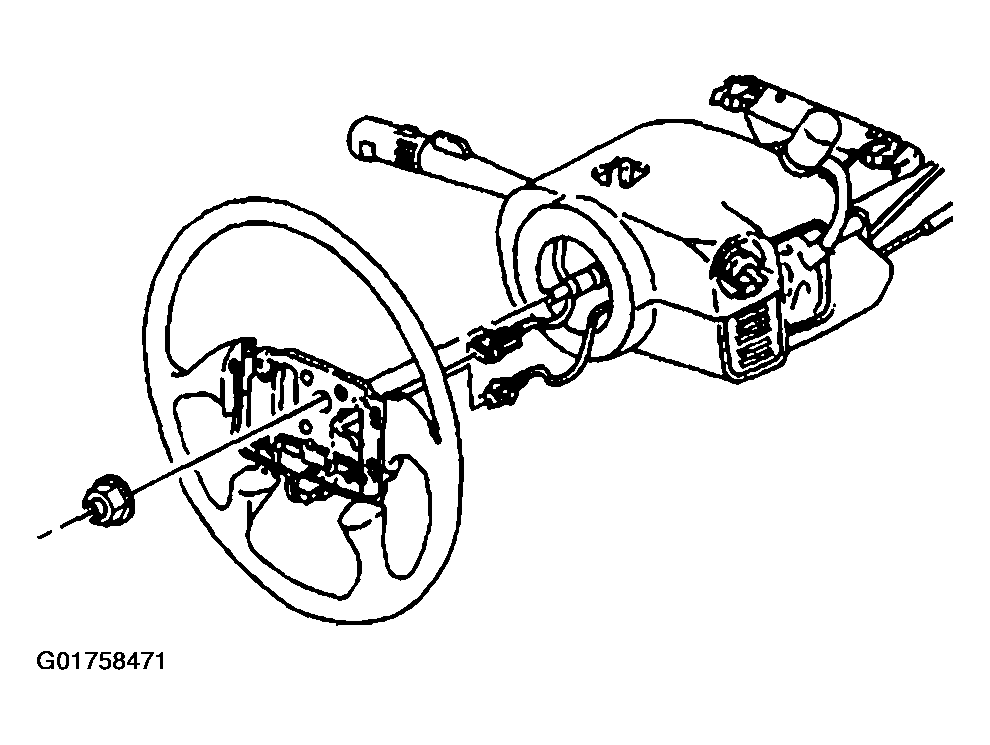

      Fig 1: Installing Inflatable Restraint Steering Wheel Module
      G01758471Courtesy of GENERAL MOTORS CORP.
