Installation Procedure

NOTE: Refer to FASTENER NOTICE
  1. Position the intermediate steering shaft into place.

    Install the upper pinch bolt from the intermediate steering shaft at the steering column.

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

    Fig 1: Installing Upper Pinch Bolt
    G01758477Courtesy of GENERAL MOTORS CORP.
  2. Install the intermediate steering shaft seal onto the steering column.
  3. Raise and support the vehicle.
  4. Install the intermediate steering shaft (1) to the stub shaft (2) on the power steering gear.
  5. Install the lower pinch bolt of the intermediate steering shaft at the stub shaft of the power steering gear.

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

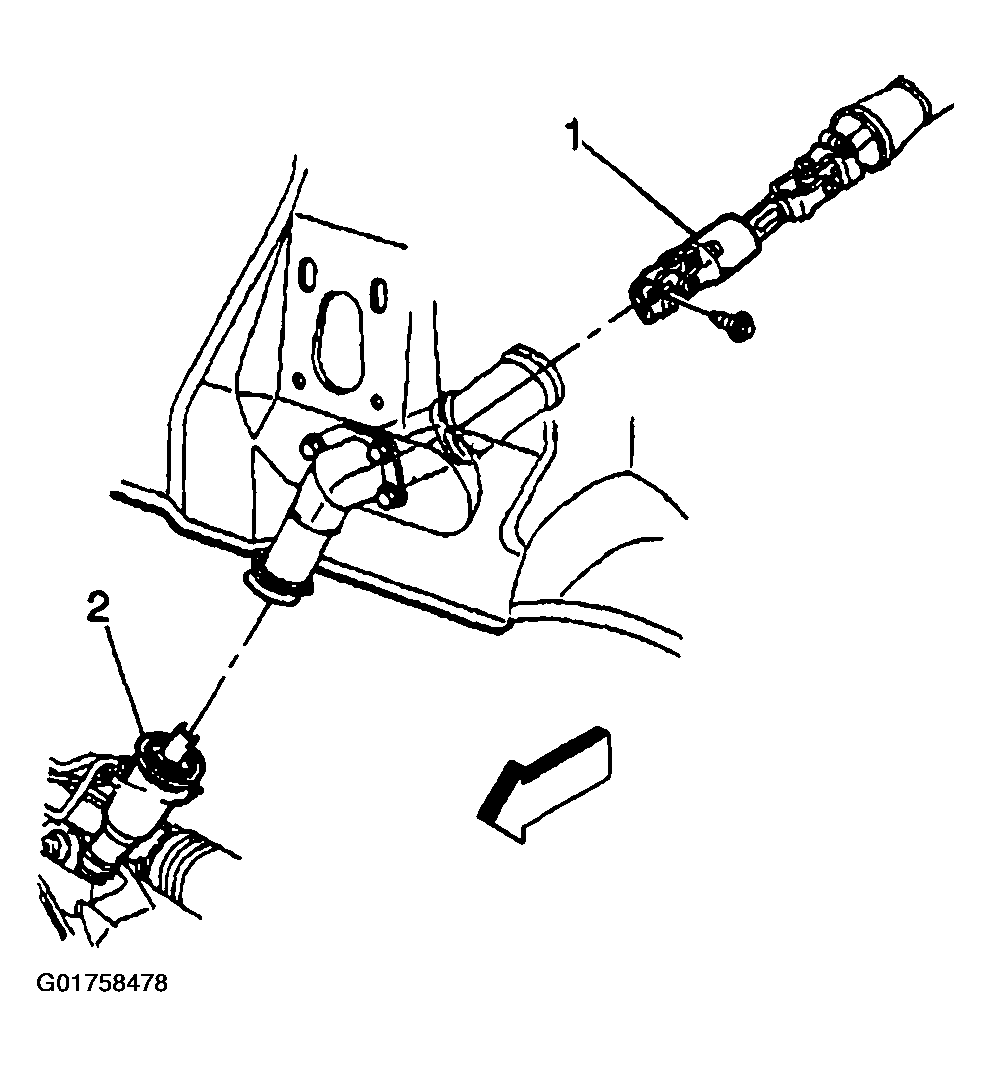

    Fig 2: Install Intermediate Steering Shaft To Stub Shaft
    G01758478Courtesy of GENERAL MOTORS CORP.
  6. Install the intermediate steering shaft seal onto the power steering gear.
  7. Lower the vehicle.
  8. Install the left IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  9. Perform the steering angle sensor centering procedure. Refer to STEERING ANGLE SENSOR CENTERING PROCEDURE in Anti-lock Brake System.

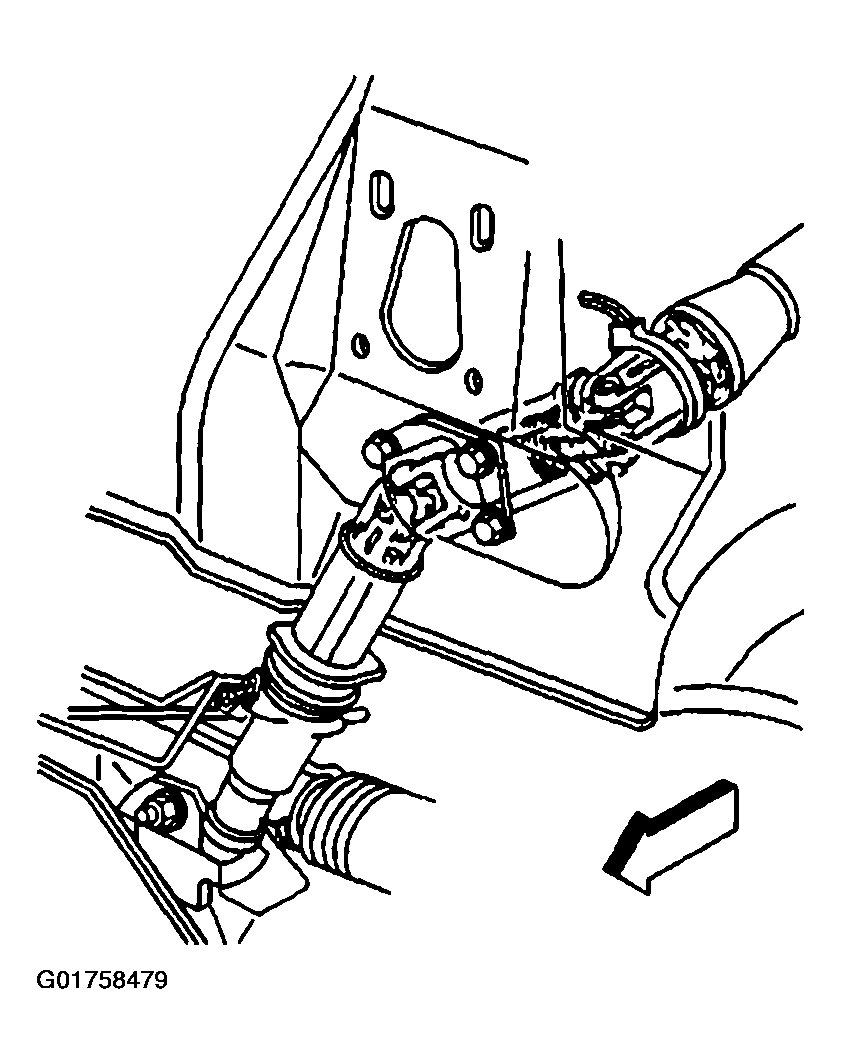

    Fig 3: Installing Intermediate Steering Shaft Seal Onto Power Steering Gear
    G01758479Courtesy of GENERAL MOTORS CORP.
