Looseness In Steering Column

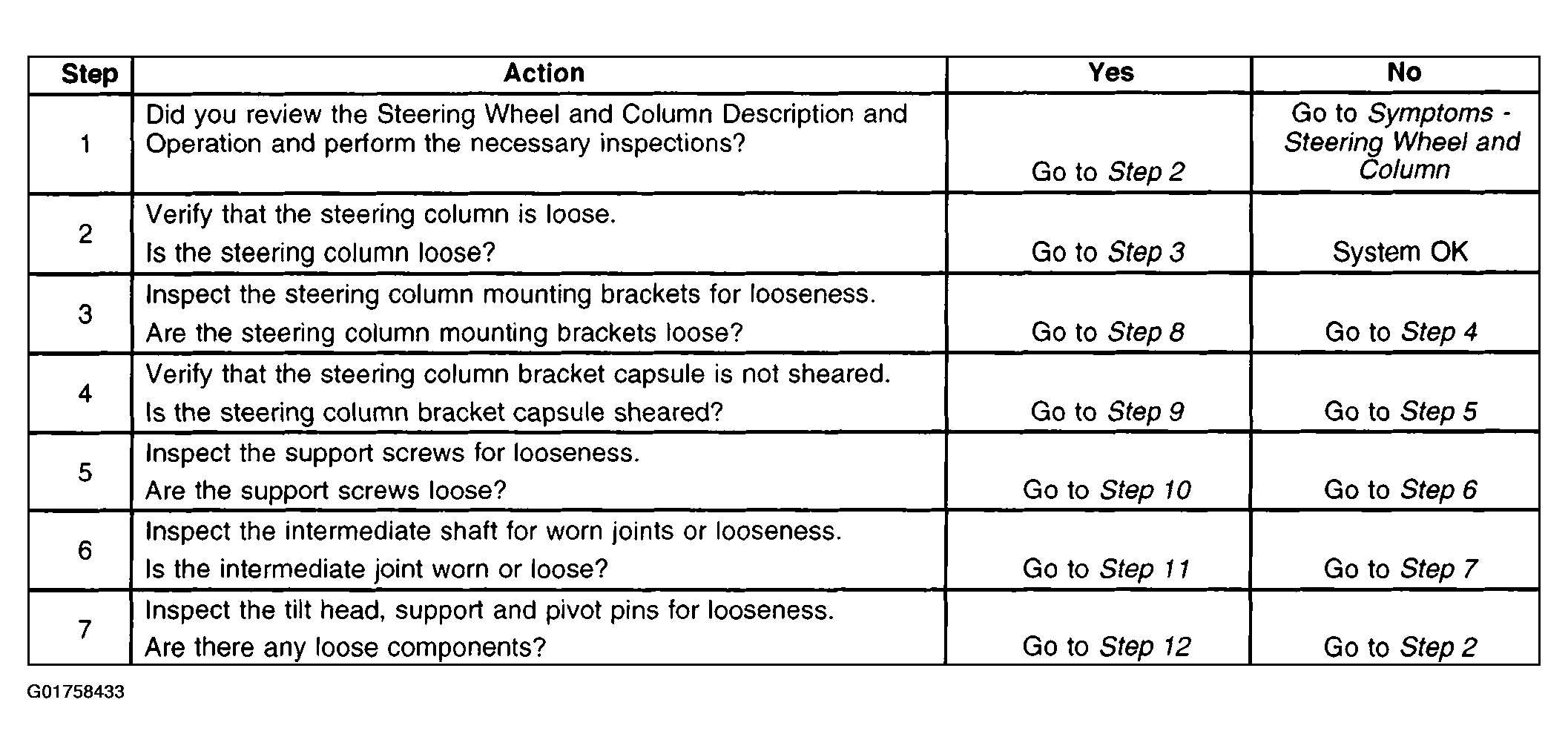

Fig 1: Looseness in Steering Column (1 Of 2)

G01758433

Courtesy of GENERAL MOTORS CORP.

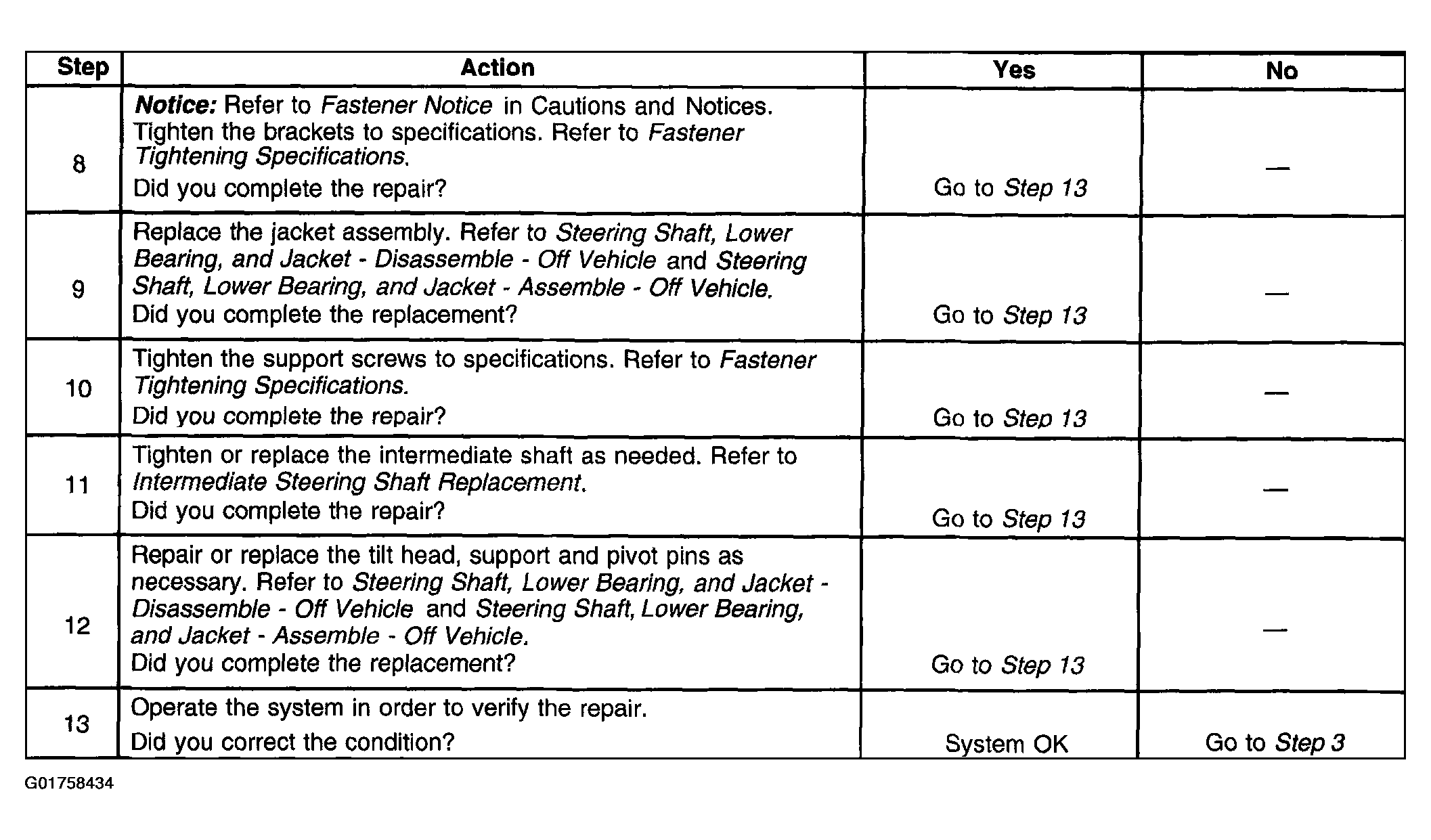

Fig 2: Looseness in Steering Column (2 Of 2)

G01758434

Courtesy of GENERAL MOTORS CORP.
