Power Steering Pump Disassembled View

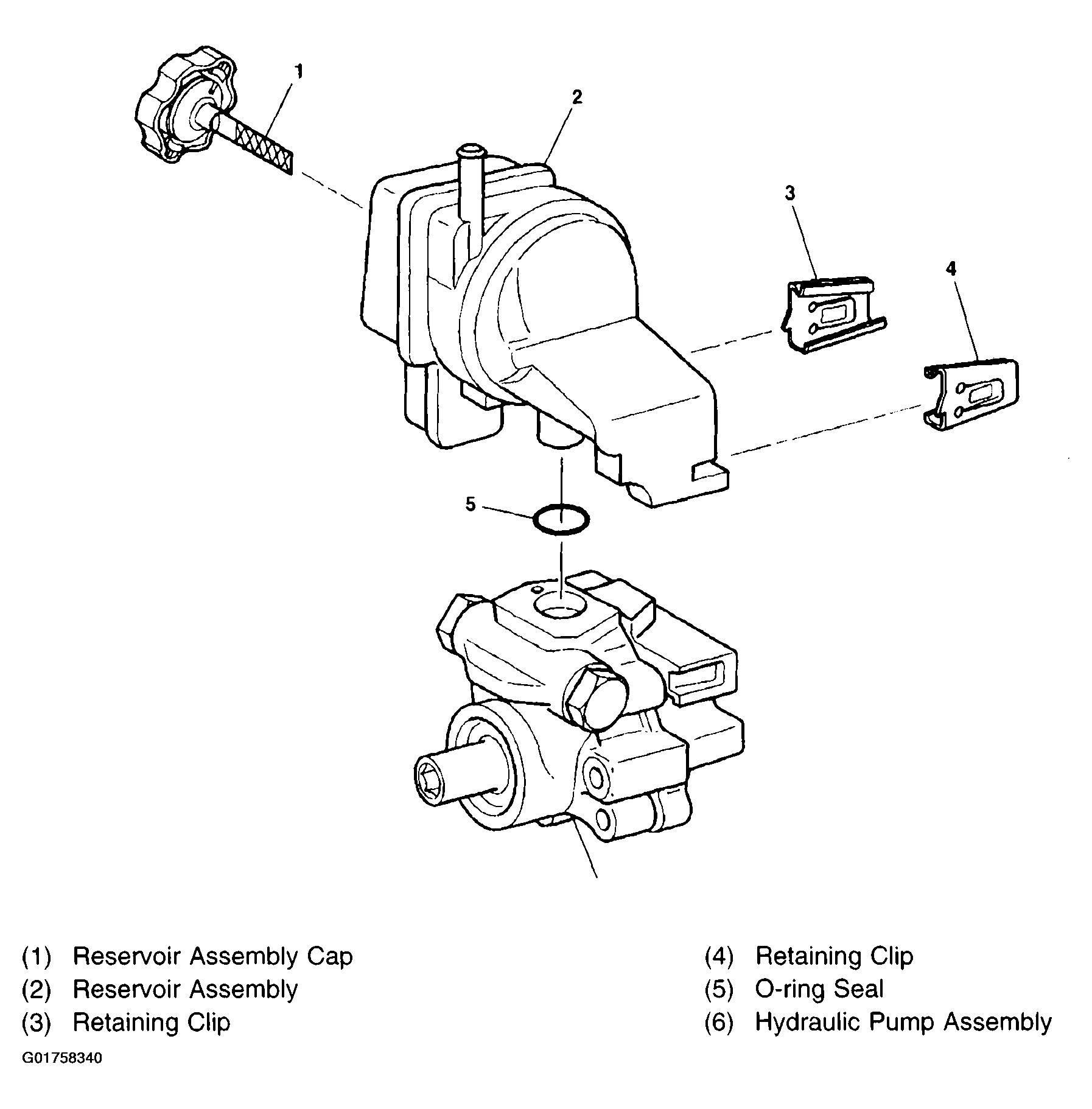

Fig 1: Power Steering Pump Components

G01758340

Courtesy of GENERAL MOTORS CORP.
