Component Locator
>>
Seat Belt Component Views
Seat Belt Component Views

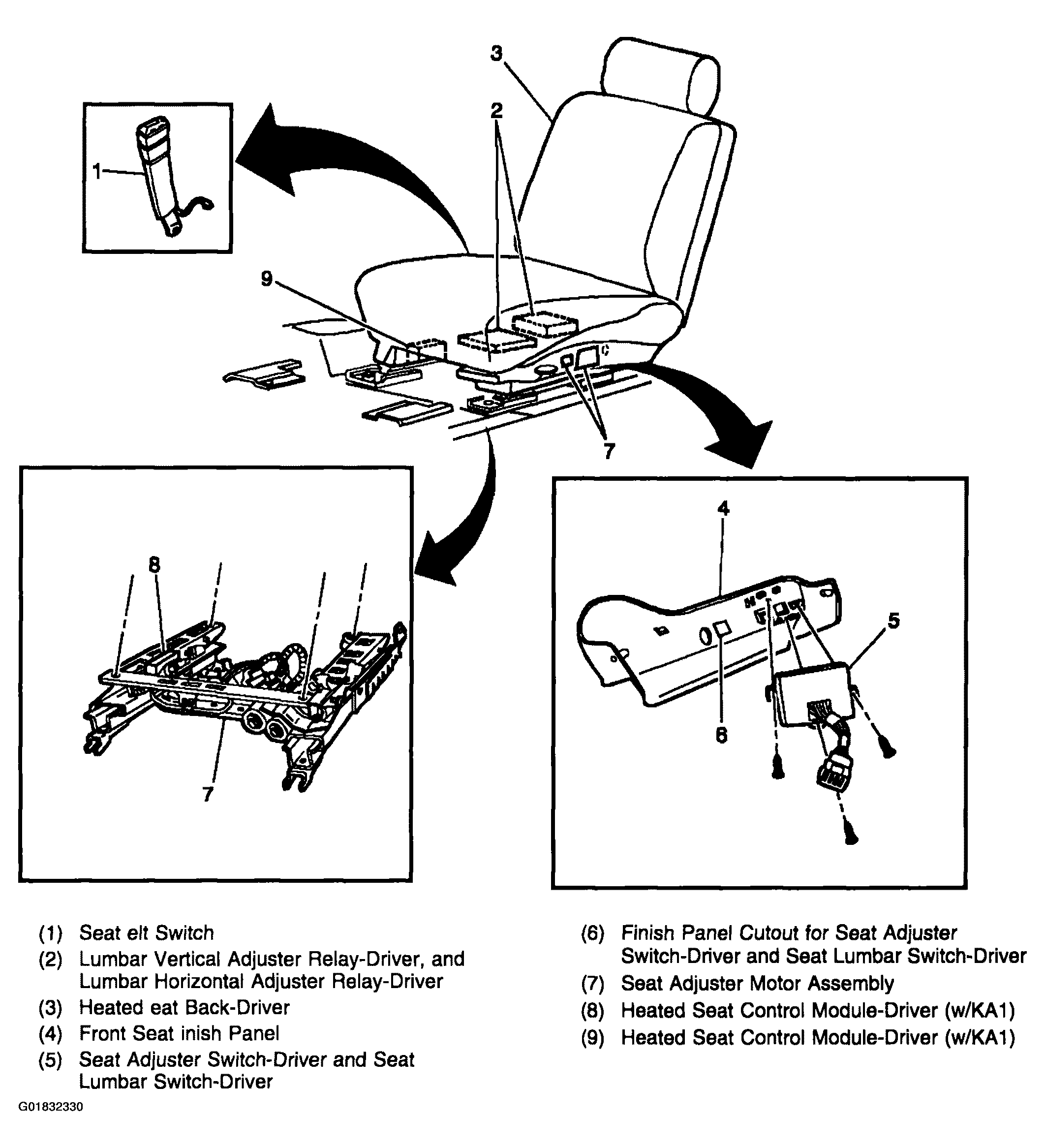

Fig 1: Power Seat Subsystem
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
