Home >> Oldsmobile >> 2002 >> Intrigue GL >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Sunroof Limit Switch Connector End View

Sunroof Limit Switch Connector End View

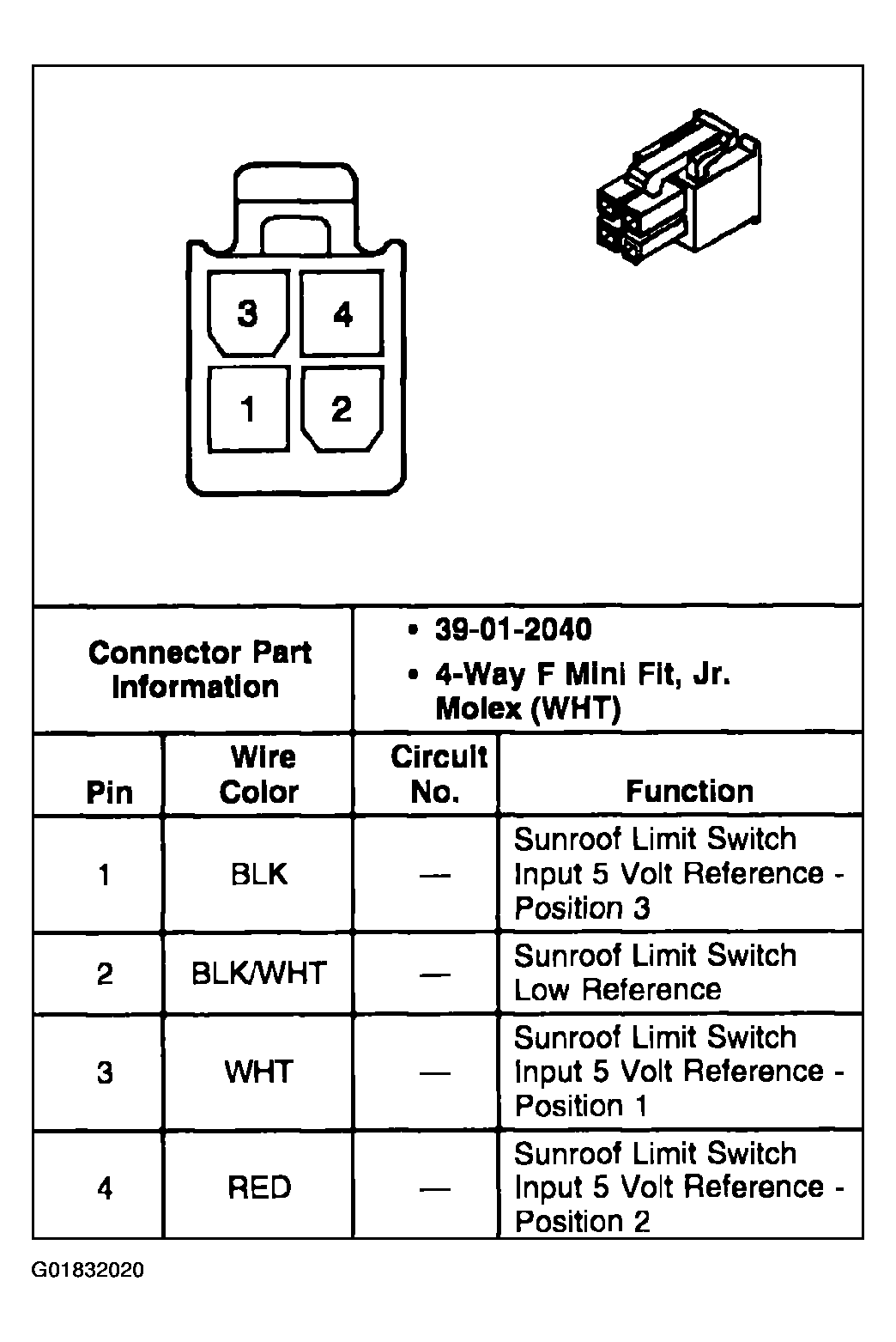

Fig 1: Sunroof Limit Switch

G01832020

Courtesy of GENERAL MOTORS CORP.
