Ambient Air Temperature Sensor Connector End View

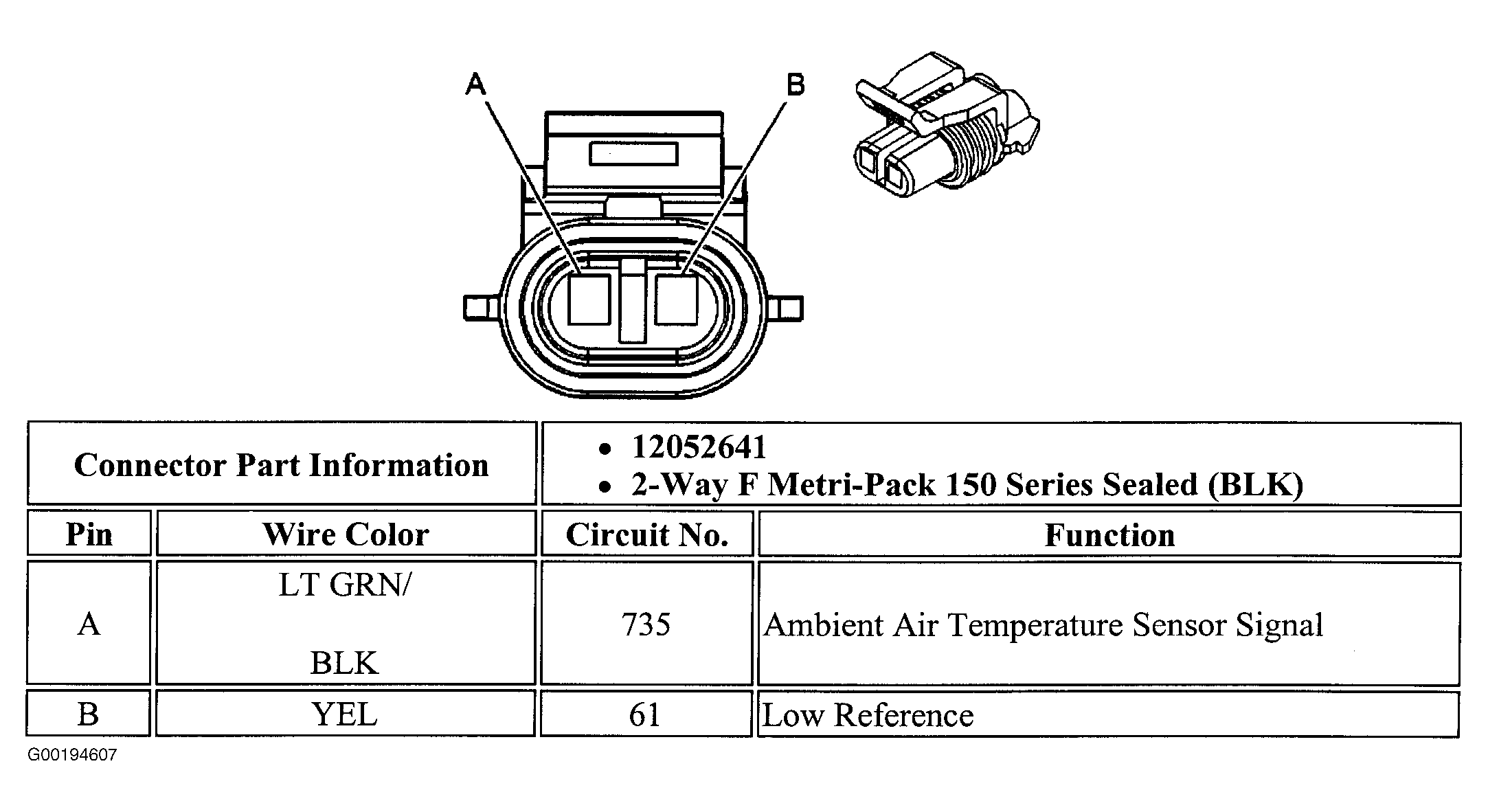

Fig 1: Ambient Air Temperature Sensor

G00194607

Courtesy of GENERAL MOTORS CORP.
