Removal Procedure

  1. Remove the instrument panel (I/P) steering column opening filler. Refer to Steering Column Filler Replacement .
  2. Remove the screws from the switch bezel.
  3. Pull the switch bezel from the I/P trim pad.
  4. Disconnect the electrical connectors.
  5. Disengage the switch retainers. Remove the I/P lamp dimmer switch, the fog lamp switch, and the rear compartment lid release switch from the switch bezel, as required.

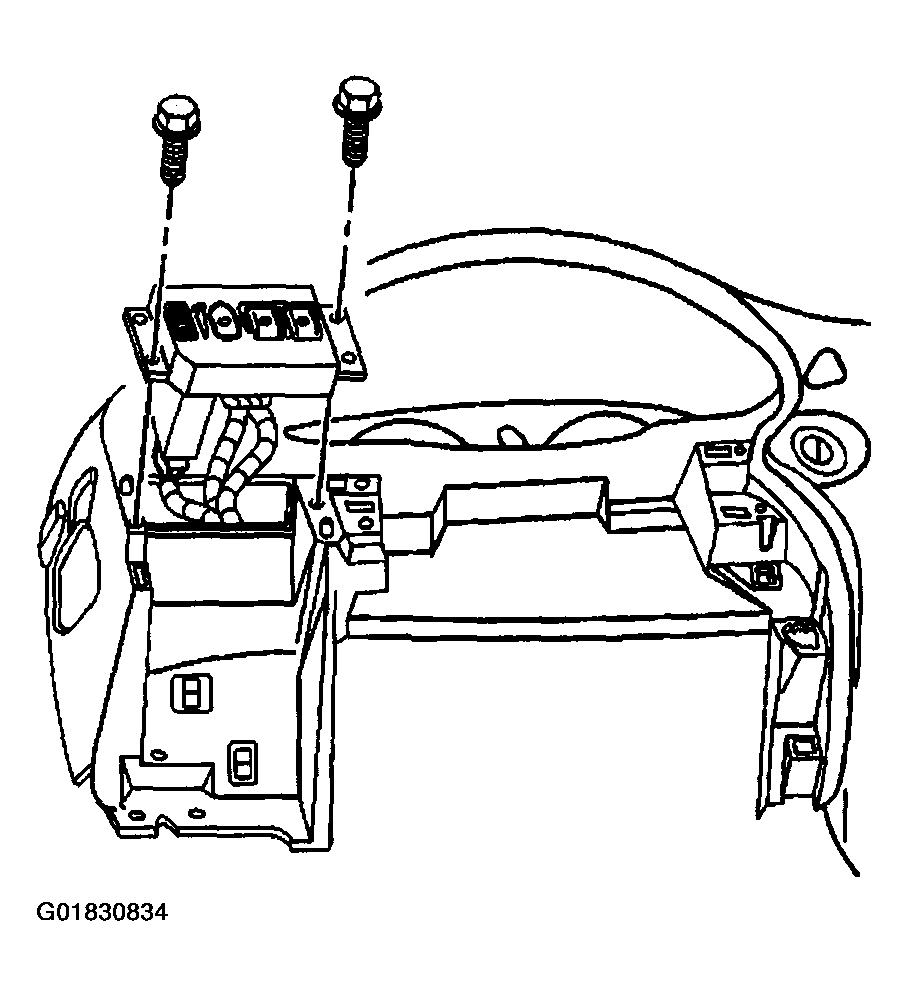

    Fig 1: Removing (I/P) Steering Column Filler, Electrical Connectors & Screws
    G01830834Courtesy of GENERAL MOTORS CORP.
